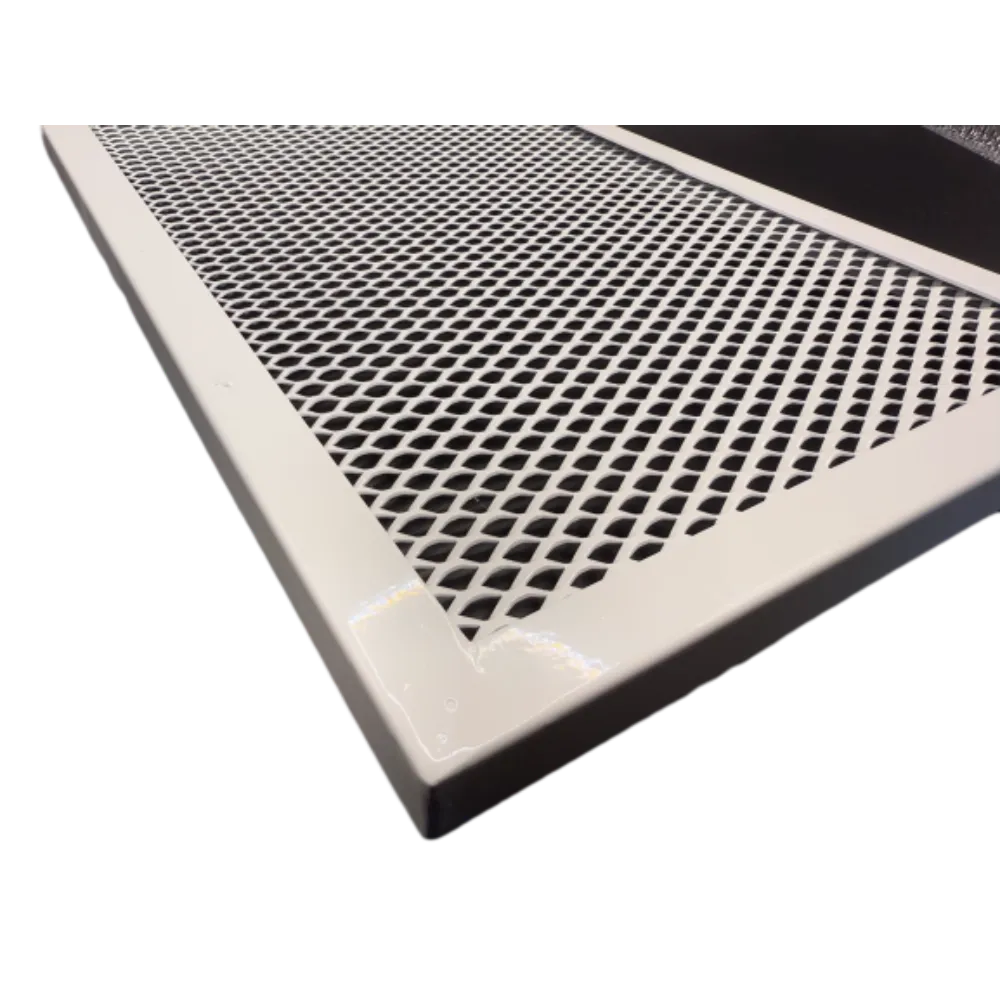

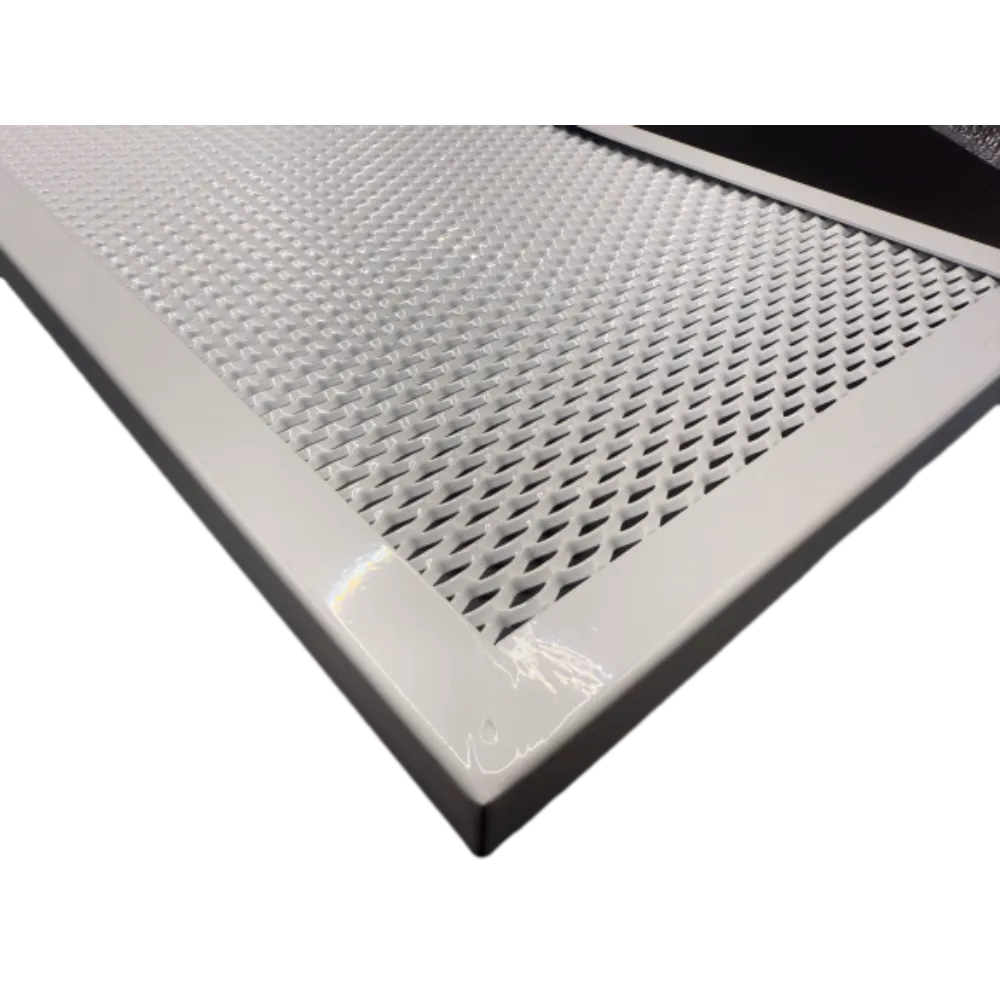

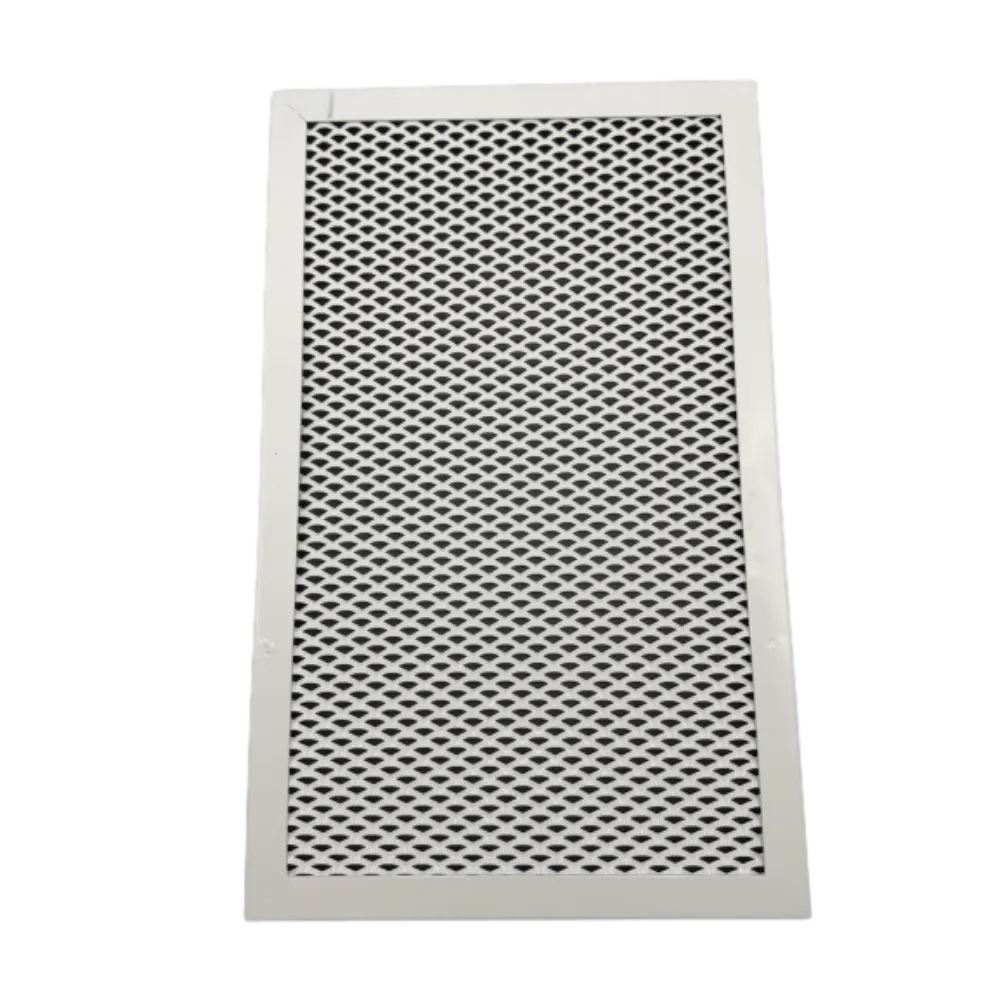

Expanded metal is a versatile and durable material produced from a single sheet of metal, uniformly slit and stretched, forming a diamond-shaped opening. This manufacturing process creates a mesh that is lighter per square foot than a solid sheet and allows for the passage of light, air, and fluids. Widely utilized across various industrial sectors, expanded metal offers an optimal strength-to-weight ratio, excellent structural integrity, and superior performance in demanding environments. It is a cost-effective alternative to woven wire mesh or perforated metal, providing enhanced security, superior ventilation, and an anti-slip surface for numerous applications.
The unique characteristics of expanded metal make it indispensable in applications ranging from filtration and architectural facades to safety barriers and structural components. Its inherent rigidity, resistance to corrosion when properly treated, and ability to be manufactured from various metals like carbon steel, stainless steel, aluminum, and galvanized steel, underscore its adaptability and broad utility in modern industrial designs and infrastructure projects.
The production of expanded metal involves a precise cold-forming process that transforms solid metal sheets into a grid pattern without material loss. This method maintains the integrity of the material while creating a robust, unitary structure.
This meticulous process ensures that the resulting expanded metal mesh exhibits consistent quality, high structural integrity, and optimal performance across its diverse target industries, including petrochemical, metallurgy, water supply & drainage, construction, and automotive. Its inherent advantages, such as energy saving through improved ventilation and superior corrosion resistance with appropriate treatments, make it a preferred choice for critical applications.
Understanding the technical parameters is crucial when you buy expanded metal to ensure it meets specific application requirements. These specifications define the mesh characteristics and performance.
| Parameter | Description | Typical Range / Unit |
|---|---|---|
| Long Way of Diamond (LWD) | The distance from a point on a bond to a point on an adjacent bond, measured across the longer dimension of the diamond opening. | 12.7 mm to 100 mm (0.5" to 4") |
| Short Way of Diamond (SWD) | The distance from a point on a bond to a point on an adjacent bond, measured across the shorter dimension of the diamond opening. | 6.35 mm to 50 mm (0.25" to 2") |
| Strand Width | The amount of metal in each individual strand of the mesh. Directly impacts strength and open area. | 0.5 mm to 8 mm (0.02" to 0.315") |
| Sheet Thickness / Gauge | The original thickness of the metal sheet before expansion. Determines the overall rigidity. | 0.3 mm to 6 mm (0.012" to 0.236") |
| Open Area Percentage | The ratio of open space to the total surface area, expressed as a percentage. Influences airflow, light transmission, and filtration. | 25% to 80% |
| Material | The base metal used for manufacturing. | Carbon Steel, Stainless Steel (304, 316), Aluminum, Galvanized Steel, Copper, Titanium |
| Finish | Surface treatment applied post-expansion. | Mill Finish, Galvanized, Powder Coated, Anodized, PVC Coated |
| Type | Standard (Raised), Flattened (Smooth), Hexagonal, Triangular, Micro-mesh. | Standard, Flattened |
When selecting the right type expanded metal for a project, these parameters must be carefully evaluated to ensure optimal performance, structural integrity, and cost-efficiency.
Selecting a reliable vendor for expanded metal is crucial for ensuring product quality, timely delivery, and competitive pricing. Key differentiators among suppliers often include their manufacturing capabilities, material sourcing, quality control protocols, and customer service.
| Feature | Tier-1 Manufacturer (e.g., CC Metal Mesh) | Standard Supplier |
|---|---|---|
| Quality Certifications | ISO 9001:2015 certified, adherence to ASTM, EN, JIS standards. Full material traceability. | Basic quality checks, possibly local certifications. Limited traceability. |
| Material Sourcing | Premium, certified raw materials from established mills. Diverse alloy options. | Standard materials, potentially with less stringent quality control. Limited specialty alloys. |
| Customization Capabilities | Extensive capabilities for custom patterns (e.g., Triangular Expanded Metal), dimensions, finishes, and fabrication services (bending, welding, forming). | Limited customization, primarily standard sizes and common patterns. |
| Lead Time & Fulfillment | Optimized production, robust supply chain, and efficient logistics for reliable and faster lead times. | Variable lead times, potential for delays due to limited stock or production capacity. |
| Technical Support | Dedicated engineering support, design consultation, and post-sales service. | Basic customer service, limited technical expertise. |
| Pricing Model | Transparent pricing, often value-based for superior quality and service. | Potentially lower upfront cost, but higher risk of quality issues or project delays. |
Modern industrial applications often require tailor-made solutions. Leading manufacturers offer comprehensive customization options for expanded metal, enabling clients to achieve precise functional and aesthetic objectives. This includes:
Collaborating with a manufacturer capable of delivering customized expanded metal mesh solutions ensures that the final product seamlessly integrates into complex projects, optimizing performance and aesthetic appeal.
Client: Major Offshore Energy Producer
Challenge: The client required a durable, anti-slip, and corrosion-resistant material for walkways, stair treads, and drainage grates on an offshore oil platform. Traditional solid metal grates proved too heavy and prone to accumulation of ice and debris, posing safety risks and increasing maintenance.
Solution: High-grade 316L Stainless Steel expanded metal with a standard (raised) diamond pattern was specified. The material's unitary construction ensured high strength, while its open mesh prevented the buildup of water, ice, and oil, improving safety and drainage. The 316L alloy provided exceptional resistance to saltwater corrosion.
Outcome: The installation significantly reduced slip-and-fall incidents, decreased maintenance requirements due to improved self-cleaning, and offered a lighter solution, reducing the overall structural load on the platform. The project has demonstrated outstanding longevity, with the expanded metal elements performing reliably for over a decade in extreme marine conditions.
Client: Urban Development Group
Challenge: Design an aesthetic, functional, and sustainable facade for a new commercial office building that provides sun shading, reduces heat gain, and allows natural light and air circulation, while maintaining a contemporary appearance.
Solution: Flattened Aluminum expanded metal mesh, powder-coated in a custom bronze finish, was selected for the building's exterior cladding and sunscreens. The specific LWD and SWD were chosen to achieve an optimal balance of light diffusion and visual transparency from the interior, while presenting a striking, textured exterior. The aluminum material provided lightweight installation and excellent corrosion resistance.
Outcome: The facade successfully met both the aesthetic and performance objectives. It significantly reduced solar heat gain, contributing to lower HVAC energy consumption (estimated 15% reduction), while providing an abundance of natural light within the offices. The unique pattern of the expanded metal mesh created a dynamic visual effect, earning the building an architectural design award.
Q: What is the primary difference between standard and flattened expanded metal?
A: Standard expanded metal (raised) retains the angles created during the expansion process, resulting in a textured, non-slip surface. Flattened expanded metal is cold-rolled after expansion, flattening the strands and bonds to create a smooth, level surface. The flattening process reduces the original sheet thickness and can slightly reduce its rigidity.
Q: How do I calculate the open area percentage for expanded metal?
A: The open area percentage is determined by the LWD, SWD, and strand width. While specific formulas exist, reputable manufacturers typically provide this data for their standard products. It's a critical parameter for applications requiring specific light, air, or fluid flow.
Q: Is expanded metal suitable for structural load-bearing applications?
A: Yes, depending on the material, gauge, and mesh configuration, expanded metal can be engineered for significant load-bearing applications. Its unitary construction provides superior strength and rigidity compared to woven mesh. For critical structural components, detailed engineering calculations and adherence to industry standards are essential.
Our standard lead time for in-stock expanded metal products is typically 3-5 business days for processing and shipment. For custom orders, including specialized materials, patterns, or finishing, lead times can range from 2-4 weeks, depending on complexity and current production schedules. We maintain a robust inventory of common materials and mesh configurations to facilitate rapid fulfillment for urgent requirements. Project-specific lead times will be provided with your quotation, and our logistics team ensures efficient and secure delivery worldwide.
We stand by the quality of our expanded metal products. All materials are manufactured under strict ISO 9001:2015 certified quality management systems. We offer a standard 1-year warranty against manufacturing defects from the date of purchase. This warranty covers material defects and workmanship but excludes damage resulting from improper installation, misuse, or acts of nature. Extended warranty options are available for specific project requirements, subject to negotiation and contractual agreement.
Our dedicated customer support team is available to assist you from initial inquiry through to post-installation. We offer:
Contact us via phone, email, or our website for unparalleled service and expertise in expanded metal solutions.
