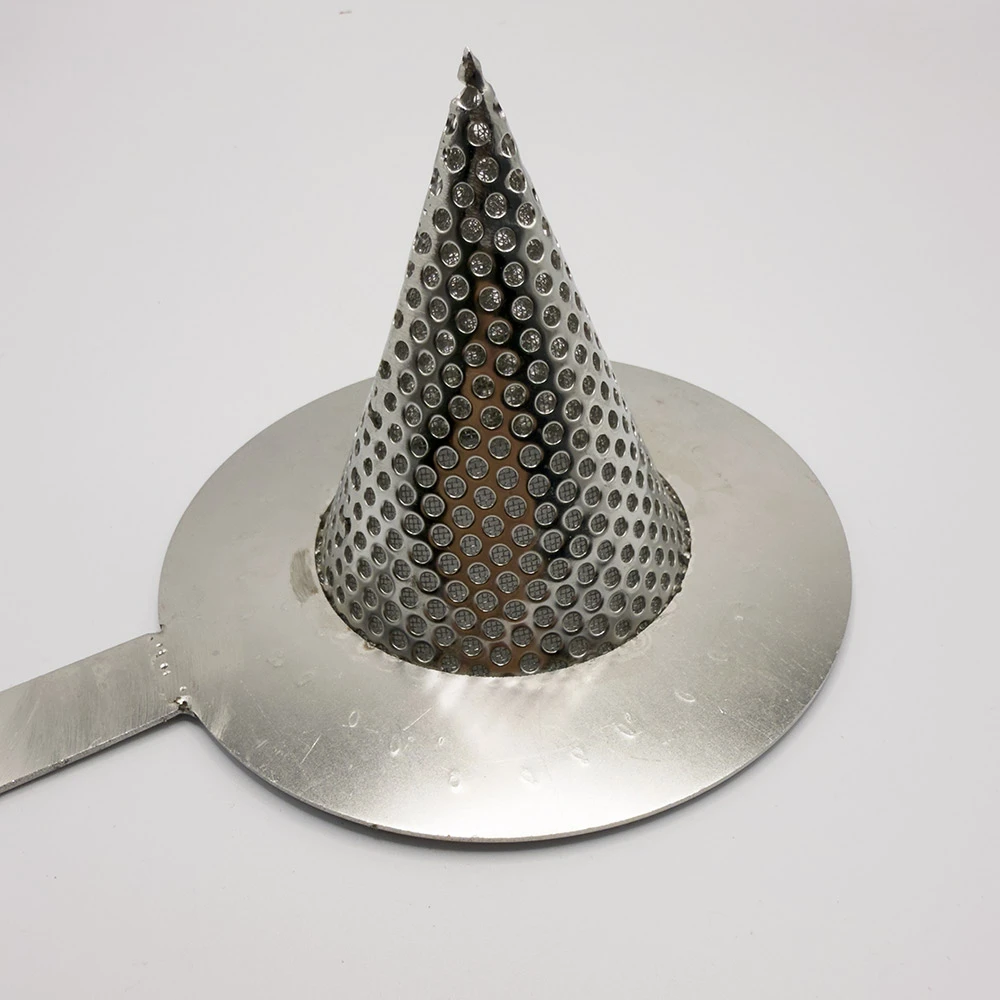

Efficient Cone Type Strainer for Temporary Pipeline Filtration

Understanding the Critical Role of the cone type strainer in Industrial Filtration

In industrial process systems, the integrity and operational longevity of critical equipment are paramount. The cone type strainer, often referred to as a temporary conical strainer, plays a pivotal role in initial system startup and commissioning phases. Its primary function is to protect sensitive downstream components such as pumps, valves, flow meters, and compressors from particulate matter, welding slag, pipe scale, and other debris that may be present within newly installed or modified piping systems. This proactive filtration prevents costly damage, reduces downtime, and ensures the smooth, efficient operation of complex industrial infrastructure across various sectors.

Designed for high efficiency and robust performance, this essential filtration component is engineered to fit directly between flanges, providing a large open area for fluid flow while capturing harmful contaminants. Its temporary nature underscores its strategic application during initial system flushing, after which it is typically removed, leaving the system clean and ready for continuous operation with permanent filtration solutions. The precision engineering and material selection for each cone type strainer are critical to its performance, ensuring compatibility with aggressive media and demanding operational conditions.

Industry Trends and Market Dynamics in Industrial Filtration

The global industrial filtration market is experiencing significant growth, driven by stringent environmental regulations, increasing automation in manufacturing, and the rising demand for high-purity process fluids. Reports from market intelligence firms like Grand View Research indicate the global industrial filters market size was valued at USD 33.1 billion in 2022 and is expected to grow at a compound annual growth rate (CAGR) of 6.3% from 2023 to 2030. This expansion directly impacts the demand for specialized components like the temporary cone strainer, which are indispensable during critical project phases.

Key trends include a shift towards more sustainable and corrosion-resistant materials, enhanced automation in filter cleaning and maintenance, and the integration of smart monitoring systems for real-time performance analytics. Furthermore, the increasing complexity of industrial processes, particularly in the petrochemical and pharmaceutical sectors, necessitates higher standards of filtration efficiency and reliability. Manufacturers of the temporary conical strainer are continuously innovating to meet these demands, offering bespoke solutions that integrate advanced materials and optimized designs to handle extreme temperatures, pressures, and corrosive environments.

The focus is not just on filtration efficiency but also on reducing total cost of ownership through extended service life and simplified maintenance procedures. The demand for products like the strainer cone type is also influenced by major infrastructure projects, including new pipeline constructions, power plant expansions, and upgrades to water treatment facilities, where initial system cleanliness is paramount.

Manufacturing Process and Quality Assurance for the Cone Type Strainer

The production of a high-performance cone type strainer involves a meticulous multi-stage process, integrating advanced engineering and stringent quality control protocols. The objective is to ensure each unit delivers optimal filtration efficiency, structural integrity, and durability under demanding industrial conditions.

1. Material Selection and Preparation:

The foundation of a robust temporary cone strainer is the selection of appropriate materials. Common choices include Stainless Steel (304, 304L, 316, 316L), Carbon Steel, Hastelloy, Monel, and Titanium, chosen based on compatibility with the process fluid's corrosivity, temperature, and pressure. Materials undergo rigorous incoming inspection to verify chemical composition (e.g., through XRF analysis) and mechanical properties, ensuring compliance with ASTM or EN standards. Mesh materials are selected for specific micron ratings and flow characteristics.

2. Forming and Shaping:

• Conical Body Formation: Flat metal sheets are precision cut using CNC laser or plasma cutting machines. These sheets are then rolled and formed into the desired conical shape using specialized hydraulic presses and rolling machines.

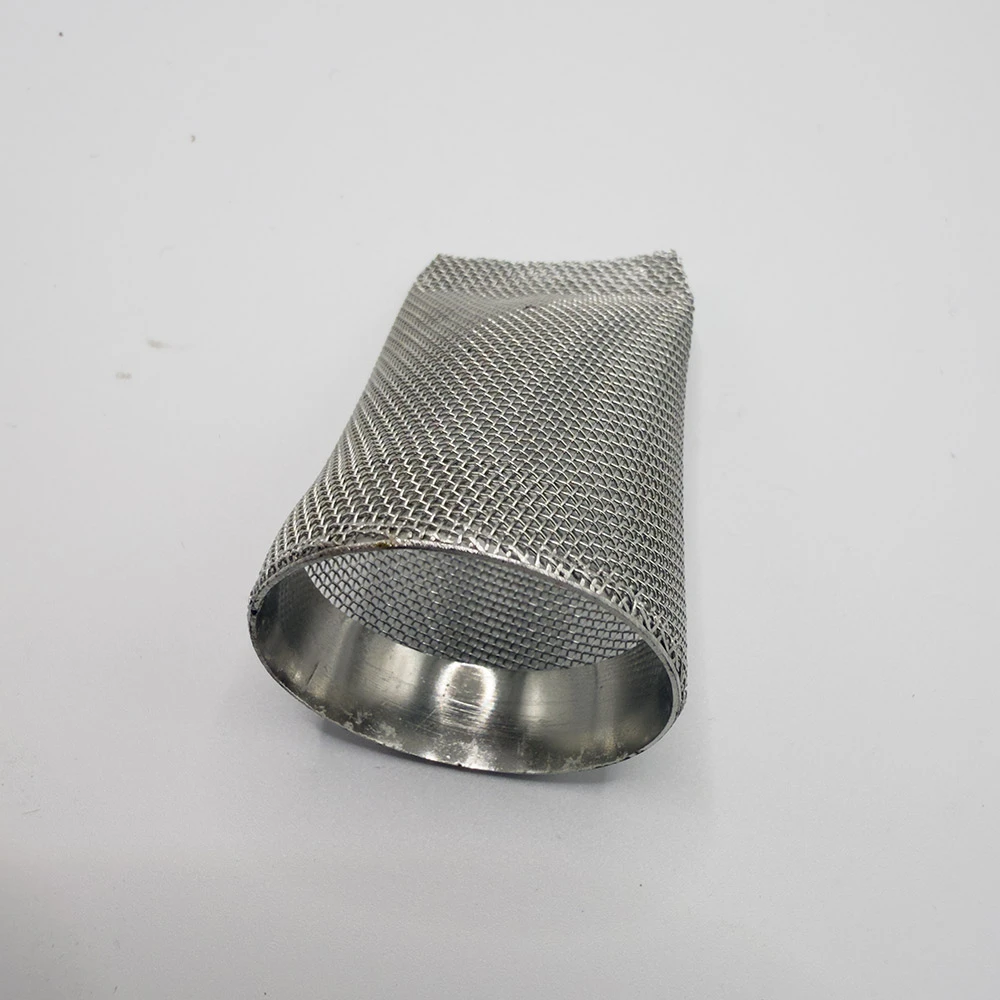

• Mesh Integration: The filter mesh, typically woven wire mesh or perforated sheet, is accurately cut and formed to fit the interior of the conical structure. The open area percentage of the mesh is a critical design parameter, often ranging from 40% to 60%, to balance filtration efficiency with pressure drop.

3. Welding and Assembly:

Components are joined using advanced welding techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding, ensuring robust, leak-free seams. For high-purity or corrosive applications, orbital welding may be employed to guarantee consistent, high-quality welds. All welding procedures adhere to ASME Boiler and Pressure Vessel Code Section IX, with certified welders performing the operations.

4. Machining and Finishing:

After welding, critical dimensions such as flange seating surfaces, overall length, and concentricity are verified. CNC machining ensures precise tolerances for secure installation between pipe flanges. Surface treatments, such as passivation for stainless steel (per ASTM A967) or acid pickling, are applied to enhance corrosion resistance and remove surface contaminants.

5. Testing and Quality Control:

• Visual Inspection: Thorough visual inspection for weld integrity, surface finish, and dimensional accuracy.
• Dimensional Verification: Using calipers, micrometers, and coordinate measuring machines (CMM) to ensure adherence to specified drawings and ANSI B16.5 or ASME B16.47 flange standards.
• Pressure Testing: Hydrostatic pressure testing (per ASME B31.3) to verify structural integrity under design pressure. Each unit is tested at 1.5 times the design pressure for a specified duration.
• Dye Penetrant Testing (DPT): Non-destructive testing (NDT) often performed on critical welds to detect surface-breaking defects.
• Material Traceability: Full material traceability, from raw material certificates to final product, is maintained as per ISO 9001 standards.

This rigorous process ensures a service life often exceeding initial commissioning phases, typically lasting for several years of intermittent use if stored correctly, while delivering advantages like energy saving through reduced pressure drop and superior corrosion resistance due to high-grade materials and finishing.

Technical Specifications and Design Parameters

The effectiveness of a cone type strainer hinges on its precise technical specifications, which must align with the operational demands of the system. Understanding these parameters is crucial for engineers and procurement specialists.

Key Parameters for Temporary Cone Strainers:

• Material Grades: Stainless steel (304, 304L, 316, 316L, 321), Duplex Stainless Steel (2205, 2507), Carbon Steel, Alloy Steels (Monel 400, Hastelloy C276, Inconel 600, Titanium). Selection depends on corrosion resistance, temperature, and mechanical strength requirements.

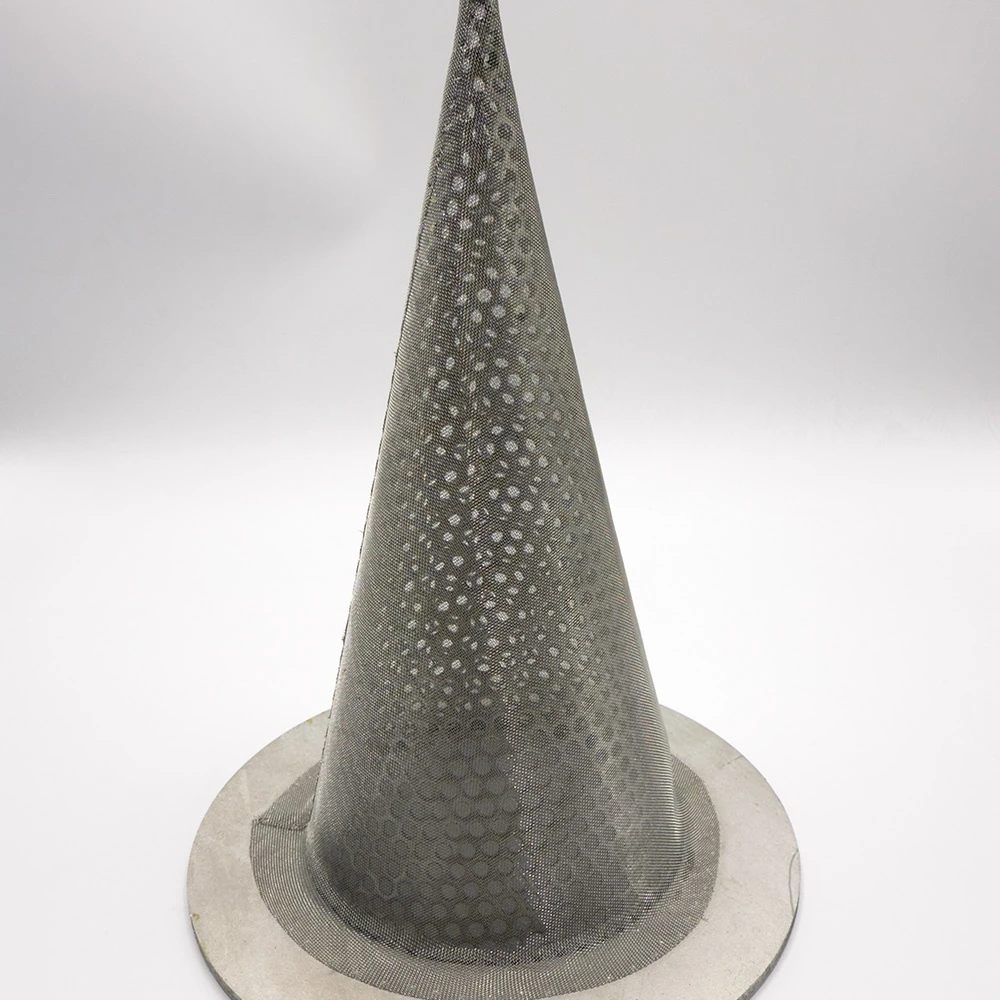

• Mesh Sizes/Perforation: Ranging from 10 mesh (2000 microns) down to 200 mesh (74 microns) for woven wire, and 1/32" to 1/2" diameter perforations for perforated plate. Finer meshes are typically supported by coarser screens.
• Pipe Size Compatibility: Designed for pipe diameters from NPS 1/2" to NPS 60" and above, to fit standard ANSI/ASME B16.5 or B16.47 flanges (Class 150, 300, 600, 900, 1500, 2500).
• Pressure Ratings: Corresponding to flange classes, accommodating pressures from 150 PSI up to 6000 PSI or more.
• Temperature Range: -100°C to +500°C (-150°F to +930°F), depending on material and sealing arrangements.
• Open Area: Crucial for minimizing pressure drop. Typically between 40% and 60% for optimal balance between filtration and flow.
• End Connections: Flanged connection (Raised Face, Ring Type Joint) for insertion between existing pipe flanges.
• Construction: Welded, robust conical or basket design. Some designs feature lifting handles for easier installation and removal.

Product Specification Table: Typical Temporary Strainer Filter Mesh

Application Scenarios for the Temporary Cone Strainer

The versatility and critical function of the temporary cone strainer make it indispensable across a multitude of industrial applications, primarily during commissioning, maintenance, and system upgrades.

• Petrochemical and Oil & Gas Industries: Essential during the startup of new pipelines, refineries, and chemical processing units. They prevent welding slag, rust, and construction debris from damaging expensive compressors, turbines, and control valves. For instance, in a new crude oil pipeline, temporary strainers protect downstream pumps from large particulates that could cause cavitation or abrasion.
• Power Generation Plants: Utilized in thermal, nuclear, and hydroelectric power plants during the flushing and commissioning of cooling water systems, boiler feed lines, and lubrication oil systems. Protecting heat exchangers, condensers, and high-pressure pumps from foreign objects is critical for preventing unscheduled outages.
• Water Supply and Drainage Systems: Employed in municipal water treatment plants, desalination facilities, and large-scale irrigation projects to remove construction debris, sand, and other solids from new piping networks before permanent filtration systems are fully operational. This protects critical pumping stations and purification units.
• Pharmaceutical and Food & Beverage Production: While permanent filtration is crucial, a temporary conical strainer can be used during initial system validation or after major overhauls of process lines to ensure no foreign material is introduced that could compromise product purity or damage sterile equipment. (Note: Specific sanitary designs may be required here).
• HVAC and Cooling Systems: In large commercial or industrial HVAC systems, temporary strainers are used during initial fill and circulation to capture construction debris, preventing blockages in chillers, coils, and circulating pumps.
• Pulp and Paper Industry: Used in the commissioning of new process lines to protect sensitive screens, refiners, and pumps from wood chips, scale, and other fibrous debris.

In each scenario, the strainer cone type acts as a proactive barrier, significantly reducing maintenance costs and preventing catastrophic equipment failures by ensuring a clean start to fluid handling systems.

Technical Advantages of a High-Quality Cone Type Strainer

The benefits of deploying a well-engineered cone type strainer extend beyond simple debris removal, encompassing significant operational and economic advantages.

• Superior Equipment Protection: The primary advantage is safeguarding expensive downstream equipment from physical damage. This includes pumps (impeller damage), control valves (seat and seal damage), heat exchangers (fouling), and instruments (blockage/malfunction). Preventing such damage can save millions in repair or replacement costs and avoid lengthy unscheduled shutdowns.
• Minimized Pressure Drop: Designed with a generous open area and a tapered form, the temporary cone strainer facilitates efficient flow with minimal pressure loss. This design principle ensures that the system's hydraulic performance is not significantly impaired during the commissioning phase, contributing to energy saving by reducing the load on pumps.
• Robust Construction and Corrosion Resistance: Manufactured from high-grade materials like stainless steel or specialized alloys, these strainers offer excellent resistance to corrosion from various process fluids, ensuring their integrity and effective filtration capacity over the required service period, even in aggressive chemical environments.
• Ease of Installation and Removal: The simple, flange-mounted design allows for quick insertion between existing pipeline flanges using standard gaskets and bolts. This reduces installation time and labor costs during critical startup phases. Their temporary nature means they are also easily removed once the system is deemed clean.
• Versatility in Filtration: Available with a wide range of mesh or perforation sizes, a strainer cone type can be tailored to capture specific particulate sizes, from coarse construction debris to finer particles, adapting to various system cleanliness requirements.
• Cost-Effectiveness: While an initial investment, the cost of a temporary strainer is negligible compared to the potential costs of equipment damage, production losses, and emergency repairs it prevents. It represents a highly cost-effective insurance policy for industrial systems.

Vendor Comparison: Selecting the Right Partner for Temporary Strainers

Choosing the right supplier for a cone type strainer is a strategic decision that impacts project timelines, operational reliability, and long-term cost efficiency. A careful evaluation of potential vendors is essential.

Key Factors for Vendor Evaluation:

• Quality and Certifications: Does the vendor adhere to international quality standards such as ISO 9001? Are their products compliant with relevant codes like ASME B31.3 for piping and ASME B16.5 for flanges? Look for vendors providing material test reports (MTRs) and pressure test certificates.
• Customization Capabilities: Can the vendor provide custom sizes, materials, mesh configurations, and pressure ratings beyond standard offerings? This is critical for unique project requirements.
• Technical Expertise and Support: Does the vendor have experienced engineers who can offer design consultation, material recommendations, and troubleshooting support?
• Lead Time and Logistics: Timely delivery is crucial for project schedules. Assess the vendor's ability to meet required lead times and their logistical capabilities for global distribution.
• Pricing and Value: While cost is a factor, prioritize value – a balance of quality, service, and price. A lower-cost product that fails prematurely can result in significantly higher overall project costs.
• Reputation and Experience: Look for vendors with a proven track record, positive customer feedback, and significant years of experience in the industrial filtration sector. Long-standing partnerships with major industrial clients can be an indicator of reliability.

Vendor Comparison Table: Key Differentiators

This comparison highlights the importance of looking beyond initial price points to ensure long-term reliability and compliance with project specifications for your temporary conical strainer needs.

Customized Solutions for Complex Projects

While standard dimensions and materials for a cone type strainer cover many applications, specialized industrial projects often demand bespoke filtration solutions. A reputable manufacturer offers comprehensive customization capabilities to meet these unique requirements.

• Exotic Material Selection: For highly corrosive or high-temperature environments, customization can involve the use of materials like Monel 400, Hastelloy C-276, Inconel 625, or Titanium. These materials offer superior resistance to specific chemical attacks and elevated temperatures that standard stainless steels cannot withstand.
• Non-Standard Sizes and Configurations: Projects with unusually large pipe diameters (e.g., NPS 72" or larger) or specific pressure vessel designs require strainers engineered to precise dimensions. This includes custom length, cone angle, and integral reinforcement for severe service conditions.

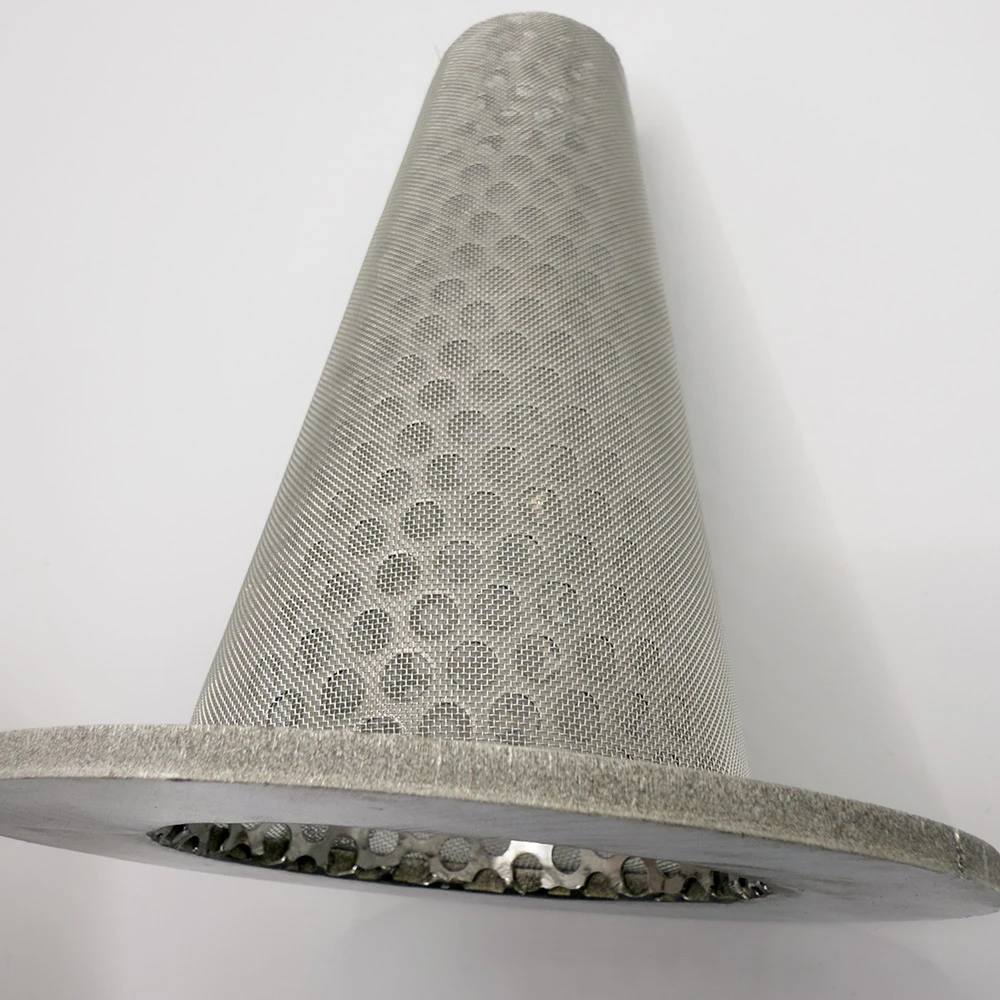

• Optimized Filtration Media: Customization extends to the filtration media itself. This might involve multi-layer mesh construction for fine particulate removal while maintaining mechanical strength, or unique perforation patterns for specific flow dynamics. For instance, a dual-layer mesh with an inner fine mesh (e.g., 200 mesh) and an outer coarse support mesh (e.g., 10 mesh) offers enhanced filtration without premature blinding.
• Special Coatings and Treatments: For abrasive media or to enhance certain properties, specialized coatings (e.g., PTFE, ceramic, or hard-facing alloys) can be applied. Passivation and electro-polishing are standard for enhancing corrosion resistance and surface finish in hygienic applications.
• Integrated Monitoring Features: Advanced solutions can include integration points for pressure differential gauges or sensors, allowing for real-time monitoring of clogging and optimal removal timing of the temporary cone strainer.

Application Case Studies: Proving the Value of Temporary Conical Strainers

Real-world applications underscore the indispensable value of the temporary conical strainer in preventing costly damage and ensuring operational readiness.

Case Study 1: Natural Gas Pipeline Commissioning

A major energy company was commissioning a new 36-inch diameter natural gas transmission pipeline spanning 500 kilometers. The primary concern was protecting high-value turbocompressors from welding slag, rust flakes, and construction debris accumulated during pipeline fabrication and installation. Engineers deployed over 150 custom-fabricated cone type strainer units, specified for ASME Class 600 rating and constructed from SS316L, with a 20-mesh internal screen for fine particulate capture. During the initial hydrostatic testing and subsequent gas flushing, these strainers effectively captured several tons of debris, ranging from small pebbles to welding rods. Post-flushing inspections revealed perfectly clean pipeline sections downstream of the strainers, preventing any damage to the turbocompressors, which alone represented a multi-million dollar investment. The project avoided an estimated three weeks of potential delays and associated costs, demonstrating the critical protective role of the strainer cone type.

Case Study 2: Desalination Plant Expansion

An expansion project for a large-scale seawater desalination plant involved installing new high-pressure pumps and reverse osmosis (RO) membrane units. The client specified temporary cone strainer units for the intake lines and pump suction lines. Given the corrosive nature of seawater, the strainers were constructed from Duplex Stainless Steel (UNS S31803) with a 60-mesh woven wire screen. During the initial system flush, the strainers successfully captured significant amounts of marine growth, sand, and composite debris from newly laid GRP (Glass Reinforced Plastic) pipes. Without this upfront filtration, the delicate RO membranes, which are highly susceptible to fouling and physical damage from particulates, would have faced severe operational impairment or premature failure. The strainers ensured the integrity of the multi-million dollar RO system, facilitating a smooth and efficient plant startup ahead of schedule.

Case Study 3: Chemical Processing Facility Upgrade

A chemical plant undergoing an upgrade to its solvent recovery unit needed to ensure absolute cleanliness after modifying several process lines and installing new heat exchangers. The fluid involved highly corrosive organic solvents. To address this, specialized temporary cone strainer units made from Hastelloy C-276 with a fine 100-mesh filtration element were custom-designed and installed at strategic points. During the commissioning phase, these strainers effectively captured residual scale, polymer particles, and fine metallic debris that could have otherwise contaminated the final product or damaged sensitive downstream analytical equipment. The high-alloy construction prevented any material degradation, and the precise filtration contributed to achieving product purity targets from the very first batch, validating the choice of a high-specification temporary strainer for critical applications.

Quality Assurance, Certifications, and Customer Support

Commitment to quality is the cornerstone of reliable industrial products. For the cone type strainer, this translates into adherence to international standards, rigorous testing, and robust customer support infrastructure.

Certifications and Compliance:

• ISO 9001: Manufacturing facilities operate under a certified Quality Management System (QMS) ensuring consistent product quality from design to delivery.
• ASME B31.3: Design and fabrication adhere to the process piping code, critical for pressure integrity.
• ANSI B16.5 / B16.47: Flange dimensions and pressure-temperature ratings comply with these industry standards, ensuring seamless integration into existing piping systems.
• Material Test Reports (MTRs): Full material traceability is provided, including chemical composition and mechanical properties, verifying compliance with ASTM standards.
• PED (Pressure Equipment Directive): For products destined for the European market, compliance with the PED ensures they meet essential safety requirements.

Warranty and After-Sales Support:

Our temporary cone strainer products are backed by a comprehensive 2-year warranty against manufacturing defects and material failures under normal operating conditions. Our commitment extends beyond delivery, with a dedicated team of technical support specialists available to assist with installation queries, operational guidance, and any post-purchase concerns. Clients benefit from direct access to engineering expertise, ensuring that any challenges are resolved swiftly and efficiently.

Frequently Asked Questions (FAQ)

Conclusion

The cone type strainer stands as an essential, high-performance component in industrial piping systems, particularly critical during initial setup and maintenance operations. Its robust construction, customizable specifications, and proven ability to protect valuable downstream equipment against particulate contamination make it an indispensable investment for any B2B operation focused on reliability and efficiency. By mitigating risks associated with system debris, these temporary strainers ensure smoother startups, reduce unscheduled downtime, and contribute significantly to the longevity and optimal performance of complex industrial infrastructure. Partnering with a reputable manufacturer that prioritizes quality, offers comprehensive technical support, and provides tailored solutions is key to harnessing the full benefits of this vital filtration device.
