The Evolving Landscape of Industrial Filtration: Trends and Innovations

The industrial filtration sector is experiencing significant evolution, driven by increasingly stringent environmental regulations, demands for higher operational efficiency, and the need for greater product purity. Core to many advanced filtration systems, particularly within bag filtration units, is the precision-engineered perforated filter. These components serve as crucial support structures and initial separation layers, dictating the longevity and effectiveness of the entire filtration assembly.

Current industry trends emphasize materials with enhanced corrosion resistance, superior mechanical strength, and designs that facilitate simplified maintenance and optimized flow dynamics. The integration of smart monitoring technologies and predictive analytics is also transforming how filtration systems are managed, moving towards proactive rather than reactive maintenance strategies. This focus on durability, efficiency, and smart operation underscores the critical role of robust and precisely manufactured perforated components in achieving modern industrial filtration goals.

Manufacturing Process of a High-Performance Perforated Filter

The creation of a high-performance perforated filter is a multi-stage process that combines material science, precision engineering, and rigorous quality control. This ensures each component delivers exceptional durability, structural integrity, and optimal functional performance in demanding industrial environments.

1. Raw Material Sourcing and Selection

The foundation of any high-quality filtration component lies in the material. For perforated filters, common choices include Stainless Steel grades (e.g., SS304, SS316L, Duplex 2205/2507) for their corrosion resistance and mechanical strength. For highly aggressive chemical environments, exotic alloys like Hastelloy, Monel, or Inconel are selected. Plastic alternatives such as polypropylene or PTFE are used where chemical compatibility or weight is a primary concern. All materials undergo stringent inspection to ensure compliance with international standards (e.g., ASTM A240 for stainless steels), accompanied by Mill Test Certificates (MTCs) for full traceability.

2. Precision Perforation

This critical step involves creating precise apertures in the chosen material sheet. Advanced techniques employed include:

• CNC Punching: Ideal for high-volume production, offering consistent hole sizes (typically 0.5 mm to 20 mm) and accurate patterns (e.g., staggered 60°, straight 90°). This method ensures uniform open area ratios, which are vital for controlled flow and minimal pressure drop.
• Laser Cutting: Used for intricate designs, very small hole diameters (down to 0.1 mm), or materials that are difficult to punch. Laser cutting provides extremely clean edges with minimal heat-affected zones, crucial for precise applications.
• Rotary Pin Perforation: Employed for softer materials like thin plastics or specialized alloys, offering rapid, continuous perforation.

The perforation design – including hole size, shape (round, slotted, square), and open area percentage (ranging from 20% to 60%) – is meticulously engineered to optimize fluid flow, provide robust support for finer filtration media, and withstand differential pressures.

3. Forming and Fabrication

Following perforation, the sheets are transformed into their final three-dimensional form. This typically involves:

• Rolling: For cylindrical or conical filter cages, perforated sheets are precisely rolled to the required diameter.
• Welding: Seams are joined using advanced welding techniques such as TIG (Tungsten Inert Gas) welding, MIG (Metal Inert Gas) welding, or laser welding. TIG welding is preferred for its clean, strong, and precise welds, especially for stainless steel and exotic alloys, ensuring structural integrity and preventing leaks.
• End Cap Integration: Custom end caps, flanges, or sealing rings are welded or attached to complete the filter element, ensuring a secure fit within the filter housing.

4. Finishing and Quality Control

Each component undergoes thorough finishing and rigorous quality assurance. This includes deburring to remove sharp edges, pickling and passivation for stainless steels to restore corrosion resistance, and often electropolishing for sanitary applications. Non-destructive testing (NDT) methods like visual inspection, dimensional verification using CMM (Coordinate Measuring Machine), dye penetrant testing for weld integrity, and occasionally X-ray inspection for critical welds ensure compliance with design specifications and industry standards such as ISO 9001 and ANSI B31.1 (for piping components).

Target Industries and Advantages

These precisely engineered components are vital for industries including petrochemical, metallurgy, power generation, water supply & drainage, pharmaceuticals, and food & beverage. Key advantages include:

• Energy Saving: Optimized designs minimize pressure drop, leading to reduced pump energy consumption.
• Corrosion Resistance: Material selection (e.g., 316L, Hastelloy) ensures a service life of 5-15 years even in highly corrosive environments.
• High Mechanical Strength: Withstands high differential pressures (up to 10 bar or 145 psi) and abrasive slurries without deformation.
• Enhanced Durability: Robust construction reduces maintenance, extending operational cycles.
• Precise Filtration Support: Provides stable backing for fine filter media, ensuring consistent and efficient particle separation.

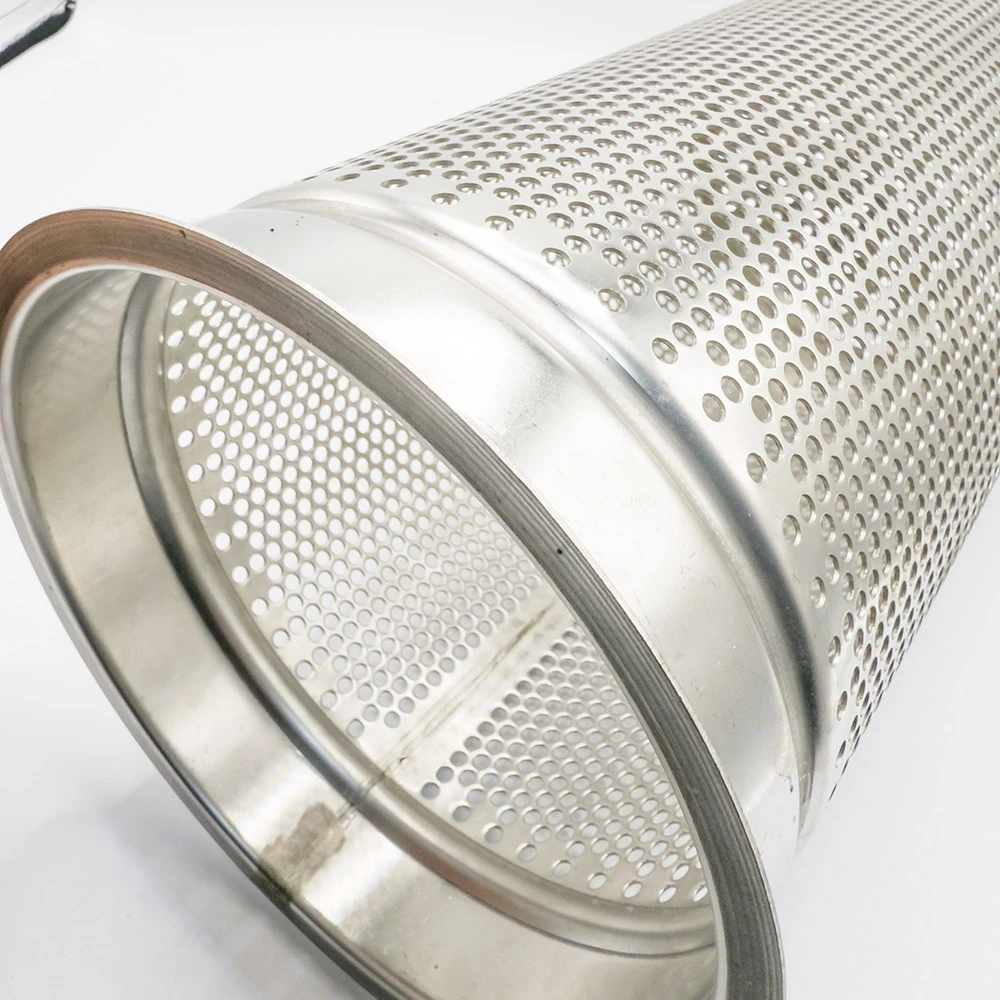

Fig 1: Illustrative example of a precision-fabricated filtration support structure, showcasing its intricate design.

Technical Specifications and Parameters of a Typical Perforated Filter Cartridge

Selecting the correct filtration component requires a detailed understanding of its technical parameters. These specifications directly influence the filter's performance, resilience, and suitability for specific process fluids and operational conditions. Below is a comprehensive table outlining key parameters for a standard bag filter support cartridge.

Product Specification Table: Standard Bag Filter Support Cartridge

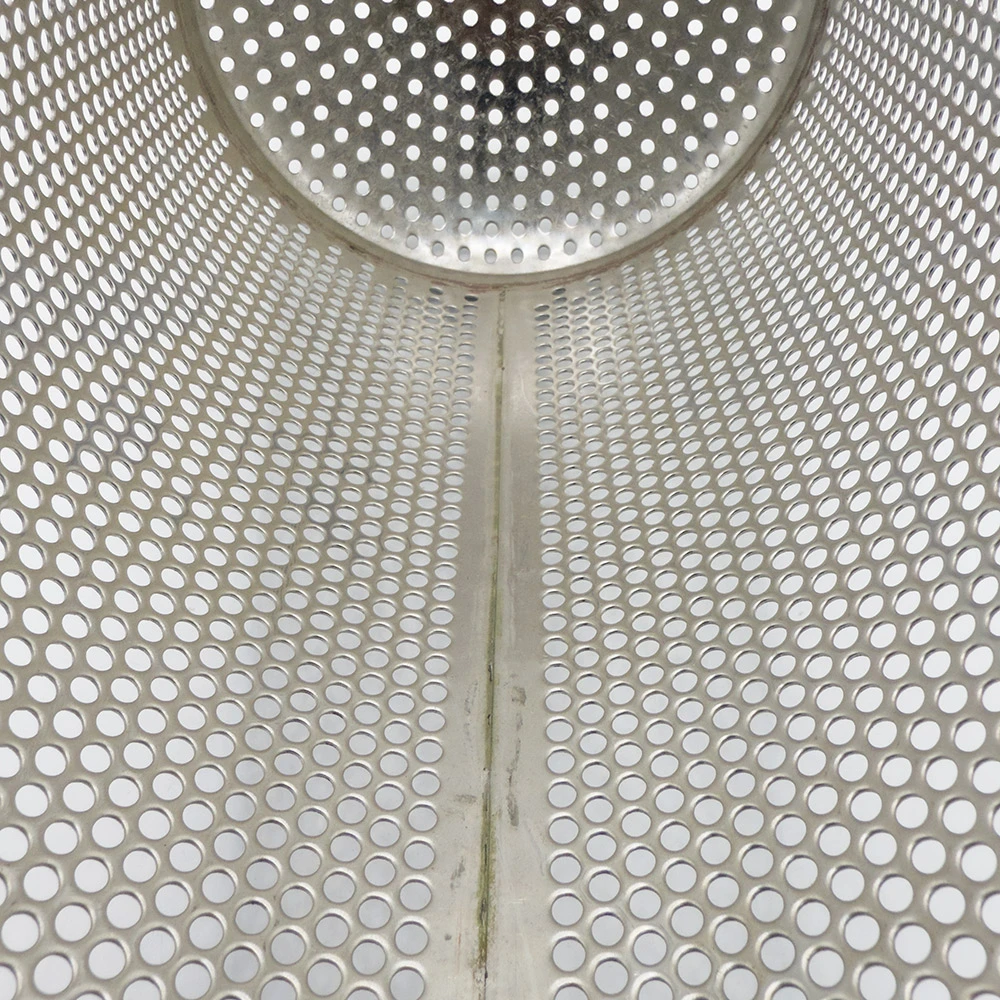

Fig 2: Diverse patterns and robust construction of industrial filtration components, designed for longevity.

These specifications are crucial for ensuring that the perforated filter provides optimal performance, effectively supporting the primary filter media, and contributing to the overall efficiency and longevity of the bag filtration system.

Key Technical Advantages of Advanced Perforated Support Systems

Modern perforated support designs offer a multitude of technical advantages that directly translate into operational benefits and cost savings for industrial clients. These advantages stem from precision engineering, superior material science, and a deep understanding of fluid dynamics.

• Unparalleled Structural Integrity: Engineered from robust materials like high-grade stainless steel, these components provide exceptional mechanical strength. This allows them to withstand high differential pressures (e.g., up to 10 bar) and aggressive flow regimes without deformation, significantly extending their operational lifespan.
• Optimized Hydrodynamic Performance: Precision-punched perforations with carefully calculated open area ratios minimize pressure drop across the filter system. This optimization reduces the energy consumption required for pumping, leading to substantial energy savings and lower operating costs over time.
• Superior Corrosion and Chemical Resistance: Available in a wide array of alloys, including SS316L, Hastelloy, and Monel, perforated supports can be tailored to resist specific corrosive chemicals, high temperatures, and abrasive slurries, ensuring reliability in the most challenging industrial environments.
• Versatile Media Support: The rigid structure provides stable and uniform support for various primary filter media, such as filter bags, cloths, or screens. This prevents media deformation or tearing, ensuring consistent filtration efficiency and prolonging the life of the primary media.
• Ease of Maintenance and Cleaning: The smooth, often polished surfaces, combined with robust construction, facilitate easier cleaning and prevent particulate buildup. This reduces downtime for maintenance and contributes to a more hygienic process, especially in food, beverage, and pharmaceutical applications.
• Cost-Effectiveness and Longevity: While the initial investment might reflect precision engineering, the extended service life (often 5-15 years), reduced maintenance, lower energy consumption, and consistent performance lead to a significantly lower total cost of ownership (TCO).
• Environmental Compliance: By ensuring efficient particle removal and product purity, these robust filter components help industries meet stringent environmental discharge regulations and product quality standards, contributing to sustainable operations.

These inherent advantages position advanced perforated filter support systems as a cornerstone technology for critical industrial filtration applications, delivering reliability, efficiency, and long-term value.

Application Scenarios Across Key Industries

The versatility and robust nature of the perforated filter make it an indispensable component across a wide range of industrial applications where reliable solid-liquid separation and media support are crucial. Its role often extends beyond simple filtration to protecting downstream equipment and ensuring product quality.

Petrochemical and Oil & Gas Industry

In the petrochemical sector, perforated filter elements are critical for pre-filtration stages, protecting expensive catalysts, heat exchangers, and pumps from fouling by particulate matter. They are used in the filtration of crude oil, refined products, and various chemical intermediates, operating under high pressures and temperatures. In oil & gas, they are essential for produced water treatment, pipeline protection, and gas sweetening processes, where resistance to corrosive media like H2S is vital.

Water Treatment and Wastewater Management

Municipal and industrial water treatment plants utilize perforated filter screens and baskets extensively as strainers and support structures in various stages, including raw water intake, clarification, and tertiary treatment. They effectively remove larger suspended solids, protecting pumps, membranes, and other sensitive equipment from damage, thereby enhancing overall system efficiency and reducing maintenance costs.

Chemical Processing

The chemical industry demands high resistance to a broad spectrum of aggressive chemicals. Perforated components made from exotic alloys (e.g., Hastelloy, Monel) are employed in acid filtration, solvent recovery, and particle removal from reaction mixtures, ensuring product purity and preventing equipment damage from corrosive media or solids.

Food & Beverage

For food and beverage applications, hygiene is paramount. Stainless steel perforated filters, often electro-polished to achieve a smooth, easy-to-clean surface, are used for pre-filtration of water, syrups, oils, and spirits. They provide robust support for finer filter media in beer brewing, juice clarification, and dairy processing, consistently meeting strict sanitary and FDA compliance standards.

Mining and Metallurgy

In mining operations, these filters are used for dewatering slurries, classifying minerals, and separating solids from process water. Their robust construction and abrasion-resistant materials are essential to withstand the highly abrasive nature of mineral slurries and high flow rates typical in these demanding operations.

Fig 3: A bag filtration system featuring robust internal perforated support components in operation.

Each of these sectors leverages the specific material and design advantages of advanced perforated filtration support technology to achieve critical operational goals, from process efficiency and equipment protection to strict regulatory compliance.

Vendor Comparison: Selecting the Right Perforated Component Supplier

Choosing a supplier for high-performance perforated filtration components requires a comprehensive evaluation that goes beyond basic product specifications. A holistic assessment of expertise, manufacturing capability, quality assurance, and customer support is paramount for ensuring the long-term reliability and cost-effectiveness of your filtration system.

Key Factors for Vendor Evaluation:

• Manufacturing Precision and Technology: Assess the vendor's capabilities in advanced techniques like CNC punching, laser cutting, and precision welding. Higher precision directly impacts flow characteristics, mechanical integrity, and filter lifespan.
• Material Expertise and Sourcing: A reputable vendor will offer a wide range of certified materials (e.g., SS304/316L with MTCs, Duplex, Hastelloy) and provide expert guidance on material selection for specific application demands.
• Quality Control and Certifications: Look for ISO 9001 certification, adherence to ASTM/ANSI standards, and a robust internal QA/QC process, including non-destructive testing (NDT) capabilities.
• Customization Capabilities: The ability to design and manufacture custom components tailored to unique process requirements (e.g., specific hole patterns, dimensions, end connections) is a significant advantage for specialized applications.
• Technical Support and After-Sales Service: Evaluate the availability of experienced application engineers, responsiveness to inquiries, and comprehensive support for installation, troubleshooting, and ongoing maintenance.
• Lead Time and Supply Chain Reliability: For critical operations, consistent supply and predictable lead times are essential. A vendor with established logistics and efficient production planning minimizes operational disruptions.

Comparative Analysis Framework:

This table provides a framework for comparing potential suppliers based on critical attributes, aiding B2B decision-makers in their procurement process.

Prioritizing vendors with proven expertise in precision manufacturing and comprehensive quality assurance for perforated components will ultimately lead to more reliable, efficient, and cost-effective filtration solutions, reducing operational risks and extending asset life.

Customized Solutions for Specialized Filtration Needs

While standard perforated filter designs address a wide array of applications, many industrial processes feature unique challenges that necessitate highly specialized solutions. Customization capabilities enable optimal performance in niche operating conditions, maximizing efficiency, improving reliability, and extending the system's longevity. A reputable manufacturer offers extensive engineering and fabrication capabilities to tailor perforated components to precise client specifications.

Key Areas of Customization:

• Advanced Material Specification: Beyond standard SS304/316L, customization extends to duplex stainless steels (e.g., 2205, 2507 for higher strength and chloride resistance), superalloys (e.g., Inconel 625 for extreme temperatures and pressures), titanium for highly corrosive environments, or specific polymer compounds for chemical compatibility and light weight.
• Precision Perforation Parameters: Tailored hole sizes (e.g., micro-perforations down to 0.1mm), specific patterns (e.g., custom staggered or square arrangements), and optimized open area ratios to achieve unique flow characteristics, meet precise pressure drop targets, or provide ideal support for highly specialized filter media.
• Non-Standard Dimensions and Geometry: Manufacturing filter components to non-standard diameters, lengths, or complex geometries (e.g., conical, multi-layered designs, specific flange connections, or basket strainers with integrated lifting handles) to integrate seamlessly into existing or bespoke filtration housings.
• Specialized Surface Finishes: Custom finishes such as electropolishing for pharmaceutical and sanitary applications (Ra
• Custom End Connections and Sealing Mechanisms: Designing and fabricating bespoke end caps, gaskets, or specific sealing mechanisms to ensure a perfect fit and leak-free operation within particular filtration systems, accommodating various housing designs.
• Integrated Assemblies: Providing complete custom assemblies that might include multiple perforated layers for enhanced strength, integrated support structures, or combinations with other filter elements to form complex filtration cartridges.

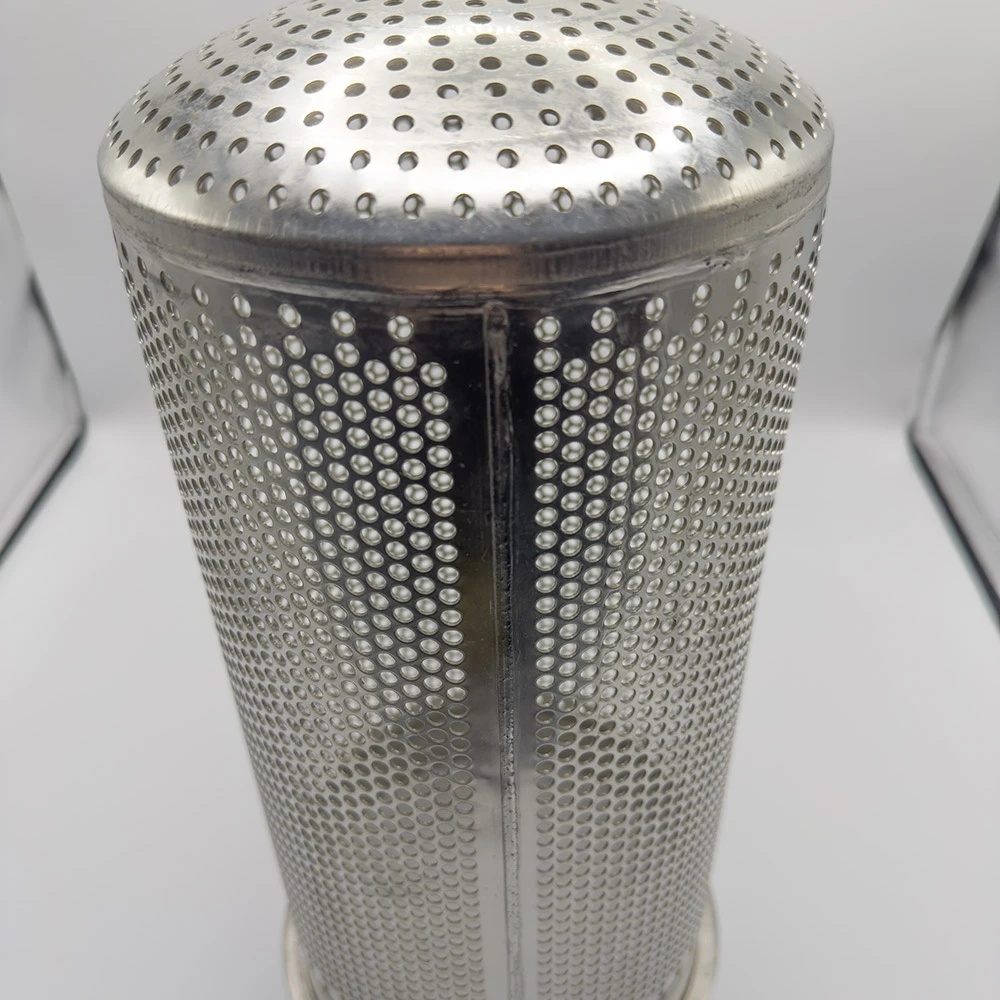

Fig 4: Custom fabricated perforated support cages ready for integration into a bag house system.

Working with an experienced manufacturer that offers comprehensive engineering consultation and advanced fabrication capabilities ensures that the customized filtration solution meets the exact demands of the application, leading to superior performance, enhanced operational reliability, and improved return on investment.

Application Case Studies and Customer Experience

Real-world application case studies powerfully demonstrate the tangible benefits and reliability of properly engineered filtration solutions. These examples highlight how tailored perforated components solve complex industrial challenges, improve process efficiency, ensure product quality, and maintain regulatory compliance.

Case Study 1: Petrochemical Plant - Catalyst Protection in Hydrocracking Unit

A major petrochemical refinery faced critical issues with premature fouling of its expensive catalyst beds in a hydrocracking unit due to fine particulate matter in the feedstock. This led to frequent unscheduled shutdowns and significant catalyst replacement costs. Our engineering team designed custom SS316L perforated support baskets with a precise 1.5 mm staggered hole pattern. These baskets were integrated into the existing bag filtration system upstream of the reactor, optimizing the open area ratio to minimize pressure drop while effectively retaining particulate down to 100 microns. After implementation, the plant reported a remarkable 30% increase in catalyst lifespan and a 20% reduction in downtime for filter changeouts, leading to estimated annual operational savings exceeding $750,000.

Case Study 2: Municipal Wastewater Treatment - Enhanced Primary Clarification

A large municipal wastewater treatment facility experienced challenges with inconsistent solid removal during primary clarification, resulting in an excessive biological oxygen demand (BOD) load on downstream biological treatment stages. We provided heavy-duty perforated screens fabricated from Duplex Stainless Steel (2205) for their primary influent channels. This material was selected for its superior corrosion resistance against sewage and excellent mechanical strength to handle high flow rates and fluctuating solids loads. The new screens drastically improved the capture of coarse solids, reducing the suspended solids load on subsequent treatment stages by 25% and leading to a measurable decrease in operational energy consumption for aerators, aligning with their sustainability goals.

Case Study 3: Pharmaceutical Manufacturing - CIP System Protection and Sterilization

A leading pharmaceutical company required highly reliable filtration for its Clean-in-Place (CIP) recirculation system to protect sensitive spray balls and critical valves from residual particles and ensure sterility. We supplied custom-designed, electropolished SS316L perforated filter elements with exceptionally tight dimensional tolerances (±0.1 mm) for their sanitary filter housings. The electropolishing provided a superior surface finish (Ra

Customer Feedback:

• "The durability and precision of the perforated baskets from [Supplier Name] significantly improved our bag filter system's performance. We've seen a noticeable reduction in media replacement frequency and improved system uptime." - Process Engineer, Large Chemical Plant.
• "Their custom-designed perforated screens perfectly fit our unique wastewater channel and have proven incredibly robust, handling high volumes with ease. The material choice was spot on for our challenging environment, showing no signs of degradation after two years." - Operations Manager, Regional Water Utility.
• "We rely on their expert advice and high-quality stainless steel perforated filters for our critical sterile processes. The electropolished finish and precise fit are essential for our FDA compliance and product integrity." - QA Director, Pharmaceutical Manufacturer.

These examples underscore the critical importance of precision engineering, advanced material selection, and collaborative problem-solving in delivering effective and reliable filtration solutions for diverse industrial applications, directly impacting operational success and financial performance.

Ensuring Authoritativeness and Trustworthiness ()

Our commitment to delivering superior filtration solutions, including those utilizing perforated filter elements, is built upon a foundation of extensive expertise, recognized authority, and unwavering trustworthiness. We ensure these principles are upheld through stringent quality control, adherence to global industry certifications, transparent communication, and dedicated customer support.

Certifications and Quality Assurance

Our manufacturing processes for all perforated components rigorously adhere to international standards, including ISO 9001:2015 for Quality Management Systems, ensuring consistent product quality from design to delivery. All raw materials used are accompanied by comprehensive Mill Test Certificates (MTCs), guaranteeing full traceability and verifying chemical composition and mechanical properties. Our products are designed and tested to comply with relevant industry standards such as ASTM (American Society for Testing and Materials) for material specifications and performance, and ANSI (American National Standards Institute) for design and manufacturing. In-house testing capabilities include pressure drop tests, burst pressure tests, and extensive dimensional analysis, ensuring every product meets or exceeds specified performance criteria.

Partner Clients and Industry Experience

With over 15 years of specialized experience in metal mesh and filtration components, we have established long-term partnerships with leading companies across various demanding sectors. Our client portfolio includes global petrochemical giants, major water utilities, pharmaceutical innovators, and prominent food & beverage manufacturers. These enduring relationships are a testament to the reliability and consistent performance of our filtration solutions and our unwavering commitment to service excellence.

Frequently Asked Questions (FAQ)

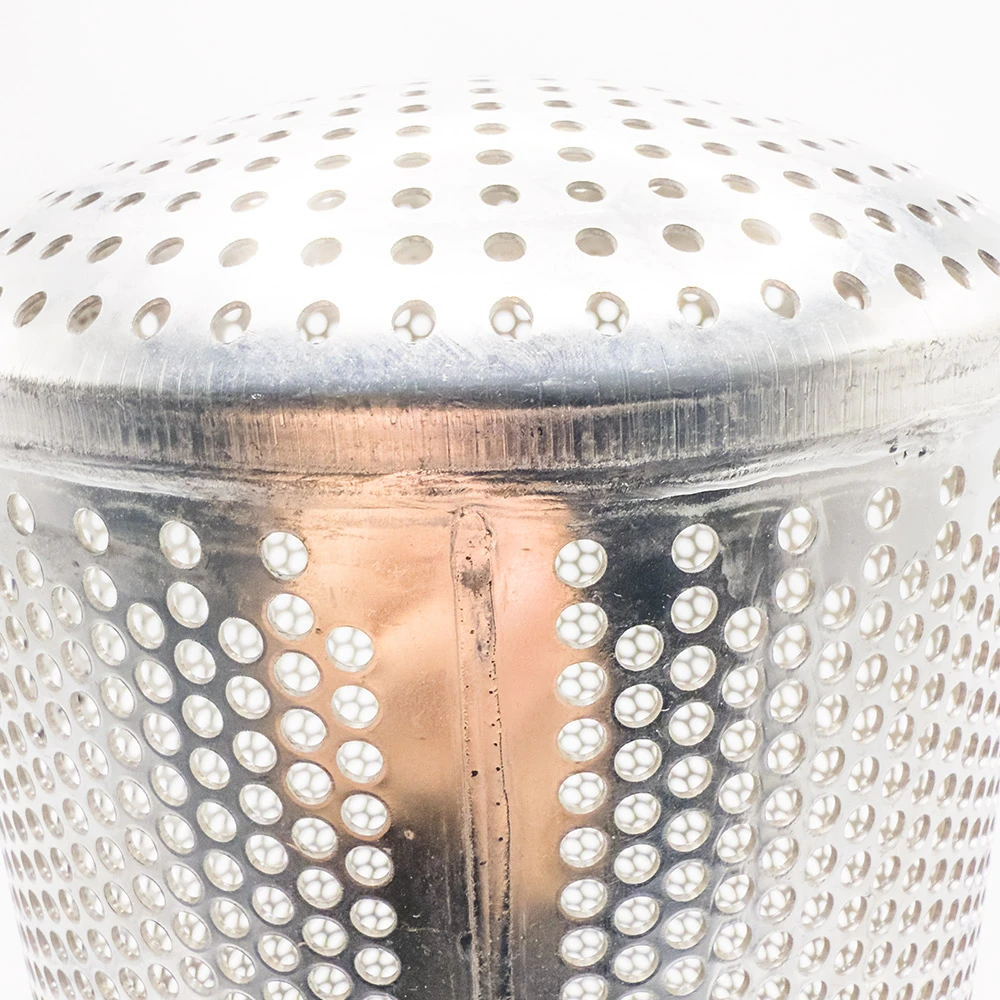

Fig 5: A close-up view of precision welding on a critical filtration element, highlighting manufacturing quality.

We are deeply committed to fostering long-term partnerships built on transparency, exceptional product quality, and unparalleled customer service. Our dedication to these principles ensures that clients receive not just a product, but a reliable, high-performance filtration solution backed by verifiable expertise and robust support throughout its lifecycle.

Conclusion

The perforated filter stands as a foundational component in modern industrial filtration, critical for safeguarding processes, enhancing product quality, and ensuring operational efficiency across a myriad of sectors. From its precise manufacturing, employing advanced techniques and robust materials, to its versatile application in challenging environments, its role is indispensable. The technical advantages—including superior structural integrity, optimized flow dynamics, and exceptional corrosion resistance—underscore its value proposition. By understanding the intricate details of its specifications, considering tailored solutions, and partnering with authoritative vendors, industries can leverage these components to achieve reliable, long-term filtration performance.

As industries continue to evolve, demanding even higher levels of purity, efficiency, and sustainability, the ongoing innovation in perforated component technology will remain at the forefront, providing foundational support for complex separation challenges and driving operational excellence.
