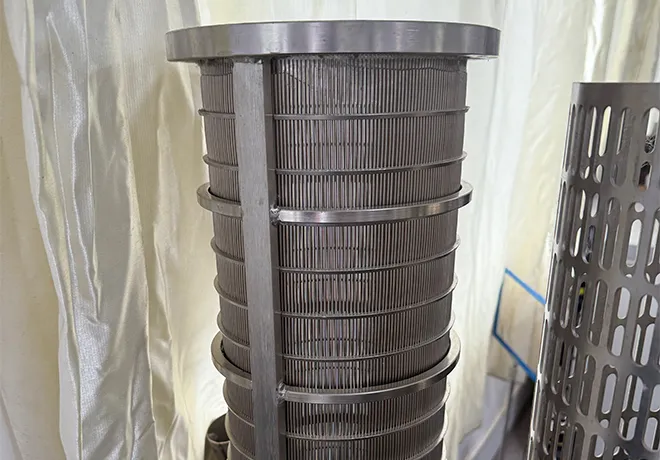

Wedge Wire Filter Screen

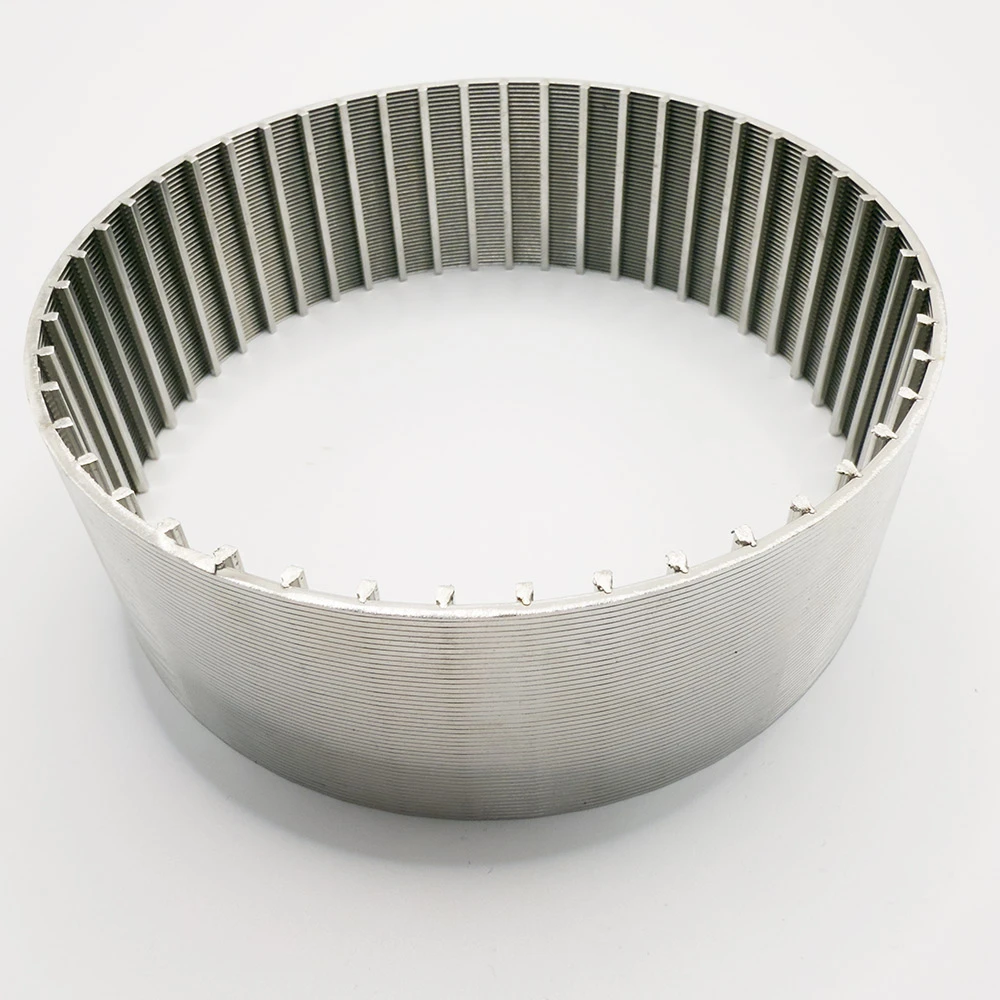

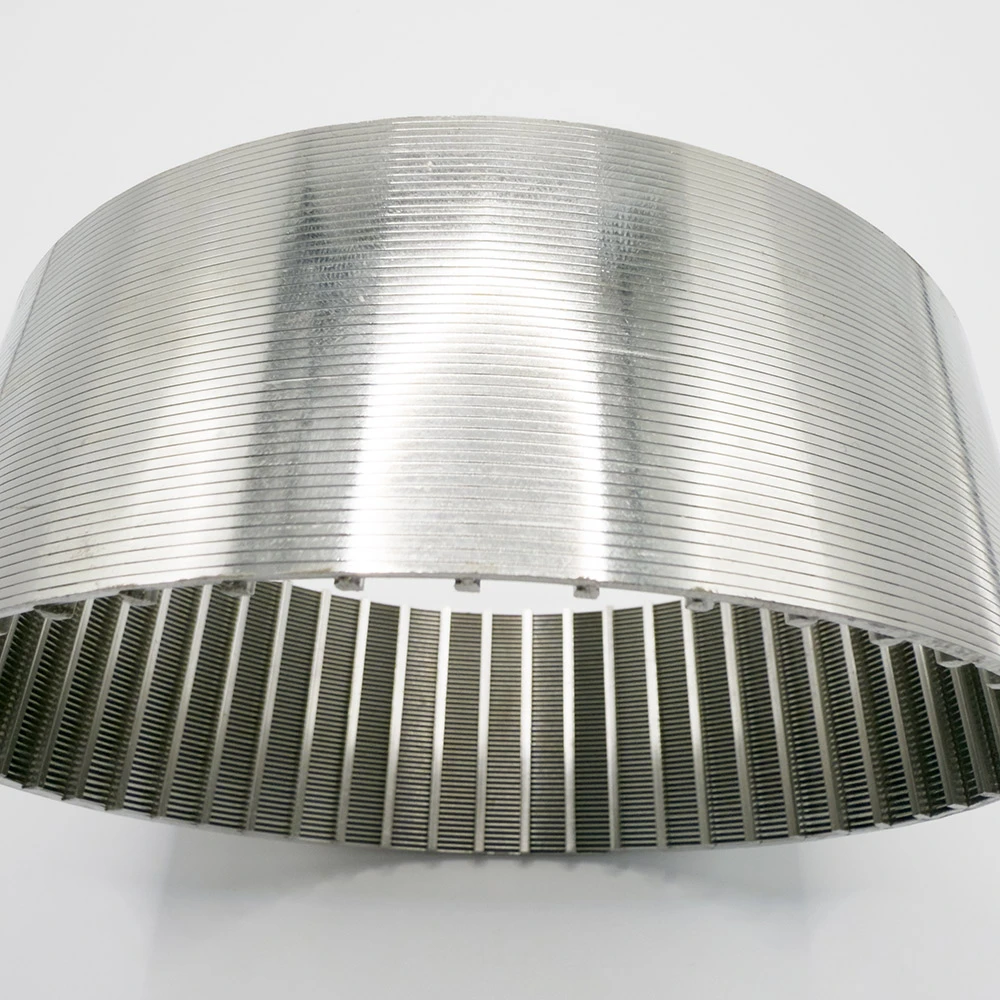

Shape: A cylindrical structure with continuous slot opening
texture of material: SS304/316/316L， Has durability and corrosion resistance.
Filtering mechanism: Wedge wire allows fluid to pass through while preventing blockage and ensuring effective particle separation.
Slot opening： Uniform slot opening to achieve consistent filtering.

Send Email Download

Product Description

Items	Description
Product Name	Wedge Wire Filter Screen
Material	Stainless Steel 304/316, Duplex Steel, Hastelloy (Optional)
Structure	Cylindrical wedge wire screen with continuous slot openings
Filtration Accuracy	20μm - 5000μm (Based on slot width)
Dimensions	Customizable according to application requirements
Thickness	Varies depending on wire and rod size
Hole Type	Continuous slot (wedge wire)
Open Area Ratio	30% - 70% (Depends on slot width and wire profile)
Connection Type	Welded rings, flanges, threaded connections
Operating Temperature	-50°C to 600°C
Surface Treatment	Pickling, Polishing, Electroplating (Optional)
Corrosion Resistance	Excellent resistance to corrosion, rust, and chemical exposure
Applicable Media	Water, Oil, Gas, Slurry, Chemicals
Application Industries	Water Treatment, Petrochemical, Mining, Food & Beverage, Paper & Pulp
Features	High mechanical strength, clog-resistant, long lifespan, efficient filtration
Customization Options	Slot size, diameter, material, end connections
Packaging	Wooden cases, Carton boxes, or as per customer requirements

Wedge Wire Filter Screen Description

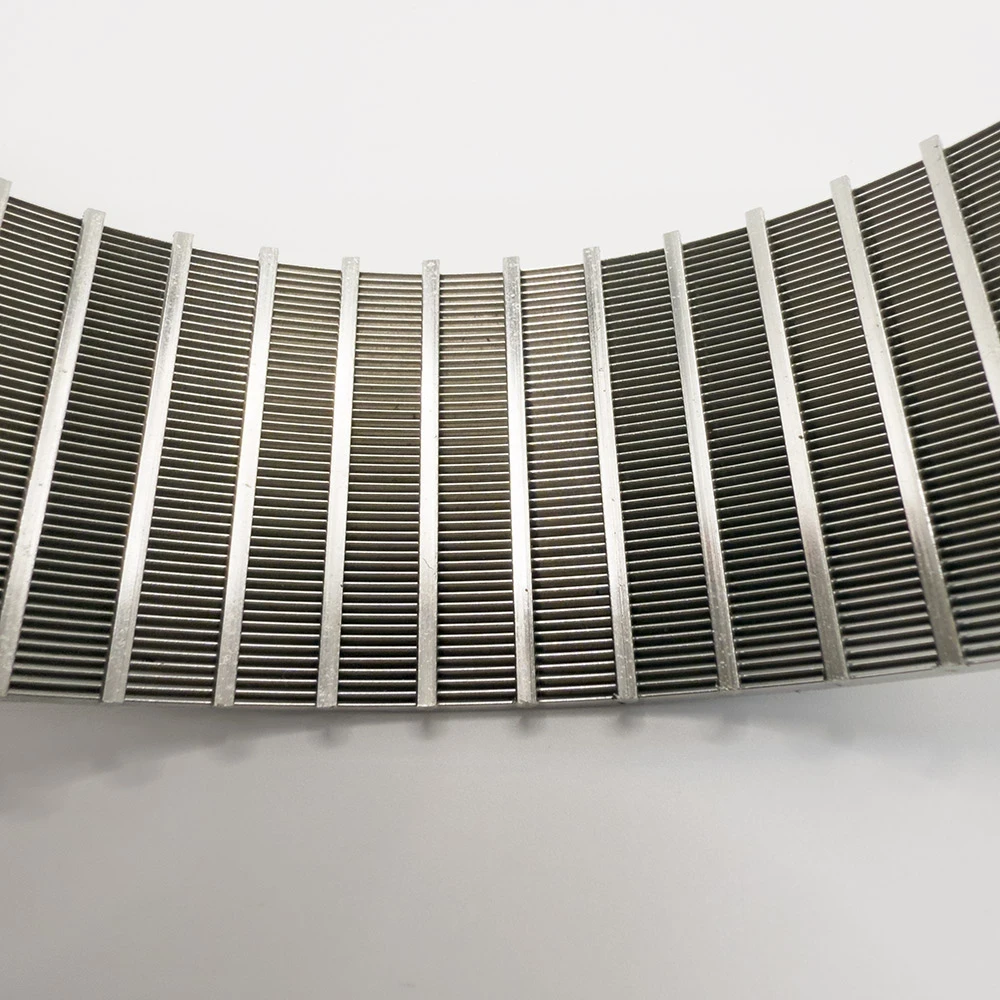

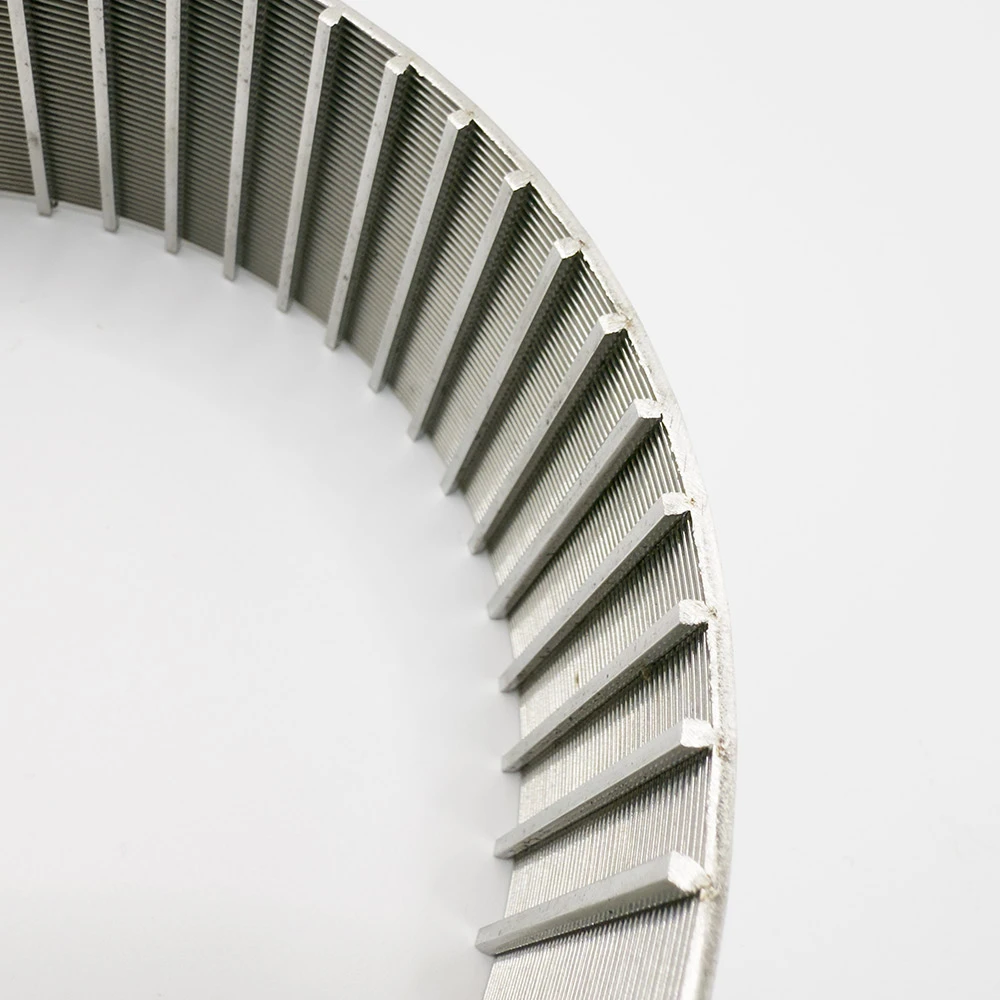

Wedge Wire Filter Screen is a high-performance filtering component that focuses on precise solid-liquid separation and design. It is mainly composed of V-shaped contour wires welded to the support rod, forming a continuous slot structure to ensure high strength, high efficiency filtration and anti clogging of the product

Industrial Filtration Systems

Wedge wire filter screens are widely used in industrial filtration systems to remove solid particles from liquids and gases. Due to their durable, corrosion-resistant design, wedge wire filters are ideal for demanding applications in industries like chemical processing, oil and gas, water treatment, and food and beverage filtration. The unique wedge-shaped wire design provides excellent filtration performance by offering precise openings that allow for efficient fluid flow while capturing fine particles and debris.

Mining and Aggregate Processing

In the mining and aggregate processing industries, wedge wire filter screens are utilized for separation and classification of materials like sand, gravel, and ores. Their robust design ensures they can withstand the harsh conditions of mining operations while maintaining high efficiency. The screens are used in dewatering processes, scrubbing systems, and sieving equipment, offering reliable performance by preventing clogging and allowing for high throughput even with fine or abrasive materials.
