Pump Guard Filter

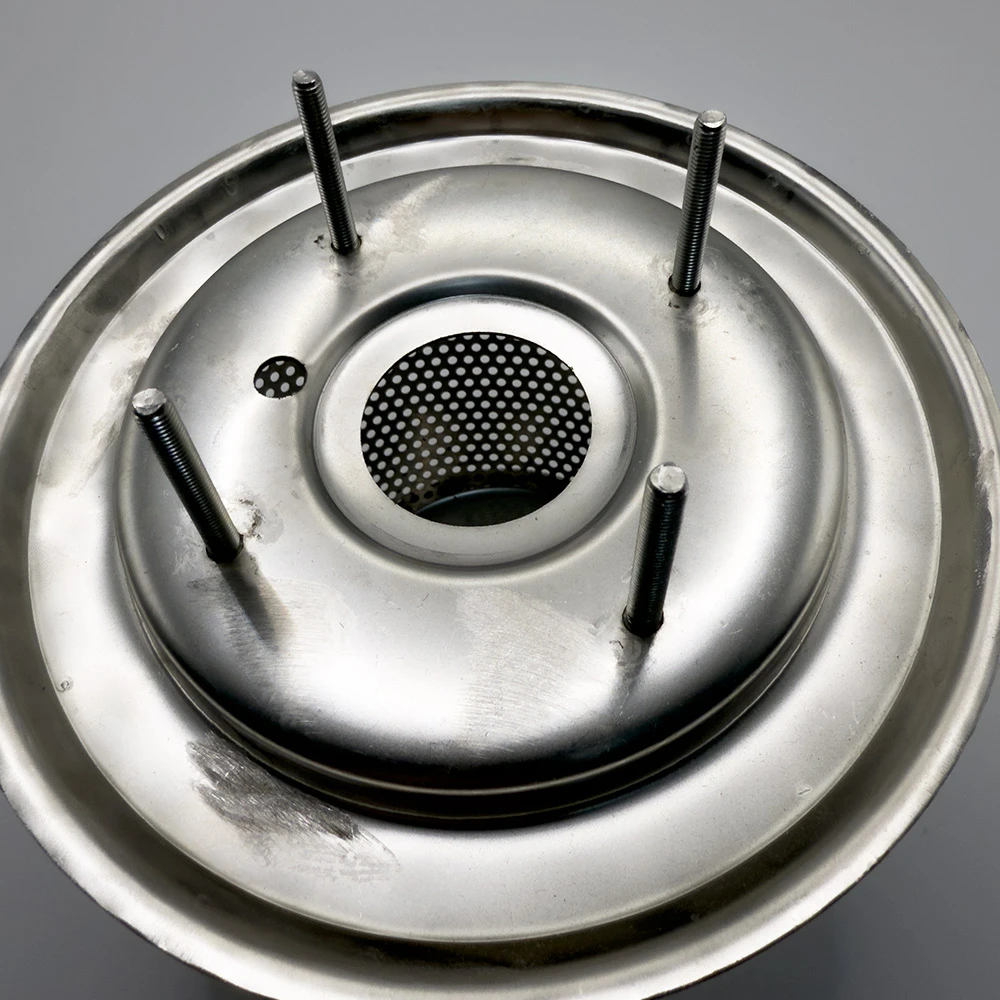

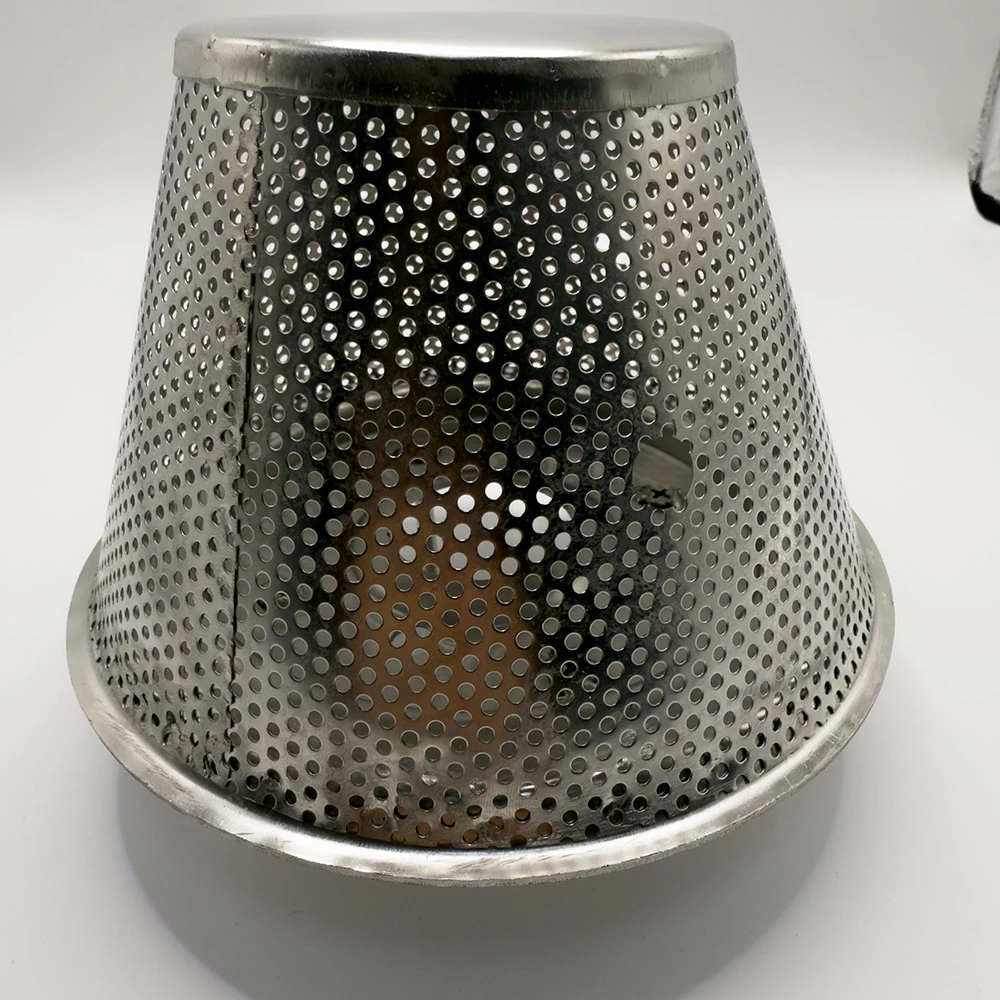

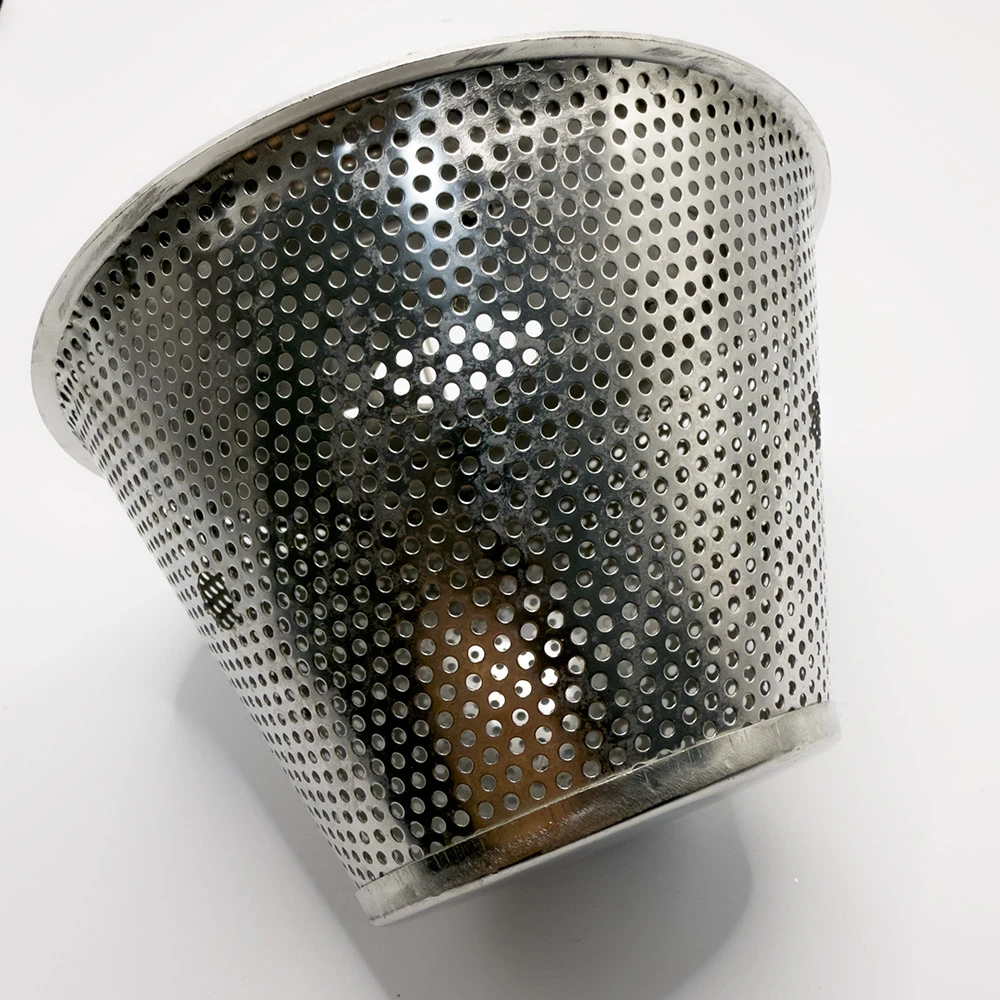

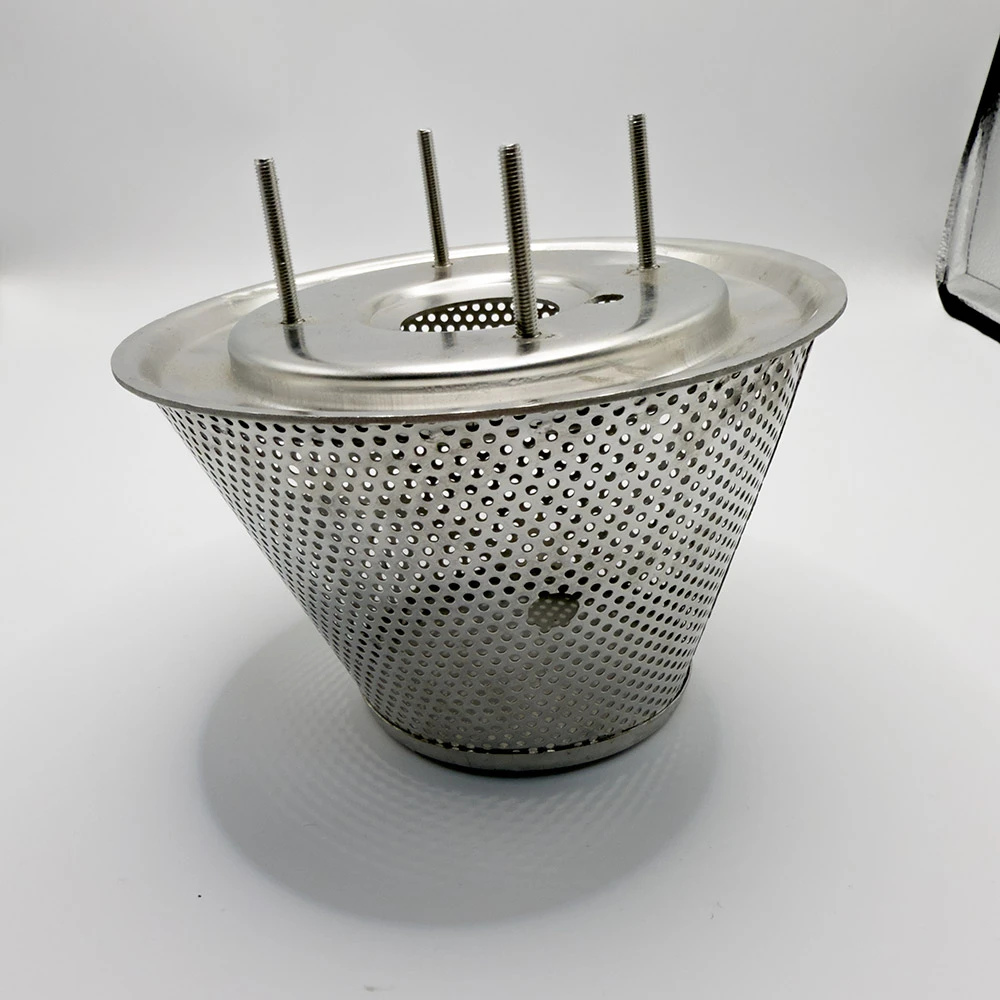

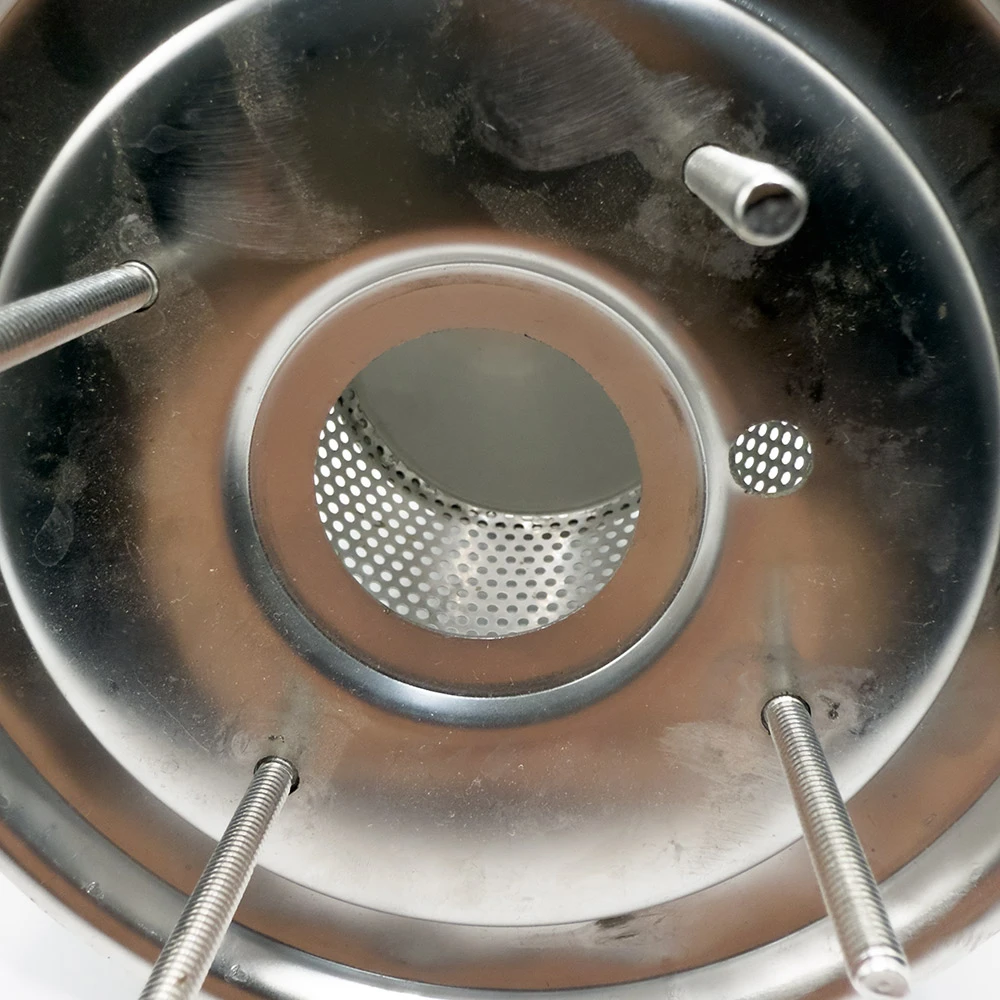

The Pump Guard Filter is mainly made of stainless steel perforated metal and reinforced frame, specifically used for water pump fluids or fluid systems to prevent solid particles or impurities from entering the pump body, effectively extending the service life of the equipment. The structure of the filter is sturdy, with flange design and bolt fixing design to ensure accurate installation, and it is widely used in industrial fluid treatment, petrochemical industry, sewage treatment and other fields.

Send Email PDF

Product Description

Items	Description
Product Name	Pump Guard Filter
Material	Stainless Steel 304 / 316L
Structure	Conical perforated metal with flange and threaded rod connections
Filtration Accuracy	10µm - 5000µm (customizable)
Dimensions	Customizable (Top Diameter, Bottom Diameter, Height)
Thickness	0.3mm - 10mm
Hole Type	Round perforations
Open Area Ratio	30% - 60%
Connection Type	Flange with threaded bolts
Operating Temperature	-50°C to 500°C
Surface Treatment	Pickling / Polishing / Electroplating
Corrosion Resistance	Excellent resistance to rust and chemical corrosion
Applicable Media	Water, Oil, Chemicals, Coolants
Application Industries	Water Treatment, Petrochemical, Power Plants, Marine, Industrial Filtration
Features	High Strength, Reusable, Easy Installation, High Flow Rate
Customization Options	Hole Size, Dimensions, Connection Type, Material Grade
Packaging	Carton / Wooden Case with Protective Wrapping

Industrial Pump Protection

Pump guard filters are essential in protecting industrial pumps from debris, particulate matter, and contaminants in fluid systems. These filters are installed in pipelines or directly on the pump’s intake to ensure only clean fluids are processed. By preventing damage to the pump’s internal components, pump guard filters help extend pump life, reduce downtime, and improve operational efficiency in industries such as oil and gas, chemical processing, and water treatment.

Agricultural Irrigation Systems

In agricultural irrigation systems, pump guard filters are used to protect pumps and irrigation equipment from clogging caused by organic material, soil, and other debris present in the water supply. By filtering out particles before they reach the pump, these filters ensure consistent water flow and prevent pump wear and maintenance costs. They are particularly useful in drip irrigation systems and sprinkler systems, where clean, uninterrupted water flow is critical to crop health.
