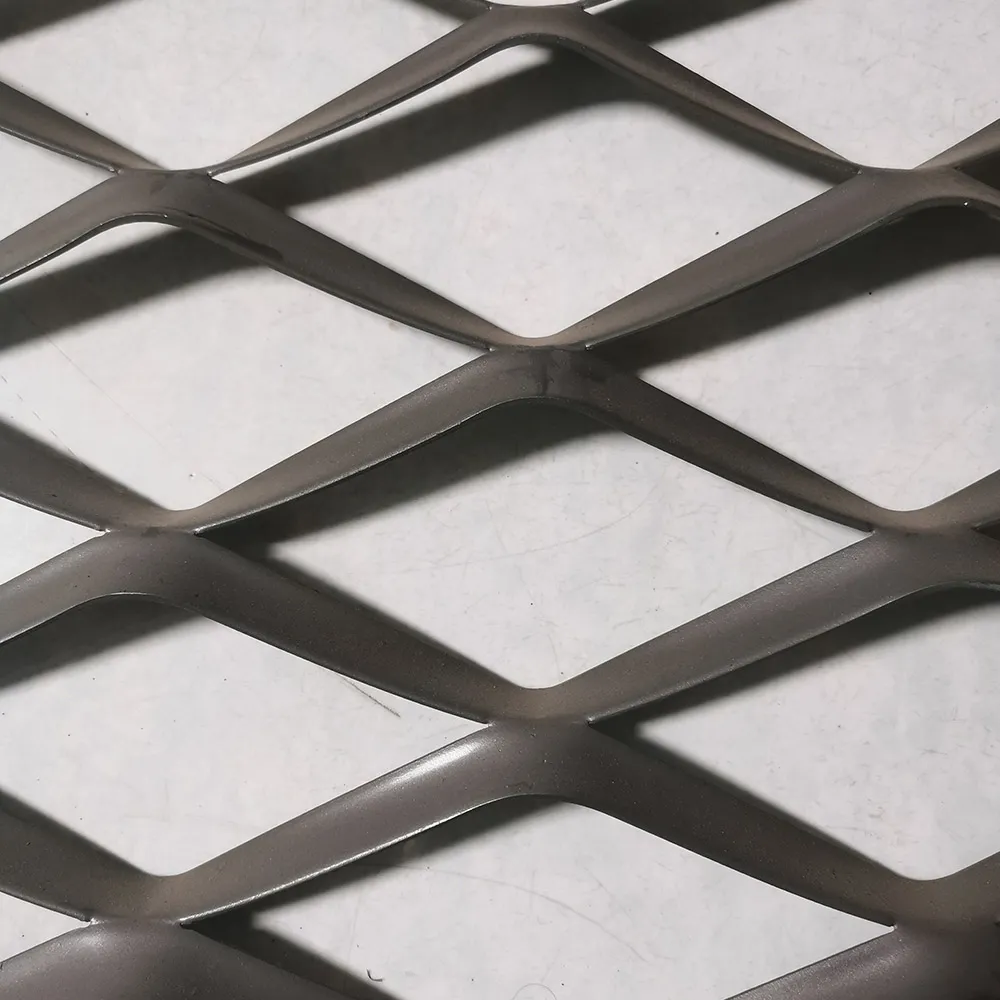

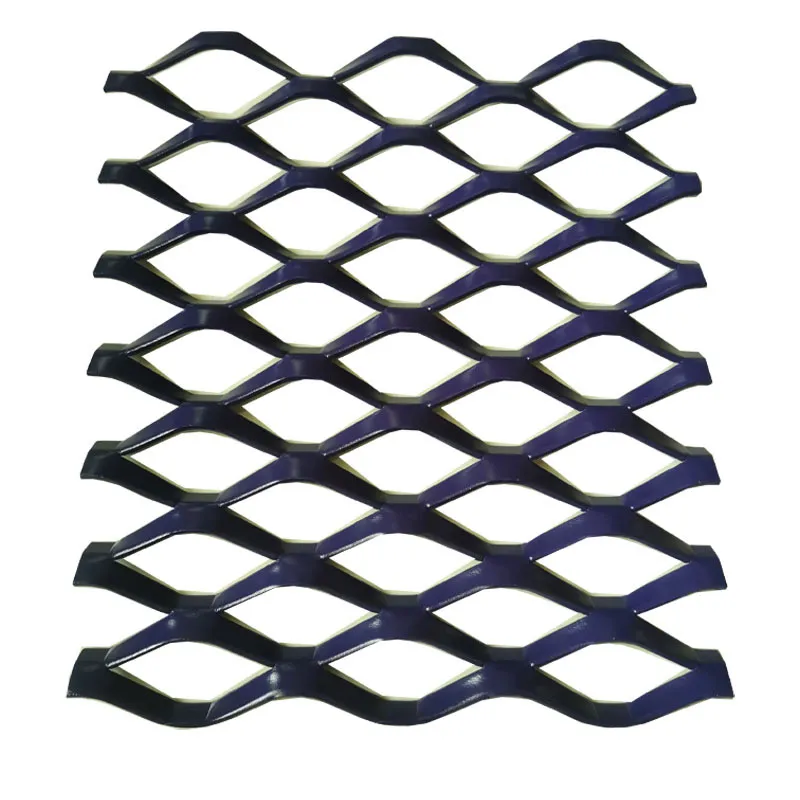

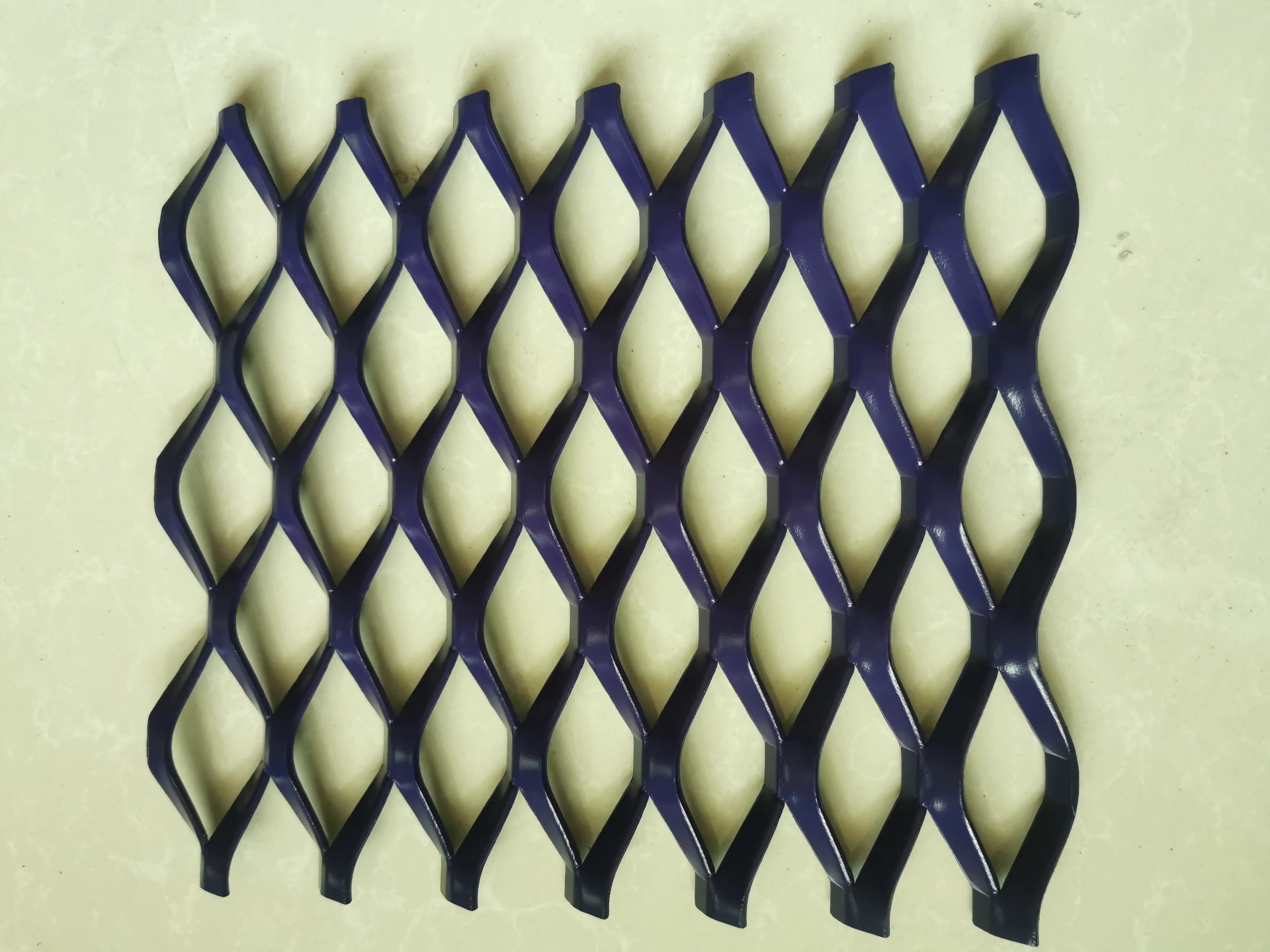

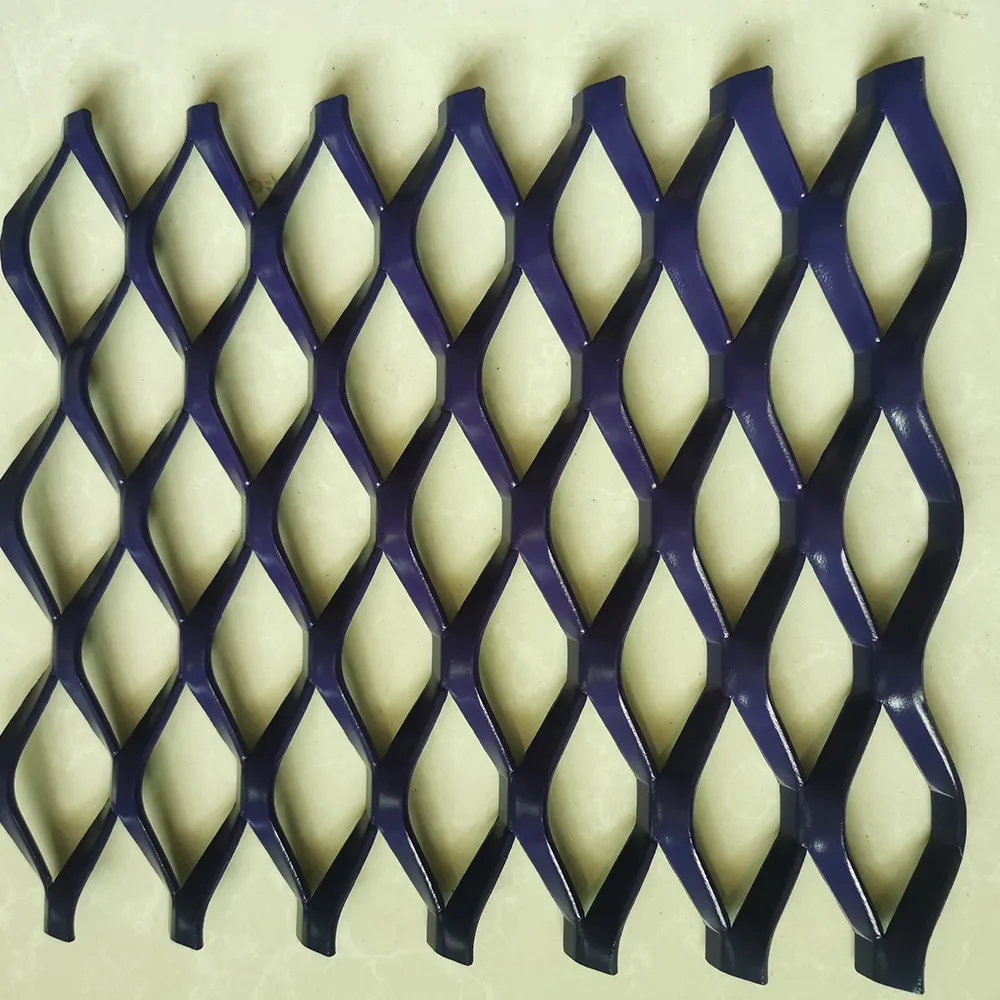

Façade / Curtain Wall Expanded Metal

Materials: Aluminum 1016
Thickness: 3.0mm
SWD x LWD: 100mm x 200mm
Strand Width: 15mm
Overall Thickness: 20mm
Weight: 5.69KG/m2
Open Area: 30%
Surface Treatment: Fluorocarbon Coating

Send Email Download

Product Description

Mini Order Quantity	1 Piece
OEM NO.	CC-009
Type	Façade / Curtain Wall Expanded Metal
Place of Origin	Heibei, China
Packaging	Carton Box / Wood Pallet Steel Pallet / Waterproof Plastic Cover
Sample	Paid
Customization Service	Yes
Available Raw Materials	Carbon Steel (Q235, 195, 195L, SPHC) Stainless Steel (304, 316, 316L) Aluminum (1060, 1050, 1100, 3003, 5052)
Surface Treatment	Dipped Galvanized / Powder Coating / Anodizing / Polishing / Fluorocarbon PVDF
Powder Coating / Fluorocarbon PVDF Standard （AkzoNobel, PPG Industries, Jotun etc）	AAMA2604 Standard（Guarantee 10 Year） AAMA2605 Standard（Guarantee 15 Year） AAMA2606 Standard（Guarantee 20 Year）
Hot Dipped Galvanized Standard	＞Zinc 50g （3-5Year）＞Zinc 100g （5-8Year）＞Zinc 250g （15 Year+）
Producing Video	https://youtu.be/ueMewn7b2rI
FAQ	How to choose the specification? Select the material and hole size according to the load, environment (such as corrosiveness) and application. What mode is common raw material for Aluminum? 1060 Aluminum is common Do you have AFTER-SERVICE? Yes, if goods is questioned, we will take a flight to visit your company or project area.

Façade / Curtain Wall Expanded Metal Description

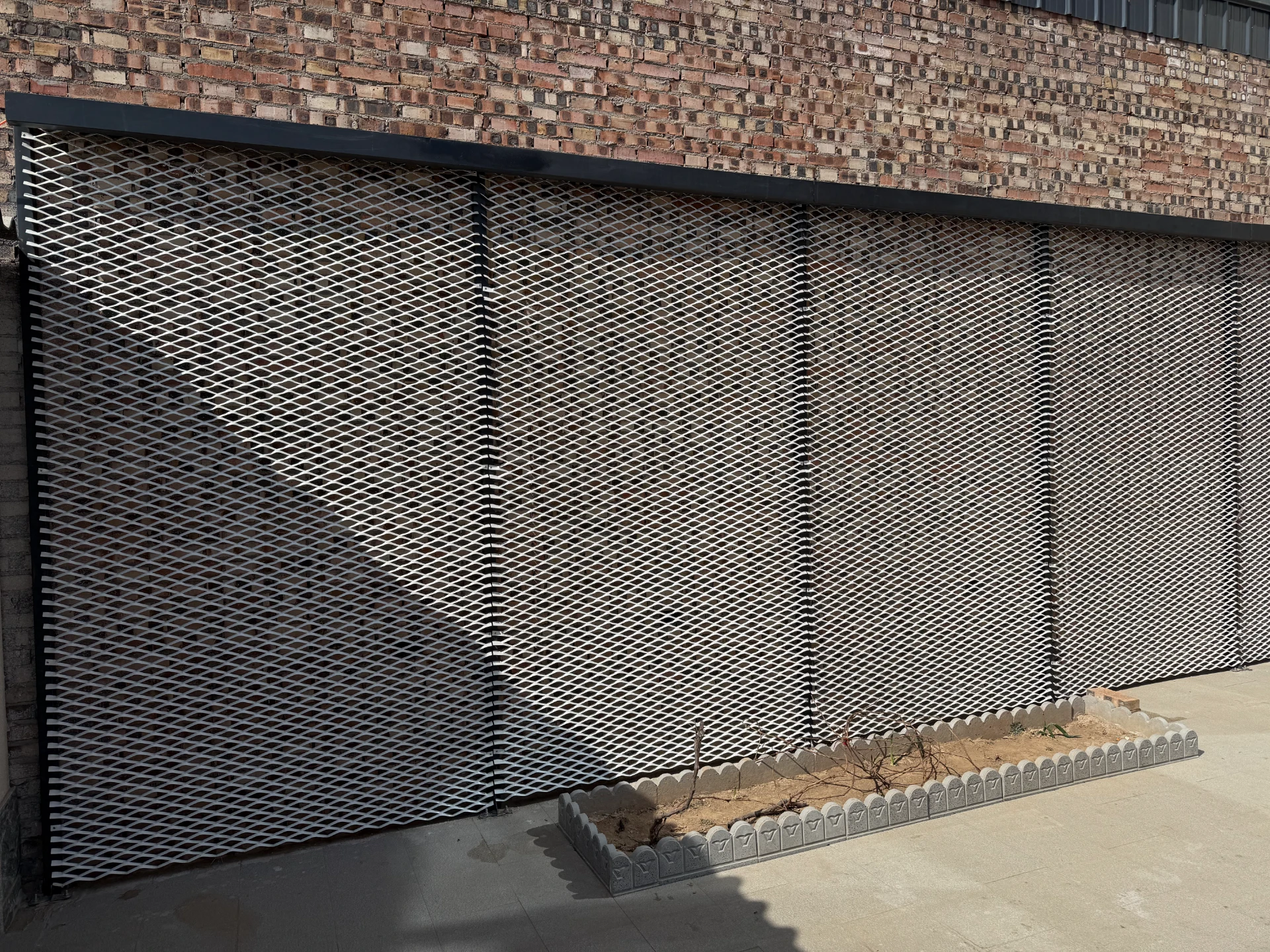

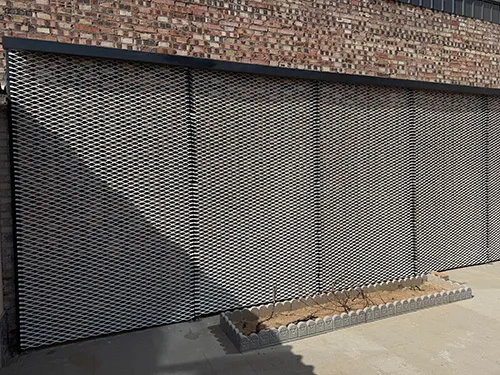

Expanded metal is coated by Fluorocarbon. Fluorocarbon is of antioxidant resistance, unioresistant, aesthetic etc. Usually this expanded metal can be used at facade/curtainwall for sunshade.

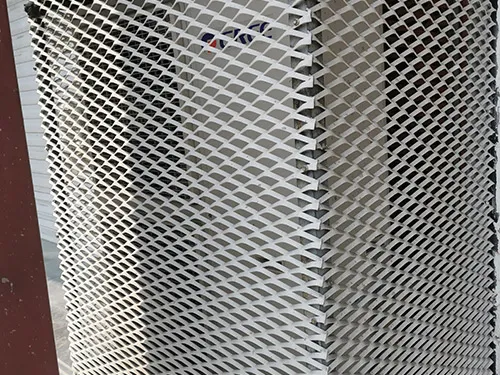

Commercial Building Envelopes

Façade expanded metal is widely applied in office complexes, shopping centers, and institutional buildings to create visually dynamic and modern exteriors. It not only enhances architectural aesthetics with customized mesh patterns but also functions as a sunshade, reducing glare and heat gain. This improves the building’s energy efficiency while offering a sleek, ventilated skin that supports sustainable design.

Transportation and Public Infrastructure Projects

In airports, railway stations, and parking structures, curtain wall expanded metal provides a durable, lightweight solution for ventilated façades and protective cladding. Its ability to withstand harsh weather conditions, combined with low maintenance and enhanced airflow, makes it ideal for large-scale infrastructure. It also serves as a security barrier without compromising design integrity or natural lighting.
