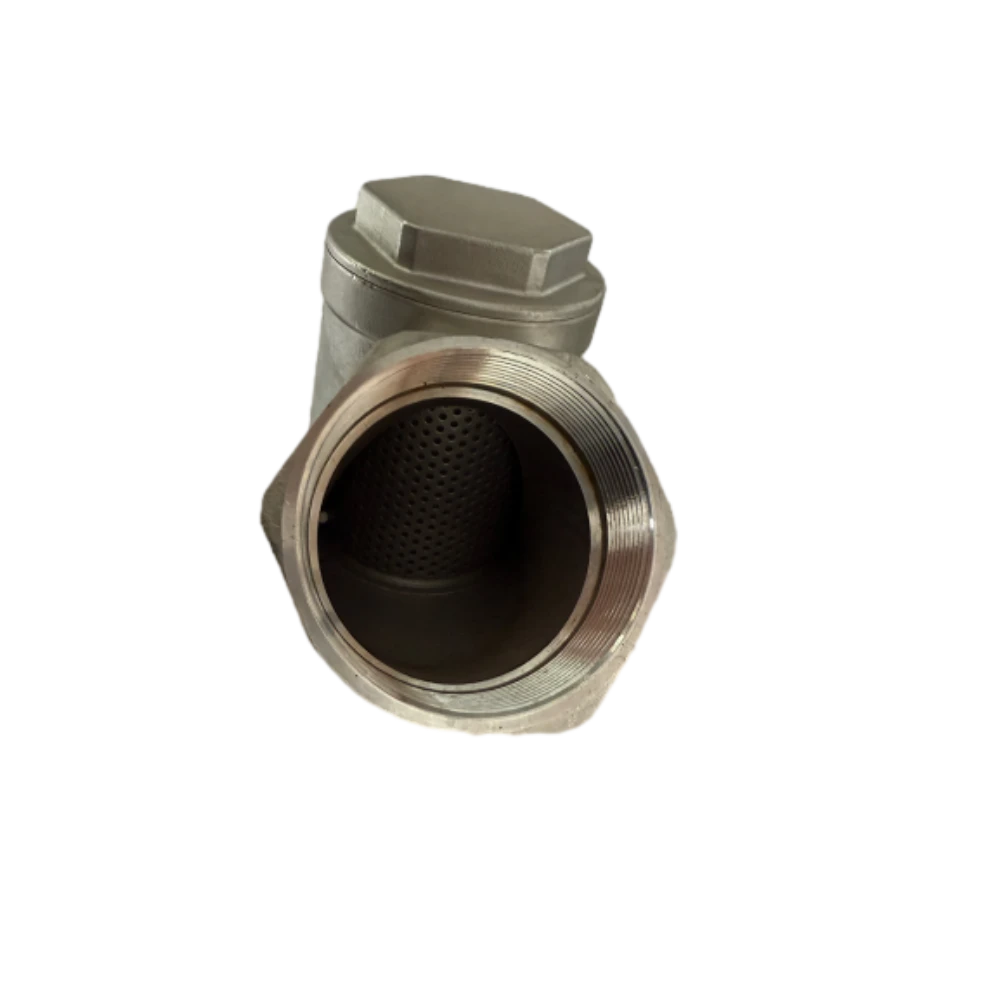

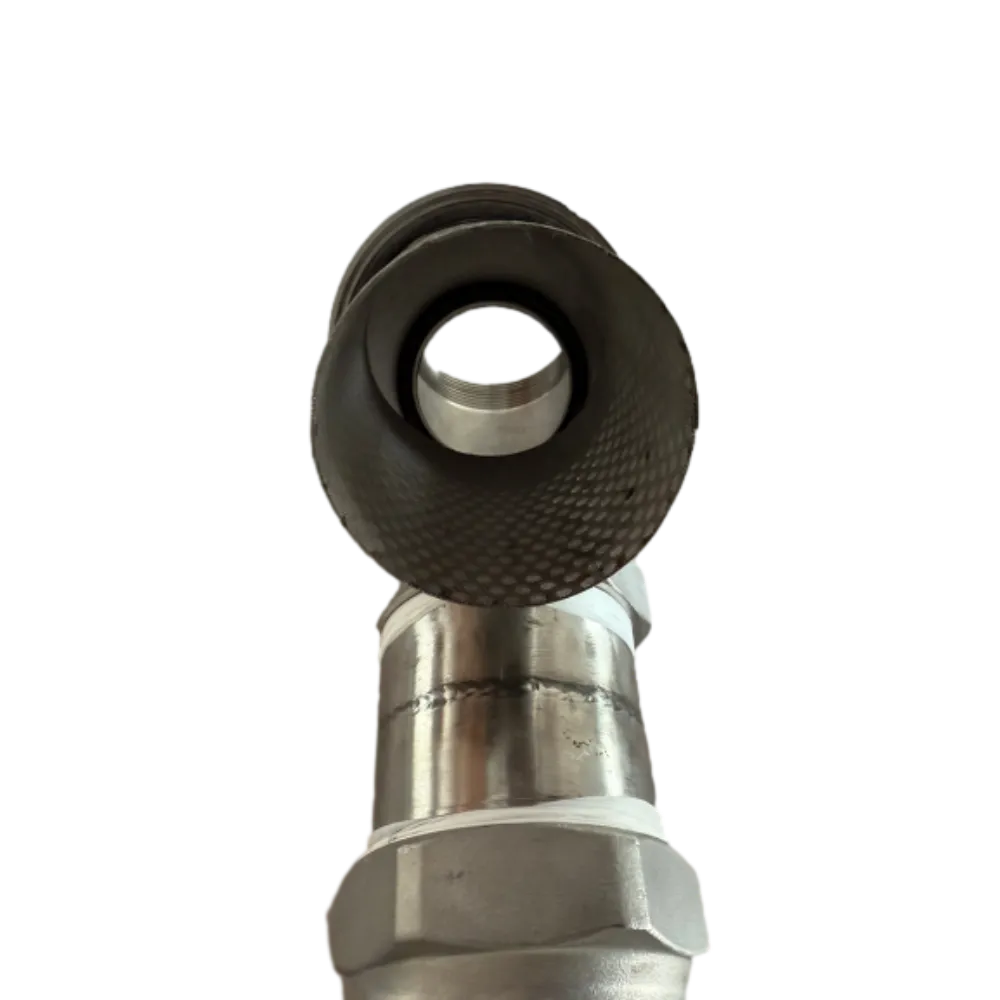

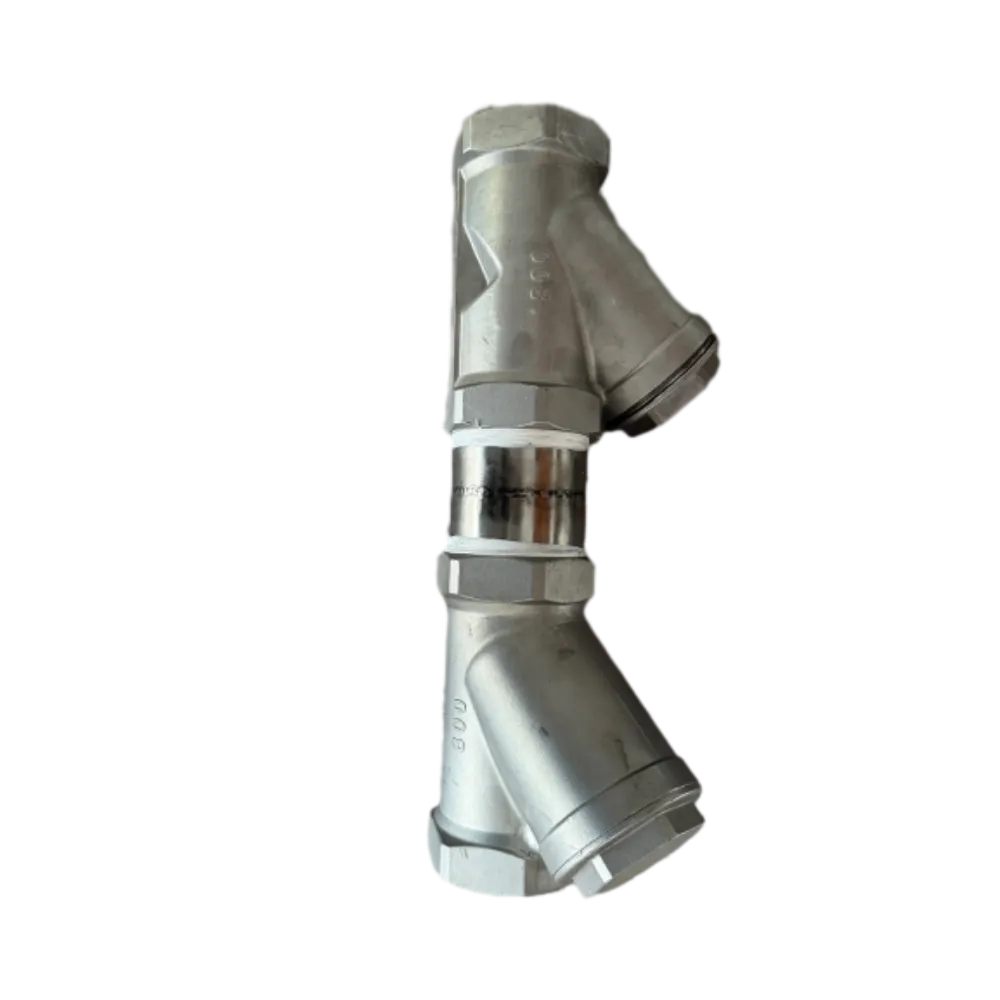

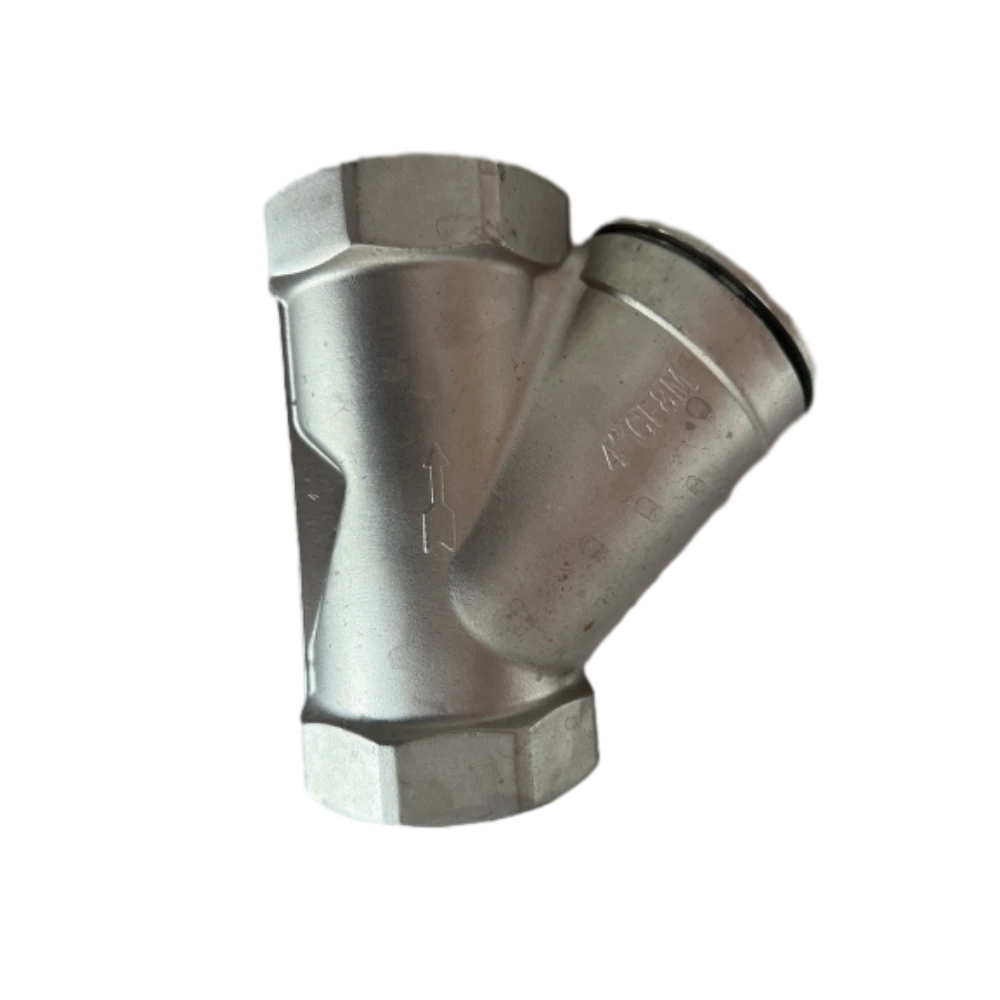

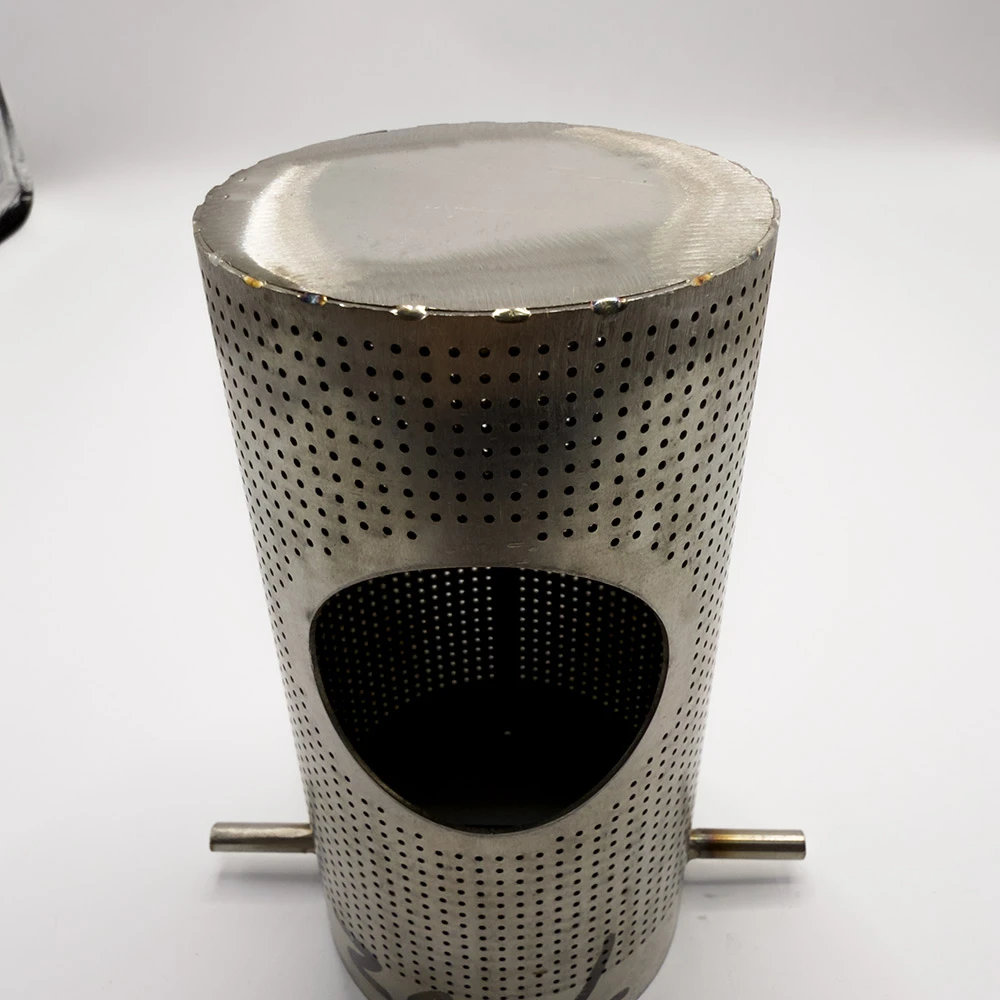

Y Type Strainer Filter

Y Type Strainer Filter utilizes the internal Filter Mesh structure to effectively intercept impurities such as rust, sand, welding slag, plastic debris, etc. when liquids and gases pass through pipelines, greatly effectively protecting the operating system or equipment (such as valves, pumps, fluids, etc.) of the subsequent pipeline system and protecting the equipment from being blocked and damaged.

Send Email PDF

Product Description

Y Strainer Filter Product Description
Product Name	Y Strainer Filter
Product Type	Integrated Filter Element for Pipeline Y-Type Strainer
Manufacturing Process	1. Perforation: Precision punching of metal sheets to form uniform holes 2. Rolling: Forming cylindrical shape 3. Welding: Seam welding to join the edges 4. Assembly: Inserted and secured in Y strainer body
Materials Alternatives	304 / 316 / 316L Stainless Steel Aluminum Nickel Copper etcs

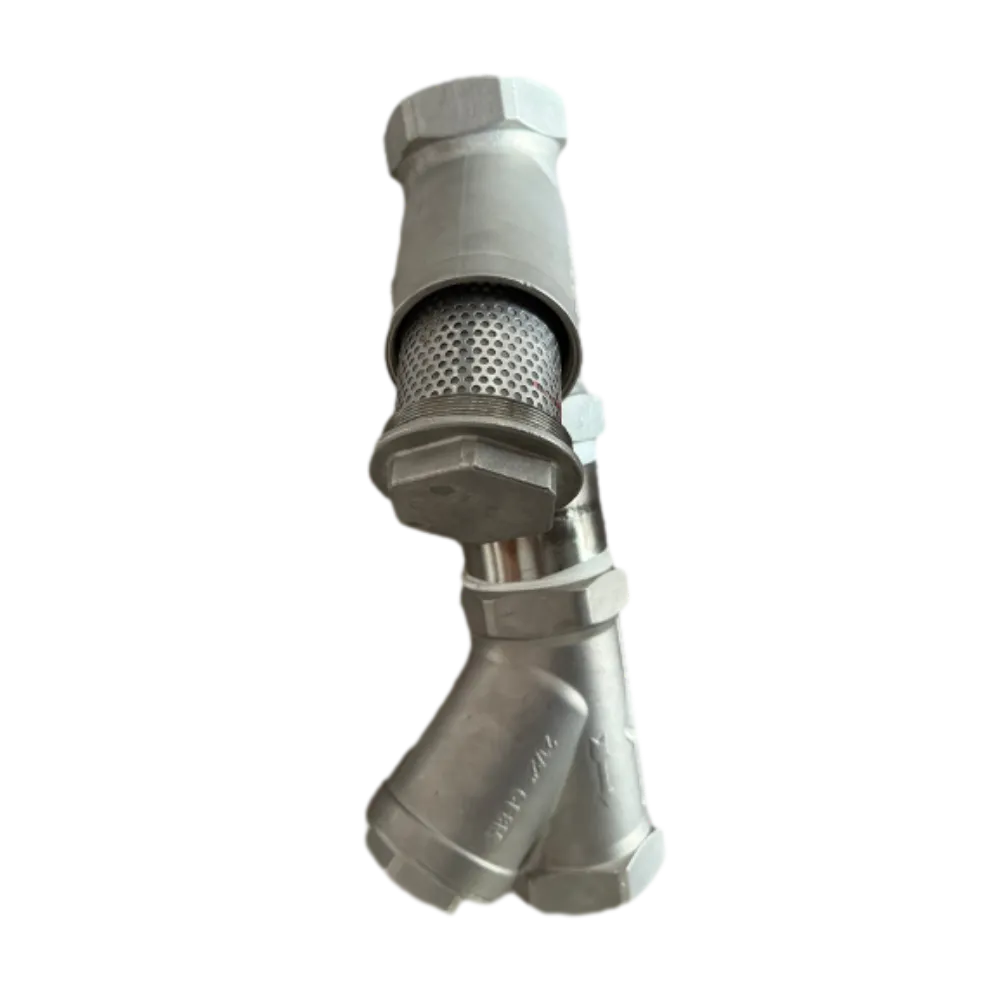

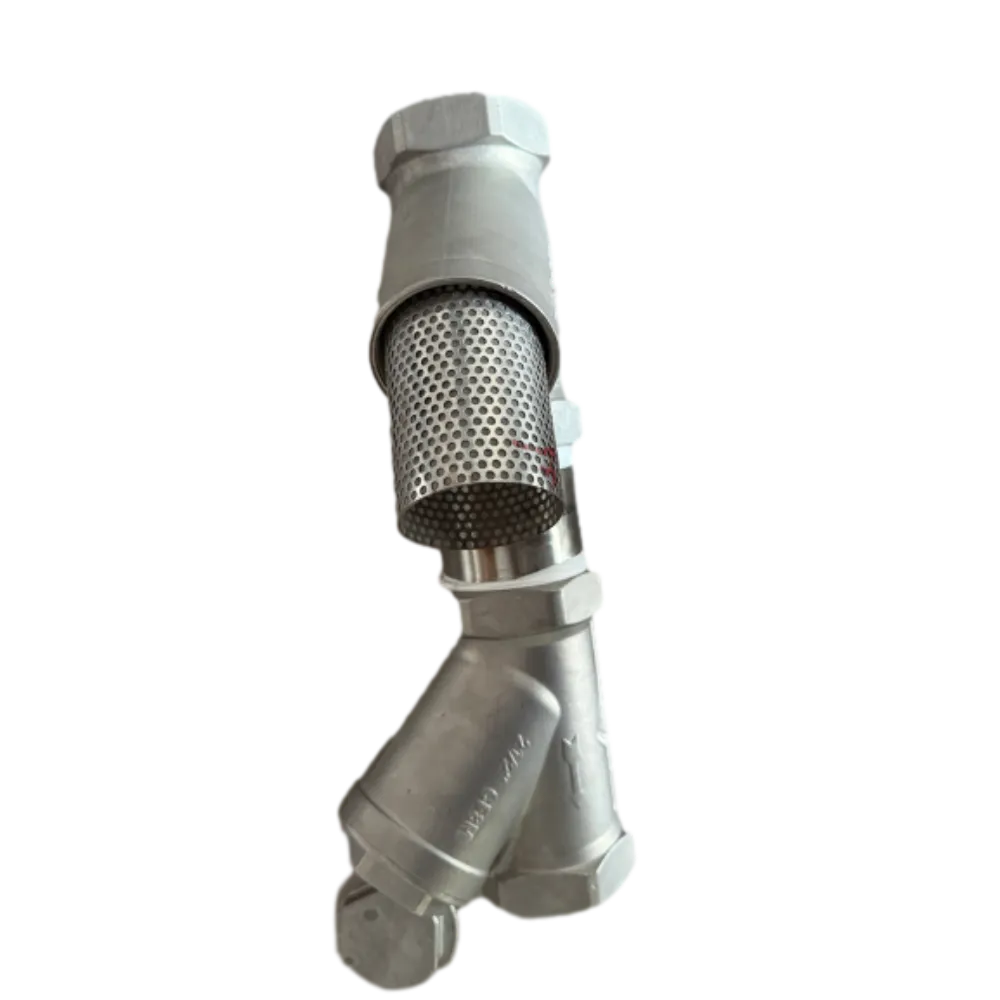

Structure Type	Cylinder Perforated Metal Tube with Fine Filter Mesh and Y Strainer
Filtration Accuracy	Depends on Weave Wire Mesh Size, Smallest Size: 1μm (customizable based on hole diameter and pattern)
Surface Treatment	Acid Pickling Electrolytic Polishing (for stainless steel) Zinc Coating (for carbon steel)
Operating Temperature	-100℃ to 600℃ (depending on material)
Pressure Resistance	Up to 30MPa (depending on wall thickness and mesh structure)
Cleaning Methods	Backwashing Ultrasonic Cleaning Chemical Soaking High-Pressure Air or Water
Connection Method	Inserted inside Y Strainer Threaded / Clamped / Flanged according to housing design
Applicable Fluids	Water, Oil, Gas, Steam, Chemical Fluids
Application Fields	Petrochemical Water Treatment Food and Beverage Pharmaceutical Machinery Protection HVAC Systems
Product Advantages	1. High mechanical strength 2. Washable and reusable 3. Corrosion and high-temperature resistance 4. Easy replacement and maintenance

Ferrules and finishes

Through the combination of internal perforated metal and weave wire mesh, solid matter can be effectively filtered while ensuring that the filter structure will not deform, thereby greatly improving the smooth flow of fluids, ensuring the stability of the system, and extending the service life of the equipment.

Industrial Filtration System

Y-Type Strainer Filters are an essential component in industrial filtration, mainly used to remove solid impurities from liquids, gases and steam. These strainers are commonly installed in pipelines, thereby effectively protecting pumps, valves, fluids and other key components from clogging and damage by particles and debris.

Strong Structure

Y Type Strainer Filter has a strong structure and is made of corrosion-resistant raw materials, which is very suitable for high-standard applications in chemical processing, oil and gas, water treatment, power generation and food industries. Y Type Strainer can reduce maintenance costs and is very convenient for maintenance and cleaning of the Y Type
