Temporary Strainer Filter Mesh

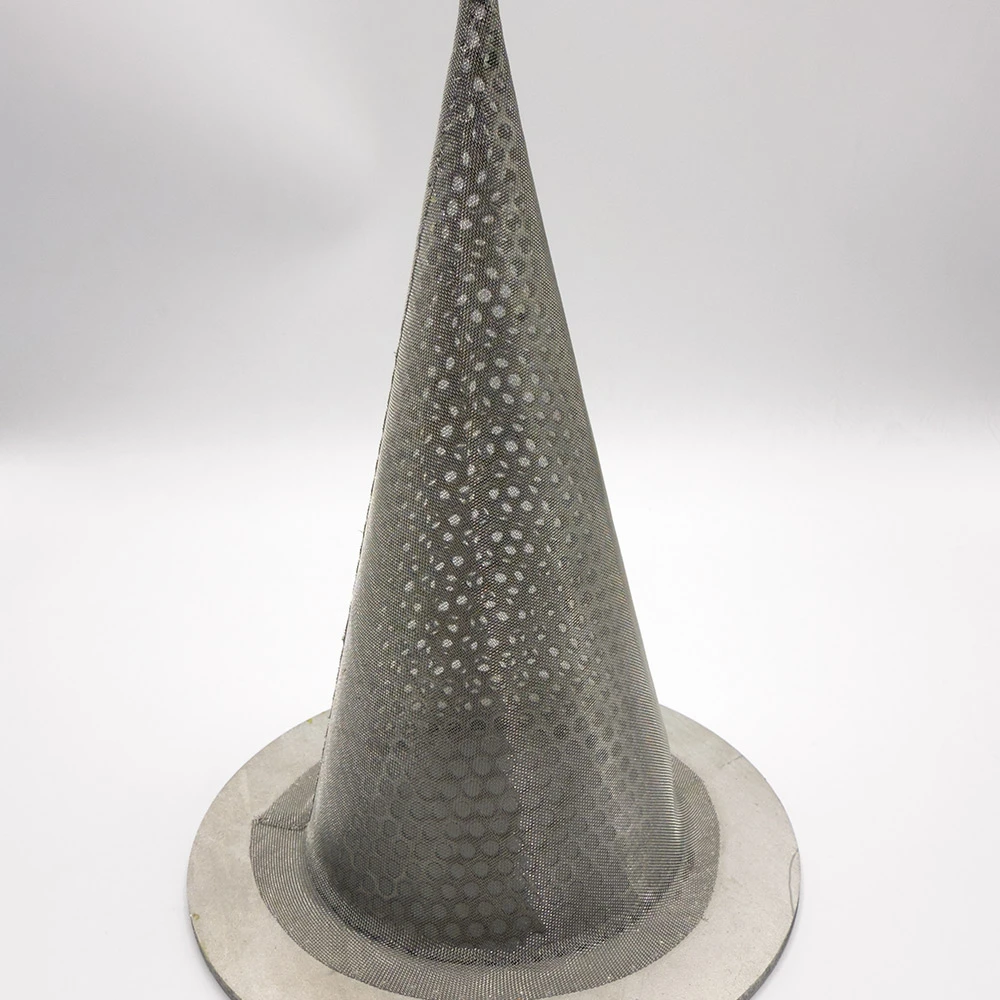

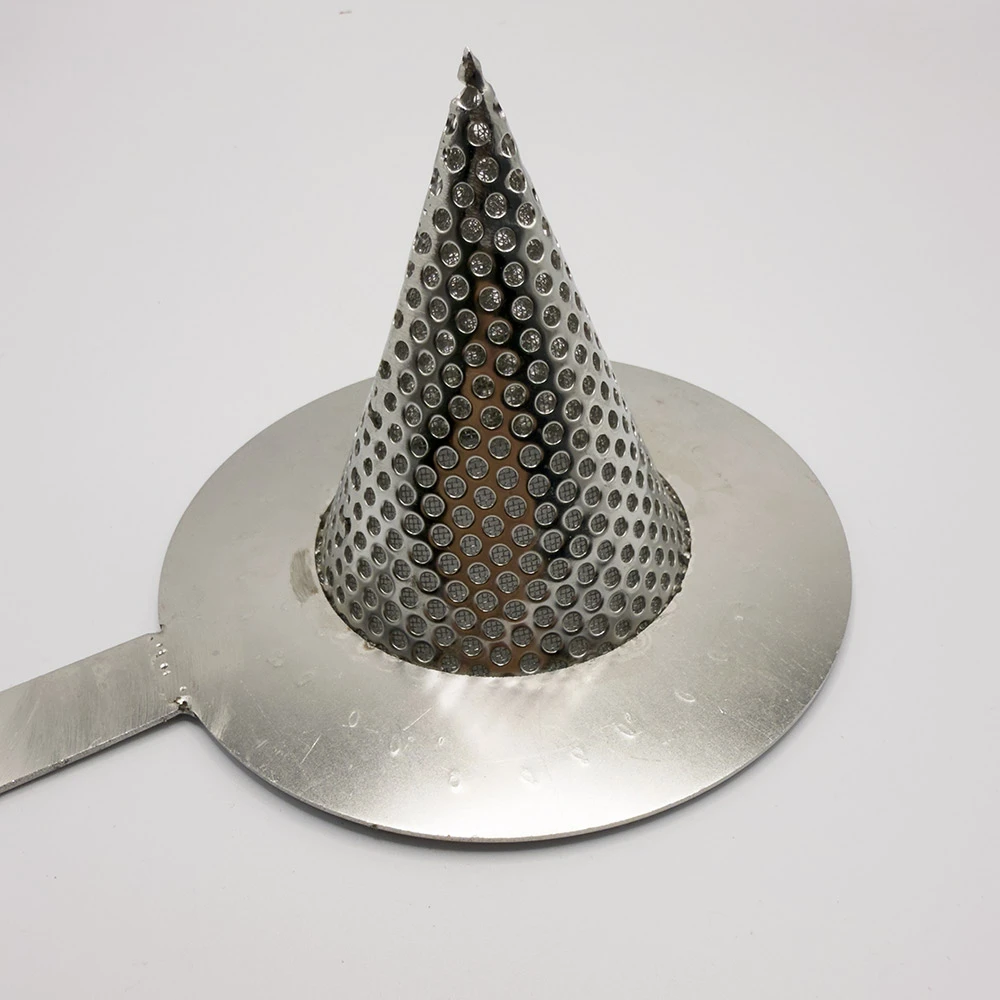

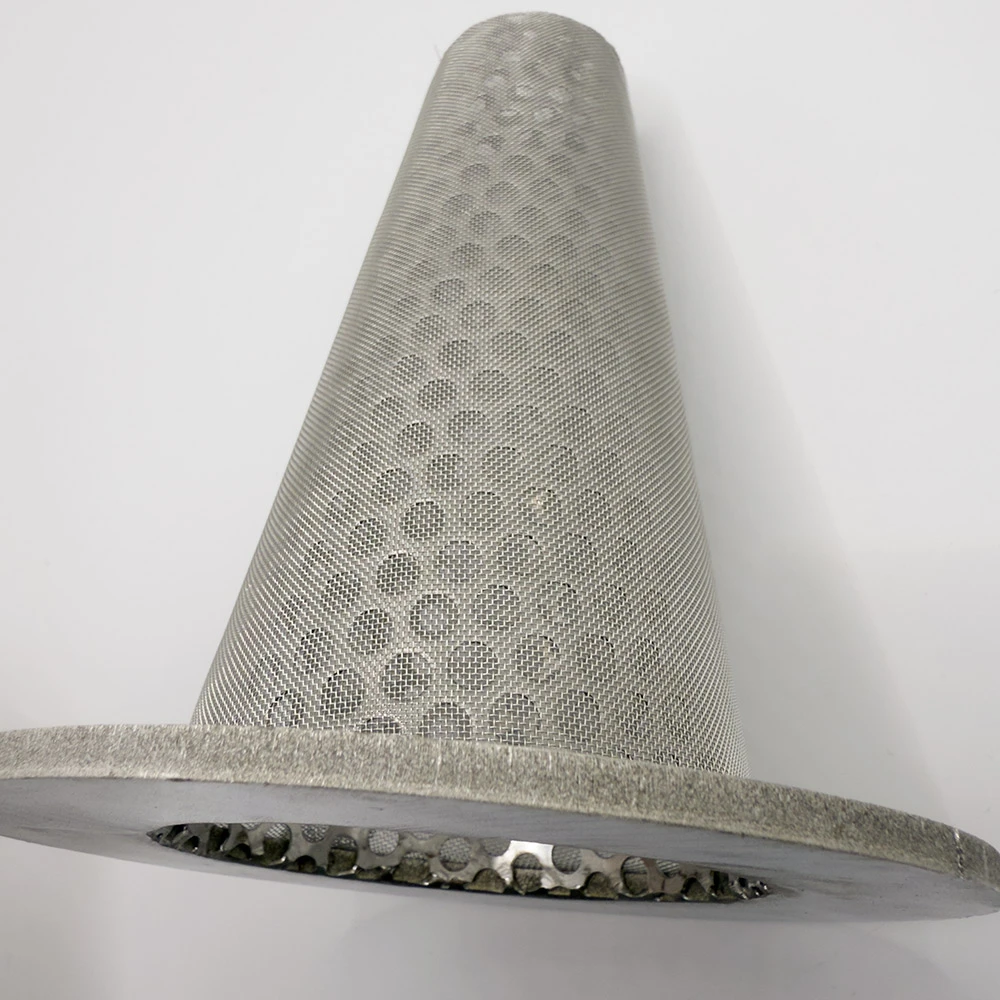

Shape: Cone filter, outer layer is perforated metal, inner layer is woven wire mesh
texture of material: SS304/316
Bottom Flange: Circular Flange, enhances stability and can be installed in pipelines
Filtering mechanism: Perforated metal provides support, while woven wire mesh ensures filtering

Send Email Download

Product Description

Items	Description
Product Name	Temporary Strainer Filter Mesh
Material	Stainless Steel 304/316, Carbon Steel (Optional)
Structure	Cone-shaped strainer with perforated sheet and woven wire mesh lining
Filtration Accuracy	10μm - 5000μm (Based on mesh size)
Dimensions	Customizable according to pipeline size
Thickness	0.5mm - 10mm (Perforated sheet); 0.1mm - 0.5mm (Woven Wire mesh)
Hole Type	Round perforations with Woven wire mesh liner
Open Area Ratio	30% - 60% (Depending on perforation pattern)
Connection Type	Flanged, Welded, or Clamped
Operating Temperature	-50°C to 500°C
Corrosion Resistance	High resistance to rust and chemical exposure
Applicable Media	Water, Oil, Gas, Chemicals, Steam
Application Industries	Oil & Gas, Chemical Processing, Water Treatment, Power Generation, Food & Beverage
Features	High-strength, reusable, easy installation, efficient filtration, corrosion-resistant
Customization Options	Size, material, perforation pattern, mesh type, flange design
Packaging	Wooden cases, Carton boxes, or as per customer requirements

Temporary Strainer Filter Mesh Description

Temporary Strainer Filter Mesh is a conical filtering device primarily designed to remove debris and ineffective impurity particles from fluids during system start-up or maintenance to protect pumps, valves, and other critical equipment.

Construction and Pipeline Maintenance

Temporary strainer filter mesh is commonly used in construction and pipeline maintenance to protect temporary fluid systems from debris and particulates during installation or repair work. It is typically installed at the beginning of a pipeline or pump system to prevent foreign materials from damaging sensitive equipment. These filters are easy to install and remove, providing quick, efficient protection in water management, oil and gas construction, and other infrastructure projects where fluid systems need to be safeguarded temporarily.

Marine and Offshore Operations

In marine and offshore operations, temporary strainer filter meshes are used to protect equipment from seawater contaminants during the initial stages of system commissioning or maintenance. They are designed to temporarily filter out particles such as sand, debris, and organic matter that may cause damage to pumps, engines, or cooling systems. Due to their easy-to-clean and replaceable nature, these filters provide a cost-effective solution in offshore drilling rigs, vessels, and other marine environments where quick deployment and removal are essential.
