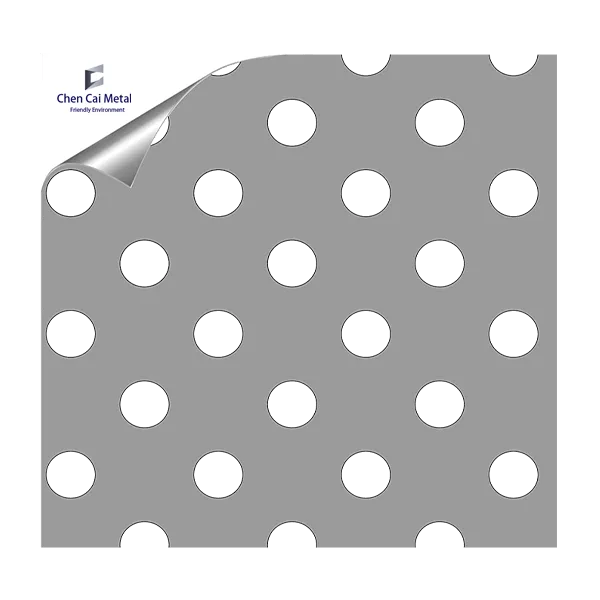

Round Staggered 45° Perforated Sheet

Round Staggered 45 ° Perforated Sheet is a type of sheet that uses staged arrangement of hole patterns. Its unique 45 ° oblique hole pattern ensures aesthetic design and structural strength, while enhancing the flexibility and visual layering of the sheet. Compared to round one perforated metal sheet, staged direction better disperses dynamic loads and high compression scenarios.

Send Email Download

Product Description

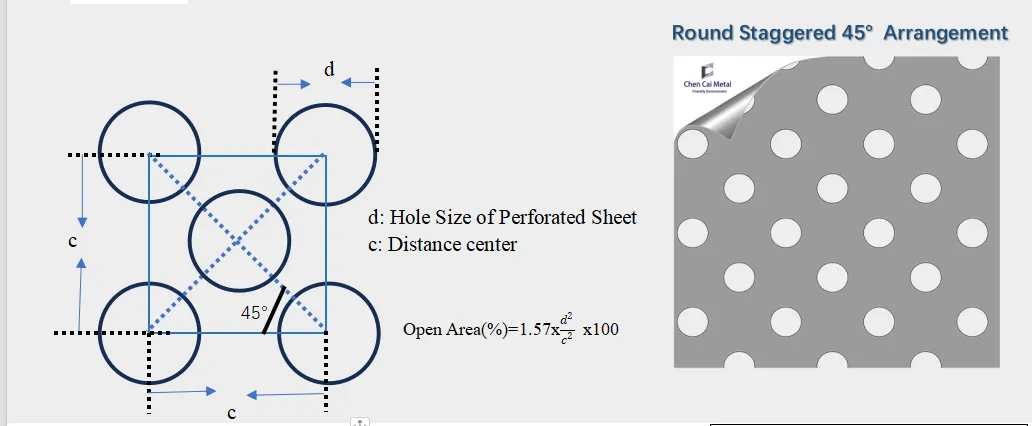

d (mm)	c (mm)	Open Area (%)
0.8	2.5	16.1
2	6	17.4
2	7.5	11.2
2	8	9.8
2.5	8	15.3
3	8	22.1
3	12	9.8
3	14	7.2
3	27	1.9
3.2	8	25.1
3.6	8	31.8
4	8	39.3
4	12	17.4
4	45	1.2
5	9	48.5
5	12	27.3
5	14	20
5	20	9.8

d (mm)	c (mm)	Open Area (%)
5	25	6.3
5	28	5.0
5	30	4.4
6	10	56.5
6	16	22.1
6	20	14.1
6	30	6.3
6.3	30	6.9
7	14	39.3
8	18	31.0
8	30	11.2
10	27	21.5
10	28	20.0
10	30	17.4
10	45	7.8
12	27	31.0
12	28	28.8
12	50	9.0

d (mm)	c (mm)	Open Area (%)
13	40	16.6
14	30	34.2
14	32	30.1
14	34	26.6
15	34	30.6
15	40	22.1
16	34	34.8
16	40	25.1
16	45	19.8
16	90	5.0
18	34	44.0
18	56	16.2
20	40	39.3
20	50	25.1
26	50	42.5
32	60	44.7
40	72	48.5
50	92	46.5

Round Staggered 45° Perforated Sheet Description

The Round Staggered 45 ° Perforated Panel has mechanical performance advantages, and the Staggered hole type has dispersed compressive strength, making it more suitable for dynamic environments. The second advantage is the three-dimensional prominent feeling, with a 45 ° arrangement method forming a visual interlocking effect, enhancing the aesthetics of decoration, suitable for modern architecture and design, and achieving more uniform ventilation and light transmission.

Grading and Sifting in Food Processing

Round staggered 45° perforated sheets are commonly used in grading and sifting applications in the food processing industry. The staggered pattern ensures efficient separation of particles while maintaining a high flow rate of materials such as grains, powders, and other food products. These perforated sheets are typically used in vibratory separators, screening machines, and sifting equipment, where the accurate sorting of products by size is essential. The durable stainless steel construction ensures resistance to corrosion and wear, providing reliable performance in food manufacturing environments.

Industrial Filtration and Separation

In industrial filtration and separation systems, round staggered 45° perforated sheets are widely used to remove contaminants from liquids and gases. Their unique staggered hole pattern improves filtration efficiency by providing a more consistent flow, reducing clogging and allowing for better material separation. These perforated sheets are used in chemical processing plants, water treatment facilities, and oil refineries, where reliable and efficient filtration is crucial to maintaining system performance. The robust design makes them suitable for handling harsh chemicals, high temperatures, and other demanding conditions.
