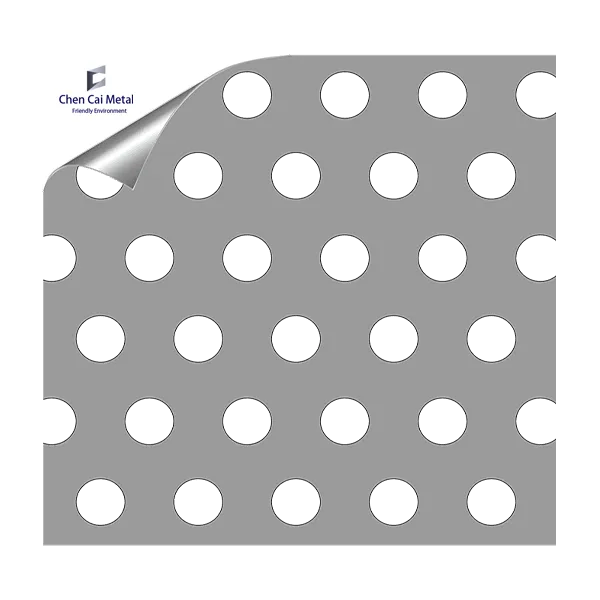

Round Staggered 60° Perforated Sheet

The Round Staggered 60 ° Perforated Sheet is a perforated panel with a high angle staggered arrangement. The holes are evenly distributed diagonally at the 60 ° Staggered position, forming a compact and effective honeycomb structure design. Compared with the Round Staggered 45 ° Perforated Panel, the 60 ° arrangement further optimizes material utilization and structural stability, and is mainly suitable for high-strength support scenarios and precision filtration industrial scenarios. The Round Staggered 60 ° Perforated Sheet also uses stainless steel, aluminum, carbon steel etc。

Send Email Download

Product Description

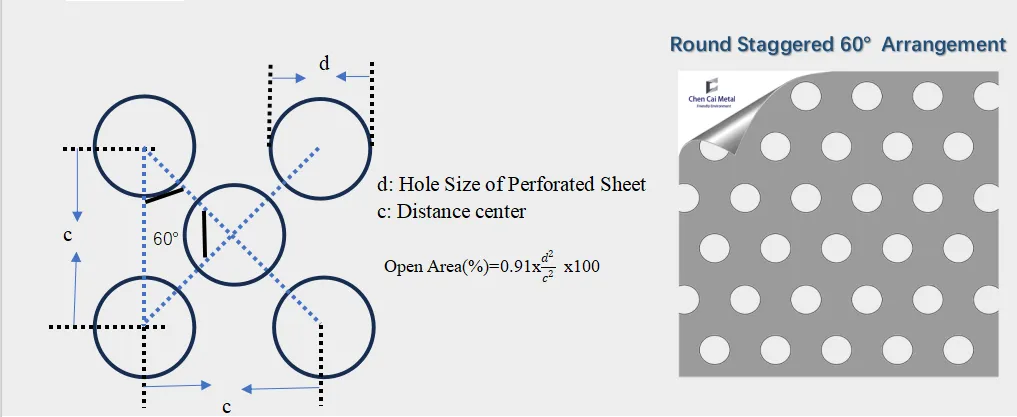

d (mm)	c (mm)	Open Area (%)
0.4	1.5	6.5
0.5	1.5	10.1
0.6	1.2	22.8
0.8	1.5	25.9
1	2	22.8
1.2	2.5	21.0
1.5	2.5	32.8
1.5	3	22.8
1.6	2.5	37.3
1.6	3	25.9
1.6	3	25.9
1.8	2.5	47.2
1.8	3	32.8
2	3	40.4
2	3.5	29.7
2	4	22.8
2	5	14.6
2	5.5	12
2.25	3.5	37.6
2.25	4	28.8
2.5	4	46.4
2.5	5	43.9
2.5	6	35.5
3	4	51.2
3	4.5	40.4
3.2	4.5	46.0
3.5	5	44.6
3.6	5	47.2

d (mm)	c (mm)	Open Area (%)
3.6	5.5	39.0
3.6	6	32.8
3.6	7	24.1
4	5	58.2
4	6	40.4
4	7	29.7
4	8	22.8
4	8	22.8
4.5	6	51.2
4.5	6.5	43.6
4.5	7	37.6
5	6	63.2
5	7	46.4
5	7	46.4
5	8	35.5
5	9	28.1
5	10	22.8
5.5	8	43.0
5.5	9	34.0
6	7	66.9
6	8	51.2
6.2	7.5	62.2
6.3	9	44.6
6.4	12	25.9
6.5	9	47.5
6.5	24	6.7
7	9	55
7	10	44.6

d (mm)	c (mm)	Open Area (%)
7	11.25	35.2
7	14	22.8
7	20	11.1
8	10	58.2
8	10.6	51.8
8	11	48.1
8	11.25	46.0
8	12	40.4
9	12	51.2
9	18	22.8
10	12	63.2
10	13	53.8
10	13.5	49.9
10	14	46.4
10	15	40.4
10	17.5	29.7
10	18	28.1
11	16	43.0
11	17	38.1
12	14	66.9
12	15	58.2
12	16	51.2
13	18	47.5
13	30	17.1
14	20	44.6
14	22	36.9
14	26	26.4
15	20	51.2

d (mm)	c (mm)	Open Area (%)
15	21	46.4
15	24	35.5
16	18	71.9
16	20	58.2
17	20	65.7
18	22	60.9
19	25.4	50.9
19.5	28	44.1
20	28	46.4
21	30	44.6
22	30	48.9
23	35	39.3
24	35	42.8
25	35	46.4
25	50	22.8
25.4	38.1	40.4
29	45	37.8
30	38	56.7
32	45	46.0
35	47	50.5
40	56	46.4
45	64	45.0
50	65	53.8
50	80	35.5
50.8	63.5	58.2
60	128	20.0
65	90	47.5

Round Staggered 60° Perforated Sheet Description

The Round Staggered 60 ° Perforated Sheet has a high-strength structure, and the 60 ° density arrangement significantly improves aesthetics and compressive strength, making it suitable for heavy industry applications. Simultaneously possessing efficient filtration and diversion functions, the honeycomb shaped pore design effectively disperses fluid and airflow pressure. The design arrangement of a 60 ° Perforated sheet can maximize material utilization, reduce material waste, and decrease overall weight.

Air Filtration and Ventilation Systems

Round staggered 60° perforated sheets are widely used in air filtration and ventilation systems to enhance airflow and provide effective filtration. The 60° staggered perforation pattern allows for better air circulation and particle separation compared to standard perforated sheets. These sheets are commonly used in HVAC systems, air diffusers, and ventilation grilles in both commercial and industrial applications. They are designed to prevent clogging, reduce airflow resistance, and ensure the smooth passage of air, while filtering out dust and other contaminants.

Soundproofing and Acoustic Panels

In soundproofing and acoustic panel applications, round staggered 60° perforated sheets are used to enhance sound absorption and reduce noise levels. The unique staggered hole configuration allows for better sound wave penetration and absorption by the material behind the perforated sheet. These perforated sheets are often incorporated into acoustic panels, ceiling tiles, and wall cladding in environments such as recording studios, theaters, and conference rooms, where noise control and sound clarity are critical. The aesthetic design also makes them a popular choice for creating modern, stylish interiors.
