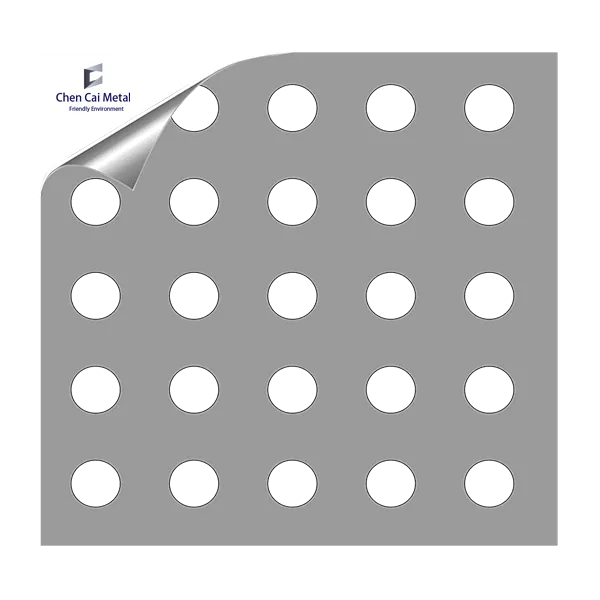

Round One Way Perforated Sheet

Round One Way Perforated Metal Sheet is a simple single directional, vertically arranged perforated metal sheet product that is highly favored by customers for its simple and regular hole design and efficient functionality. It is mainly used in the building decoration industry, industrial filtration industry, ventilation equipment industry, and more.

Send Email PDF

Product Description

10mm perforated sheet

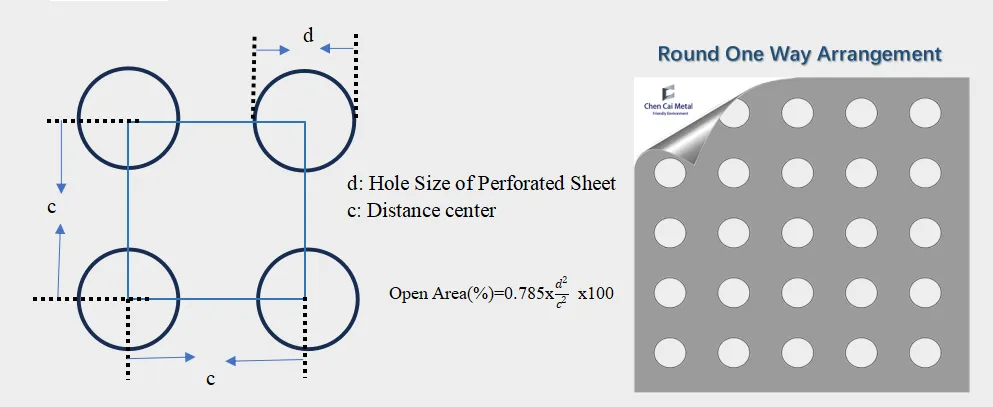

d (mm)	c (mm)	Open Area (%)
0.4	1.5	5.6
0.5	1.5	8.7
0.8	1.8	15.5
1	1.5	34.9
1	2	19.6
1.5	2.5	28.3
1.5	3	19.6
2	3	34.9
2	3.5	25.6
2	4	19.6
2.5	4	30.7
2.5	4.5	24.2
2.5	5	19.6
3	5	28.3
3	6	19.6
3	8	11
4	6	34.9
4	8	19.6
5	7	40.1
5	8	30.7
5	9	24.2
5	10	19.6
6	8	44.2
6	9	34.9
6	10	28.3
6	12	19.6
7	9	47.5
7	10	38.5
7	14	19.6

d (mm)	c (mm)	Open Area (%)
8	10	50.2
8	12	34.9
8	16	19.6
9	12	44.2
9	18	19.6
10	12	54.5
10	14	40.1
10	20	19.6
11	13	56.2
11	15	42.2
12	14	57.7
12	16	44.2
12	18	34.9
12	24	19.6
14	16	60.1
14	18	47.5
14	20	38.5
15	20	44.2
15	30	19.6
16	20	50.2
16	22	41.5
16	32	19.6
17	22	46.9
17	25	36.3
18	22	52.
18	25	40.7
18	26	37.6
19	25.4	43.9
19	28.5	34.9

d (mm)	c (mm)	Open Area (%)
20	25	50.2
20	28	40.1
20	30	34.9
20	40	19.6
22	30	42.2
22	35	31
22	44	19.6
23	31.5	41.9
25	30	54.5
25	35	40.1
25	50	19.6
25.4	31.8	50.1
25.4	38.1	34.9
30	40	44.2
30	50	28.3
30	60	19.6
32	38	55.7
32	76	13.9
35	45	47.5
35	52	35.6
38.1	50.8	44.2
38.1	57.1	35
40	50	50.2
40	55	41.5
50	60	54.5
50	70	40.1
50.8	63.5	50.2
50.8	76.2	34.9
63.5	76.2	54.5

Round One Way Perforated Sheet Description

Perforated Sheet has the characteristic of overall structural stability, and the straight arrangement enhances the load-bearing capacity of the sheet, making it suitable for fields that require durability and ventilation. Perforated Panel has diverse applications in various fields, including outdoor beautiful curtain walls, soundproof walls, sound-absorbing panels, mechanical equipment protection, etc. Moreover, this product uses environmentally friendly metal materials, which are corrosion-resistant, impact resistant, and have a long service life.

Acoustic Panels and Soundproofing

Round one way perforated sheets are commonly used in acoustic panels and soundproofing applications. The unique pattern of round holes allows sound waves to pass through and be absorbed by the material behind the perforated sheet, making it an effective solution for reducing noise levels in various environments. These sheets are used in music studios, conference rooms, and theaters, where noise control and sound clarity are essential. The aesthetic appeal of the perforated design also contributes to the modern look of the spaces while enhancing acoustic performance.

Air Filtration and Ventilation Systems

In air filtration and ventilation systems, round one way perforated sheets are used as components in air diffusers, vent covers, and grilles. The perforations allow for optimal airflow while preventing larger particles and debris from entering ventilation systems. These sheets are commonly found in HVAC systems, cleanrooms, and industrial air filtration units, where efficient airflow and filtration are critical. The durability and corrosion resistance of the material ensure long-lasting performance, even in demanding industrial or commercial environments.
