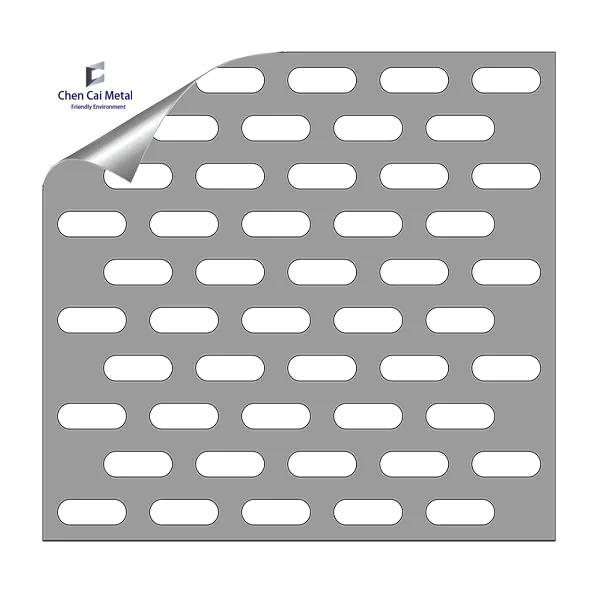

Slot 45° Perforated Sheet

The Staggered 45 ° Perforated Sheet features elongated holes with an innovative staggered orientation. The holes are evenly distributed at a 45 ° angle, providing functionality and dynamic aesthetics. Compared to Slot one way perforated metal sheet， This slanted arrangement can effectively disperse the resistance to pressure, thereby enhancing the deformation resistance and flexibility of the board, making it suitable for industrial environments that require bearing multiple directions.

Send Email Download

Product Description

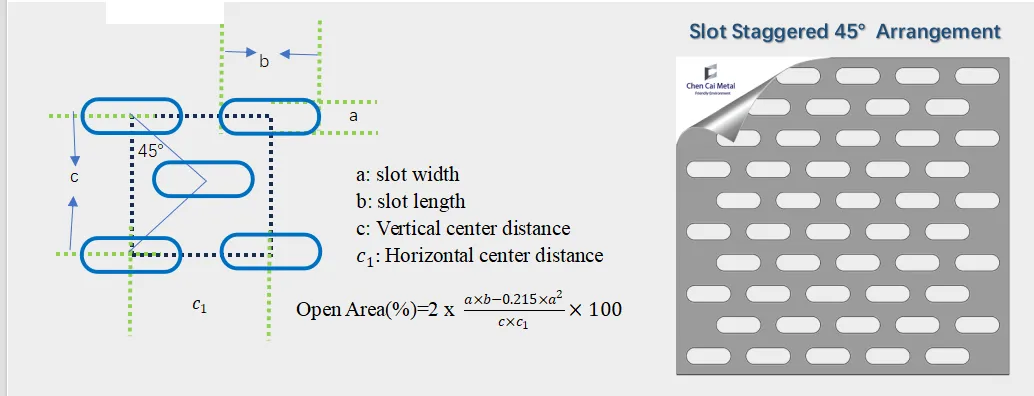

a×b (mm)	c× (mm)	Open Area (%)
8 x 40	44 x 22	31.6
8 x 45	44 x 22	35.8
8 x 56	54 x 54	14.9

a×b (mm)	c× (mm)	Open Area (%)
10 x 25	26 x 26	33.8
10 x 30	25 x 25	44.6
10 x 30	30 x 30	30.9

a×b (mm)	c× (mm)	Open Area (%)
10 x 56	54 x 27	36.9
12 x 39	38 x 38	30.3
16 x 60	80 x 50	22.6
20 x 45	42 x 42	46.1

Slot 45° Perforated Sheet Description

Slot Staggered 45 ° Perforated Sheet has multiple response force dispersion, and the 45 ° oblique arrangement provides more uniform force distribution, thereby improving fluid control. The oblique long holes can guide airflow and liquid to form vortex flow, thereby improving mixing or filtration efficiency. Slot Staggered 45 ° Perforated Sheet has a unique visual effect, with diagonal stripes creating dynamic light and shadow effects, enhancing the modern feel of architectural decoration.

Filtration and Separation in Industrial Processes

Slot 45° perforated sheets are commonly used in filtration and separation processes within industries such as chemical processing, oil and gas, and water treatment. The 45° slotted pattern provides enhanced filtration efficiency, allowing for smooth fluid flow while trapping particles and debris. These perforated sheets are typically used in filter housings, screening systems, and separators, where the primary goal is to separate materials based on size and prevent clogging in high-flow environments. Their strong, durable design ensures long-term performance in harsh industrial conditions.

Architectural and Aesthetic Applications

In architectural design and aesthetic applications, Slot 45° perforated sheets are used in creating decorative facades, ceiling panels, and wall cladding. The unique 45° slotted design offers a modern and sleek appearance while allowing for both functional and aesthetic purposes. These perforated sheets can provide sun shading, privacy screens, and ventilation, making them ideal for use in office buildings, commercial structures, and urban landscaping projects. The versatility of the perforated pattern allows architects to combine visual appeal with practical solutions for airflow and light control.
