Slot One Round Staggered

Send Email Download

Product Description

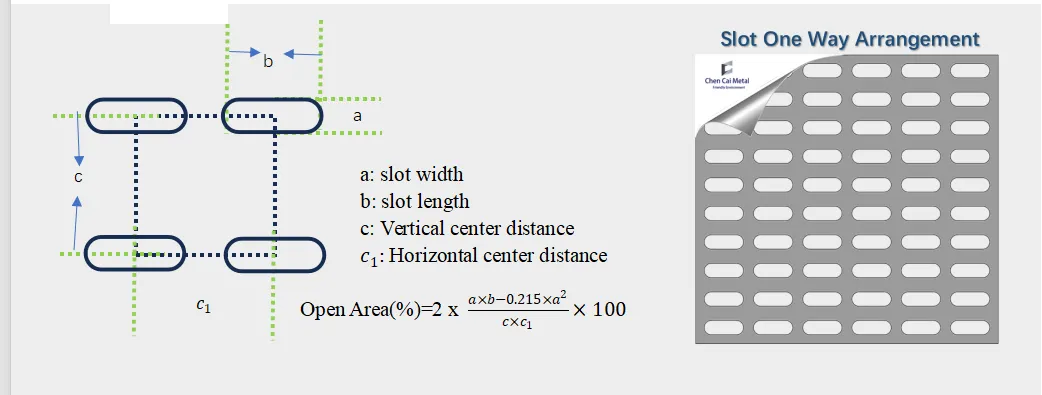

a×b (mm)	c× (mm)	Open Area (%)
2 x 20	8 x 26	18.8
3 x 25	8 x 29	31.5
4 x 12	8 x 16	34.8
4 x 25	16 x 50	12.1
4 x 28	10 x 34	31.9
4 x 57	18 x 68	18.3
5 x 25	10 x 29	41.3
5 x 25	16 x 34	22.0
5 x 26	7 x 30	53.6
5 x 30	10 x 34	42.5
5 x 34	16 x 39	24.8

a×b (mm)	c× (mm)	Open Area (%)
5 x 45.5	20 x 70	14.3
6 x 35	24 x 42	20.1
6 x 38	11 x 52	38.5
6 x 50	24 x 58	21.0
7 x 25	18 x 35	26.1
8 x 40	14 x 92	23.8
10 x 20	40 x 30	14.9
10 x 40	16 x 92	25.7
10 x 60	50 x 68	17.0
12 x 35	22 x 45	39.3
12 x 40	18 x 92	27.1

a×b (mm)	c× (mm)	OpenArea (%)
12 x 65	20 x 146	25.7
16 x 28	24 x 76	21.5
16 x 32	24 x 80	23.8
16 x 36	48 x 44	24.7
16 x 60	28 x 150	21.5
20 x 40	28 x 50	51.0
20 x 40	28 x 48	53.1
24 x 50	36 x 58	51.5
24 x 74	38 x 84	51.8
30 x 60	70 x 250	9.2
40 x 60	100 x 72	28.6
40 x 100	80 x 375	12.2

Slot One Round Staggered Description

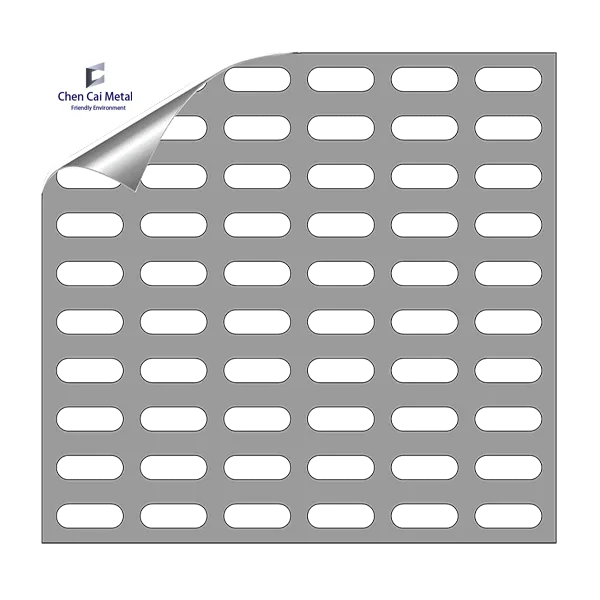

Slot One Way Perforated Sheet is a product that uses a single row straight strip hole design. Its unique feature is that the strip hole design ensures the structural strength of the sheet while providing effective open area and more efficient pass rate. Compared to Round perforated panels, slot design is particularly suitable for industrial applications that require directional ventilation, linear filtration, or material sorting. This product achieves high efficiency in terms of pass through rate, air permeability, and liquid flow rate by using high-quality metal materials. It also features directional guidance, and the long holes arranged in a straight row can effectively control the direction of material flow. It is particularly suitable for use in sorting and conveying systems.

Screening and Separation in Mining and Recycling

Slot one round staggered perforated sheets are ideal for screening and separation applications in industries such as mining, recycling, and material processing. The staggered perforation pattern combined with slot openings allows for efficient separation of different materials by size, while preventing clogging during high-flow operations. These perforated sheets are commonly used in vibrating screens, sieving machines, and separation equipment, helping to sort minerals, metals, and waste products. Their durable construction ensures resistance to abrasion, making them ideal for harsh environments.

Water Filtration and Treatment

In water filtration and treatment applications, slot one round staggered perforated sheets are used in filtering systems to efficiently remove debris, particles, and contaminants from water. The slot design helps increase the filtration surface area, improving the flow of water while maintaining optimal filtration performance. These perforated sheets are commonly used in industrial water treatment plants, aquaculture systems, and irrigation systems, where clean water is critical. Their corrosion resistance and strength make them an excellent choice for use in harsh water conditions, ensuring longevity and effective filtration.
