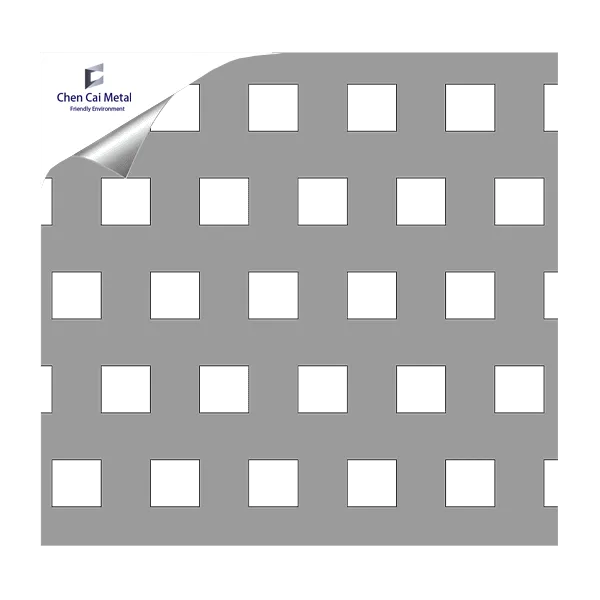

Staggered Square Perforated Sheet

Square Staggered Perforated Sheet is a product that is processed in a staggered manner. With its unique structural design and efficient functionality, it is mainly used in various industries such as decorative architecture, industrial filtration, ventilation, and transparency. The Staggered Square layout enhances the overall aesthetics while meeting different requirements such as ventilation, transparency, and drainage performance.

Send Email Download

Product Description

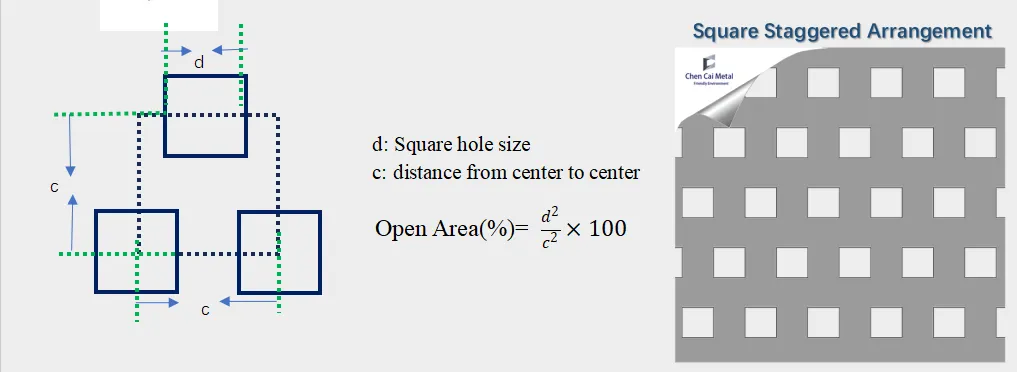

d (mm)	c (mm)	Open Area (%)
3	6	25
4	8	25
5	10	25
6.3	12.5	25
8	12	44.5

d (mm)	c (mm)	Open Area (%)
8	14	33
10	16	39
11	24	21
12	18	44
13	21	51

d (mm)	c (mm)	Open Area (%)
18	24	56
20	28	50.5
25	36	48
30	40	56
31.5	40	62
35	45	60

Staggered Square Perforated Sheet Description

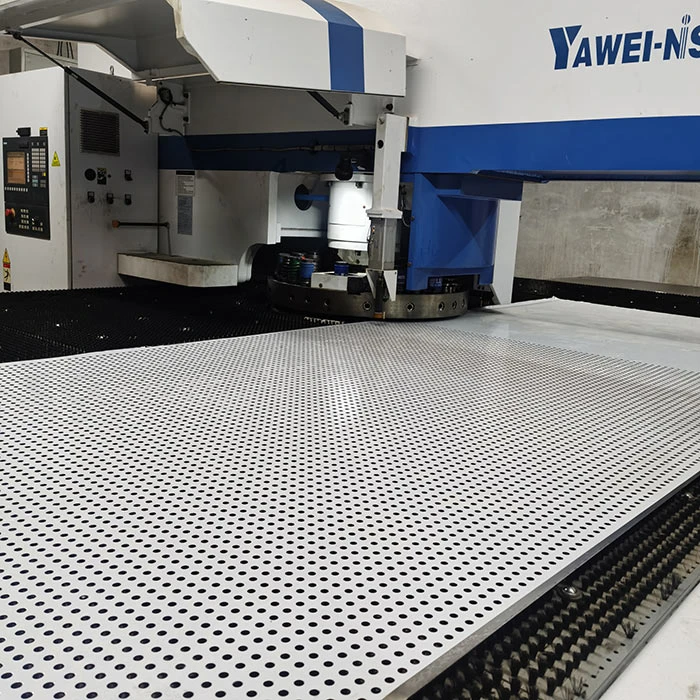

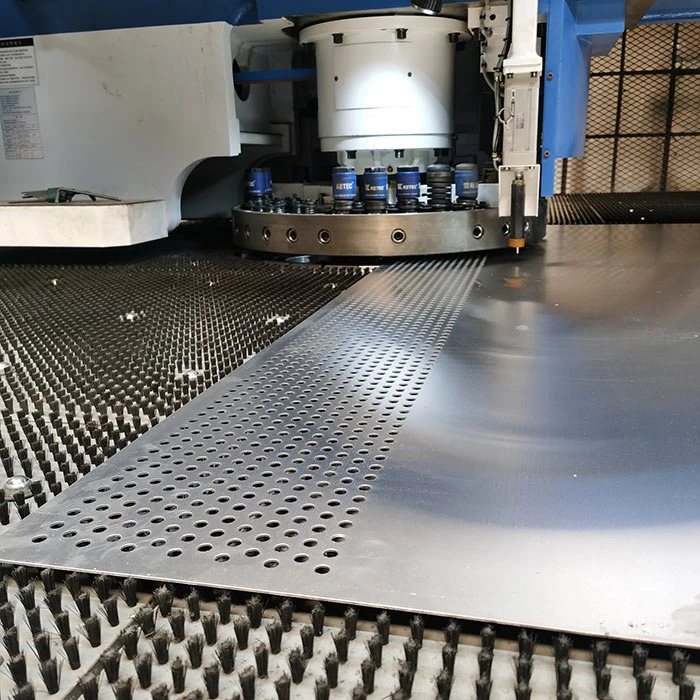

Perforated panel metal uses high-quality raw materials such as aluminum, stainless steel, carbon steel, etc., and uses precision punching machines CNC to ensure even hole arrangement, accurate data, fine craftsmanship, and smooth, neat, and beautiful appearance. The Staggered method has improved the overall stability of the board, with good load-bearing capacity and durability. Perforated metal sheet achieves stable structure and functionality, and is widely used in fa ç ade, soundproof walls and sound-absorbing panels, mechanical equipment protection ventilation, and industrial screening and filtration. By using environmentally friendly raw materials such as metal, it has good corrosion resistance and impact resistance, and can be used in complex environments.

Industrial Screening and Separation

Staggered square perforated sheets are widely used in industrial screening and separation systems for industries such as mining, recycling, and material processing. The staggered square pattern enhances the screening efficiency, allowing for consistent particle separation while reducing the risk of clogging. These perforated sheets are typically used in vibrating screens, sifting machines, and separation equipment, where materials such as metals, minerals, and waste need to be sorted accurately based on size. Their durability and abrasion resistance make them well-suited for harsh industrial environments.

Ventilation and Air Filtration Systems

In ventilation and air filtration applications, staggered square perforated sheets are used to improve airflow and filtration efficiency. The staggered pattern provides a uniform airflow while allowing contaminants and dust particles to be trapped and filtered. These perforated sheets are commonly used in air diffusers, ventilation grilles, and air conditioning units in both commercial and industrial settings. Their ability to provide both aesthetic appeal and functional performance in managing air distribution and filtration makes them a popular choice in HVAC systems, cleanrooms, and industrial ventilation systems.
