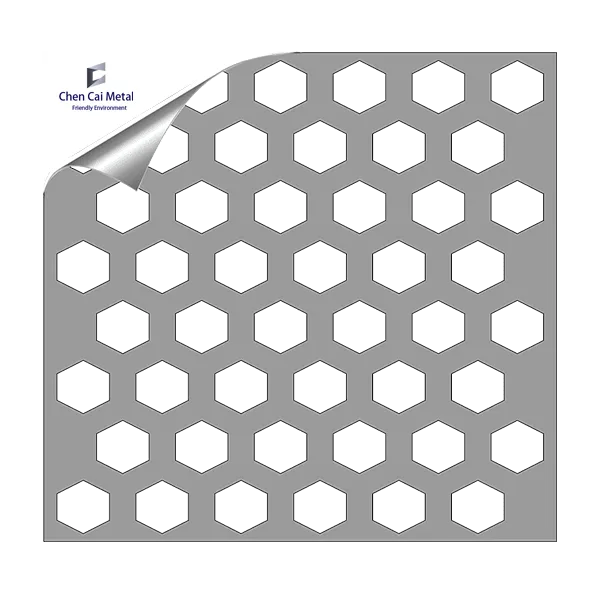

Hexagon 60° Perforated Sheet

Hexagon Staggered 60 ° Perforated Sheet is a perforated metal sheet with hexagonal holes arranged in a staggered 60 ° pattern. With its unique geometric design and efficient functionality, it is mainly used in decorative architecture, ceiling decoration, fa ç ade, ventilation equipment, and more. The hexagonal hole layout enhances transparency and breathability, as well as overall stability, making it a high-performance perforated sheet metal panel.

Send Email Download

Product Description

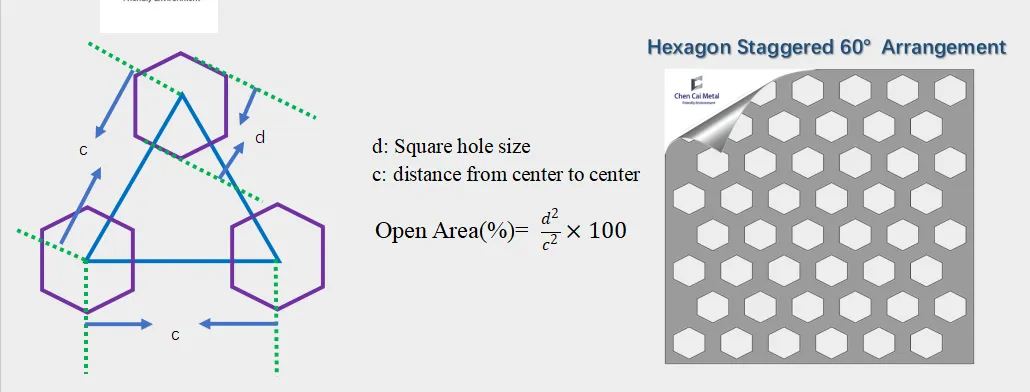

d (mm)	c (mm)	Open Area (%)
8	10.5	58.1
8	12	44.4
10	15	44.4
10	18	30.9
10	28	12.8
12	16	56.3

d (mm)	c (mm)	Open Area (%)
14	21	44.4
16	21	58.1
16	34	22.1
18	25	51.8
20	26	59.2
20	28	51.0

d (mm)	c (mm)	Open Area (%)
22	30	53.8
25	35	51.0
30	44	46.5
32	40	64.0
35	48	53.2
36	48	56.3
50	65	59.2

Hexagon 60° Perforated Sheet Description

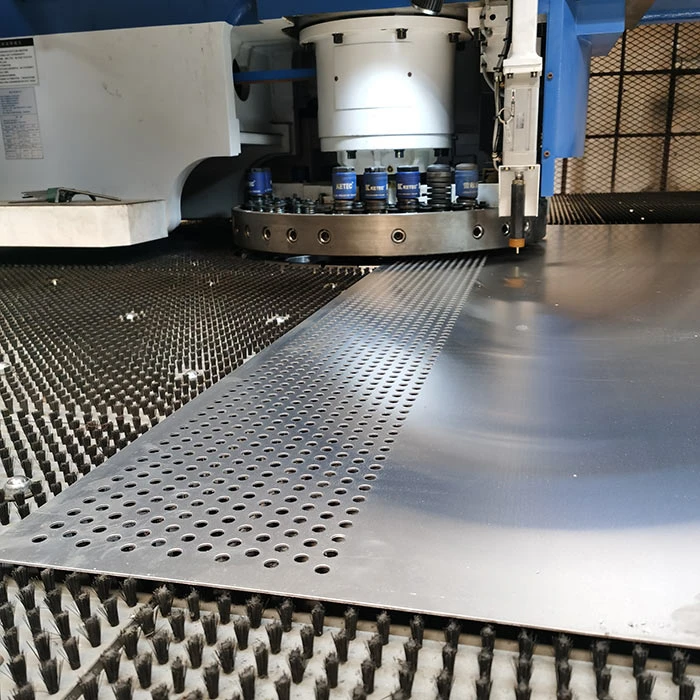

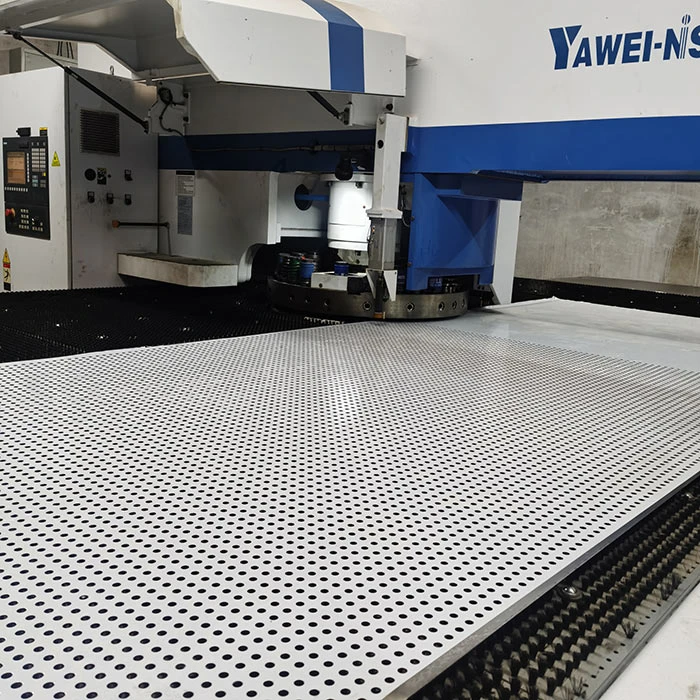

The Hexagon Staggered 60 ° Perforated Sheet is made of high-quality metal sheets (stainless steel, aluminum, carbon steel, etc.) and uses precision punching machines CNC to ensure even hole arrangement and beautiful design. The 60 ° staggered pattern optimizes the overall force distribution, improves the overall load-bearing capacity of the board, and enhances its environmental performance.

Industrial Filtration and Separation

Hexagon 60° perforated sheets are commonly used in industrial filtration and separation systems, where their unique perforation pattern provides high filtration efficiency. The 60° hexagonal perforation allows for a uniform material flow while ensuring that contaminants are effectively removed. These sheets are typically used in vibrating screens, separators, and filter systems in industries such as mining, recycling, and chemical processing. Their durable construction and ability to handle high-flow applications make them ideal for particle separation and material sorting in harsh conditions.

Architectural and Decorative Applications

In architectural design and decorative applications, hexagon 60° perforated sheets are used for facade panels, ceiling tiles, and wall cladding. The hexagonal pattern not only enhances the aesthetic appeal of buildings but also allows for optimal ventilation and light diffusion. These perforated sheets are popular in modern architecture for sun shading, privacy screens, and decorative panels. The structural integrity of the material ensures it can withstand external weather conditions, making it ideal for exterior facades and outdoor structures while maintaining its visual appeal and functionality.
