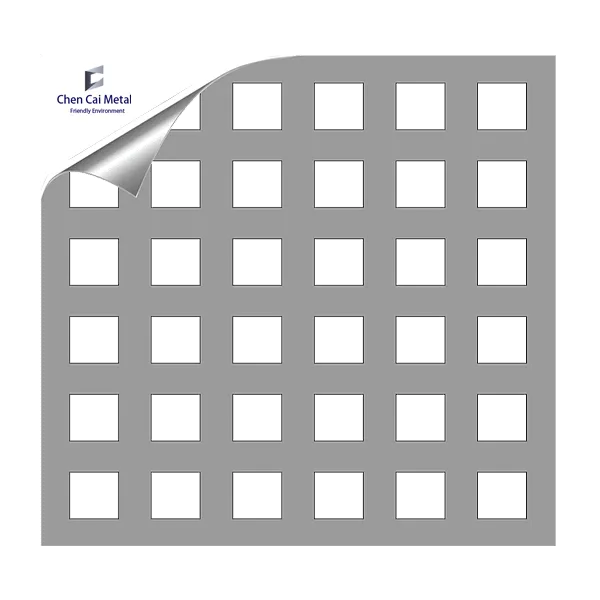

Square One Way Perforated Sheet

The Square One Way Perforated Sheet is made of square holes in a single row direction, with stable structural performance and a highly permeable metal mesh. This square one way perforated panel has a unique square uniform arrangement, suitable for various commercial and industrial fields. The excellent performance and durability of this product can adapt to harsh environments due to its strong impact resistance and corrosion resistance. Thus, the square design that is both aesthetically pleasing and practical, with a regular pattern, not only enhances the functionality of the overall perforated sheet, but also adds an industrial minimalist style to modern style design.

Send Email Download

Product Description

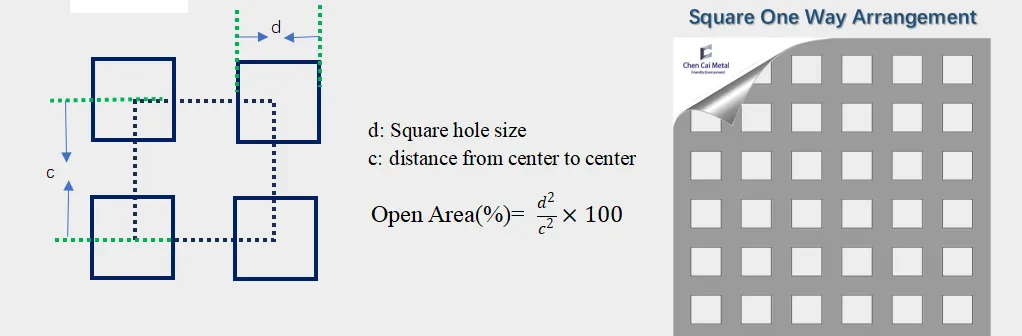

d (mm)	c (mm)	Open Area (%)
2	4	25.07
3	5	36.0
3	6	25.0
4	7	32.7
4	8	25.0
5	7	51.0
5	7.5	44.4
5	8	39.1
5	10	25.0
5	14	12.8
5	15	11.1
5	16	9.8
5	20	6.3
5.5	8	47.3
6	7	73.5
6	9	44.4
6	10	36.0
8	10	64.0
8	12	44.4
8	14	32.7
8	15	28.4
8	20	16.0
8	24	11.1
8	28	8.2
8	29	7.6
9	13.5	44.4
10	12	69.4
10	13	59.2
10	13.5	54.9
10	14	51.0
10	15	44.4

d (mm)	c (mm)	Open Area (%)
10	24	17.4
10	26	14.8
10	27	13.7
10	34	8.7
11	15	53.8
12	17	49.8
12	18	44.4
12	30	16.0
13	18	52.2
15	20	56.3
15	21	51.0
15	23	42.5
15	24	39.1
15	32	22.0
15	45	11.1
16	20	64.0
16	25	41.0
18	24	56.3
18	38	22.4
19	26	53.4
20	26	59.2
20	28	51.0
20	30	44.4
20	32	39.1
20	40	25.0
20	50	16.0
20	52	14.8
22	28	61.7
22	30	53.8

d (mm)	c (mm)	Open Area (%)
22.4	38	64.0
25	28.5	76.9
25	34	54.1
25	35	51.0
25	26	48.2
25	45	30.9
25	50	25.0
25	56	19.9
25	64	15.3
25	68	13.5
25	70	12.8
30	35	73.5
30	36	69.4
30	40	56.3
33	60	30.3
35	40	76.6
35	60	34.0
35	90	15.1
36	102	12.5
39	49	63.3
40	44	82.6
40	50	64.0
40	55	52.9
40	72	30.9
43	50	74.0
44.5	52	73.2
45	78	33.3
50	65	59.2
50	92	29.5

Square One Way Perforated Sheet Description

Square One Way perforated metal sheet is a multifunctional sheet suitable for fencing balustrades, sound insulation, noise reduction, ventilation equipment, and more. It can be made to different specifications according to the different requirements of customers.

Grading and Screening in Mining and Recycling

Square one way perforated sheets are commonly used in grading and screening applications in industries such as mining, recycling, and aggregate processing. The square perforation pattern allows for efficient material separation based on size, while the one-way orientation ensures that particles flow in the desired direction without blocking or clogging the screen. These perforated sheets are used in vibrating screens, separators, and sifting machines, where consistent material flow and precise sorting are required. The high-strength design ensures durability, even in harsh industrial environments.

Ventilation and Air Distribution Systems

In ventilation and air distribution systems, square one way perforated sheets are used in air diffusers, grilles, and louvers to allow efficient airflow while maintaining optimal filtration. The square pattern provides uniform air distribution, preventing uneven airflow or excessive pressure buildup. These perforated sheets are commonly employed in HVAC systems, industrial ventilation, and air conditioning systems, ensuring proper air circulation while also offering a level of filtration to remove dust and particles. Their corrosion-resistant and high-durability properties make them suitable for both indoor and outdoor applications.
